WAIZIDA Model L EV Charging Station

Maximum Power: 3phase, 2*11KW/2*22KW, 2*48A*2*80A

Dual Output/ Socket Version/ With cable version
Functions: Commercial model/ RFID Card
Communication: Ethernet, OCPP1.6J, 4G(optional), POS(optional)

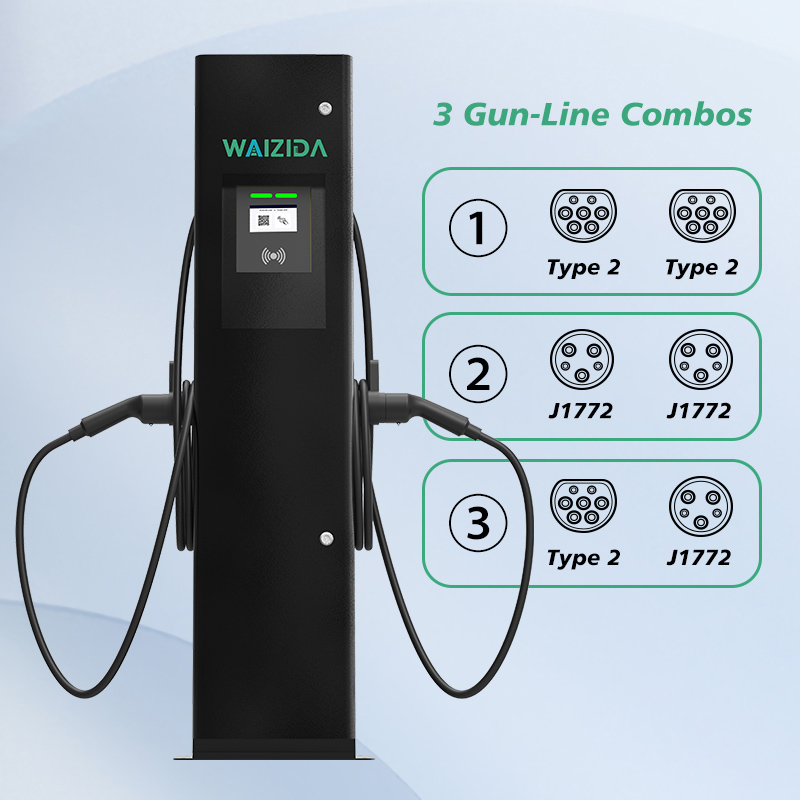

Connector: Type2 / Type1
Voltage: 400V AC+10%/ 240V+10%
Mounting Options: Pole-Mounted
Application: Indoor & outdoor
Weight: 65-80kg
ODM & OEM Available

Availability:



Inquiry Add to Basket Download

Product Advantage

Parameters

Users Manual

Product Users

FAQ

The Waizida EV charging station provides reliable, smart, and efficient charging for EV owners. With flexible power options and advanced intelligent features,
it is suitable for both residential and commercial charging applications.

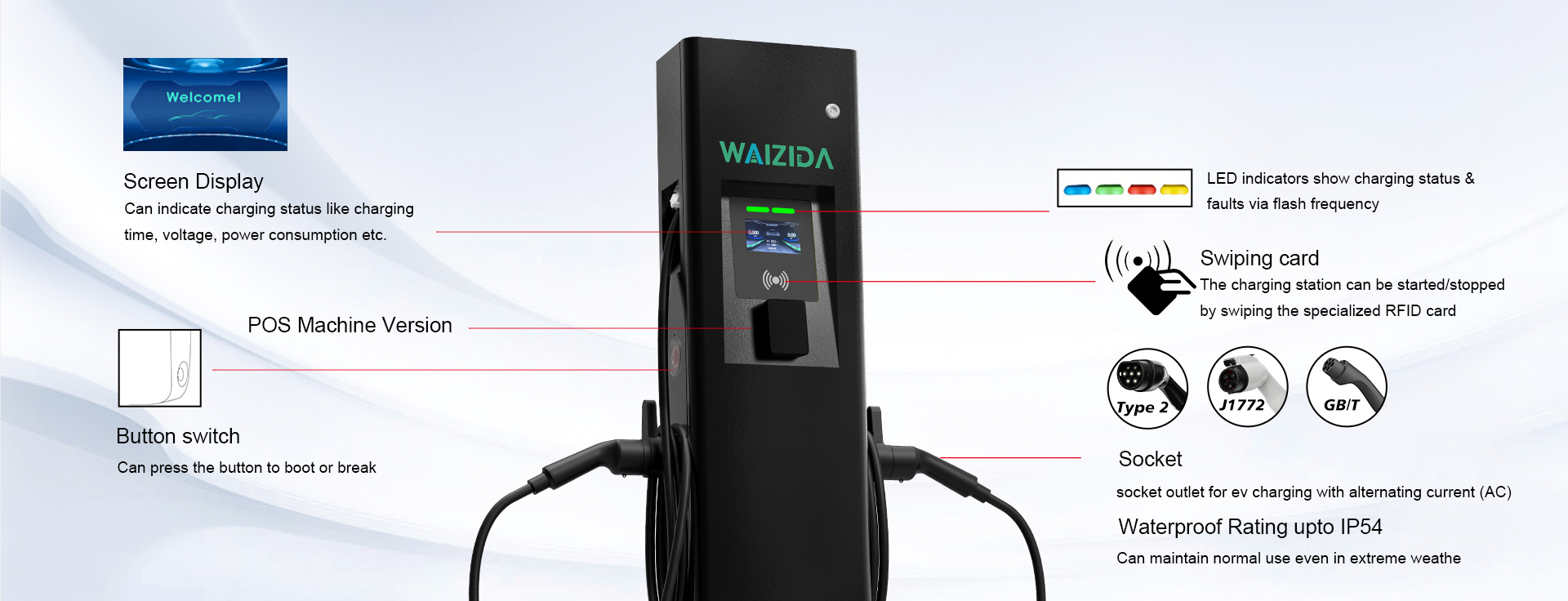

4.3 inch touch screen

Easiest user interaction and real-time status view
Emergency button

Press to cut off the power immediately
Indicator light

Professional after-sales team offers prompt issue resolution.
Wide EV Compatibility

Works with multiple charging standards, fits most mainstream EV models.

User-Friendly Interaction

Bright touchscreen displays power, charging data and fault codes for intuitive operation.

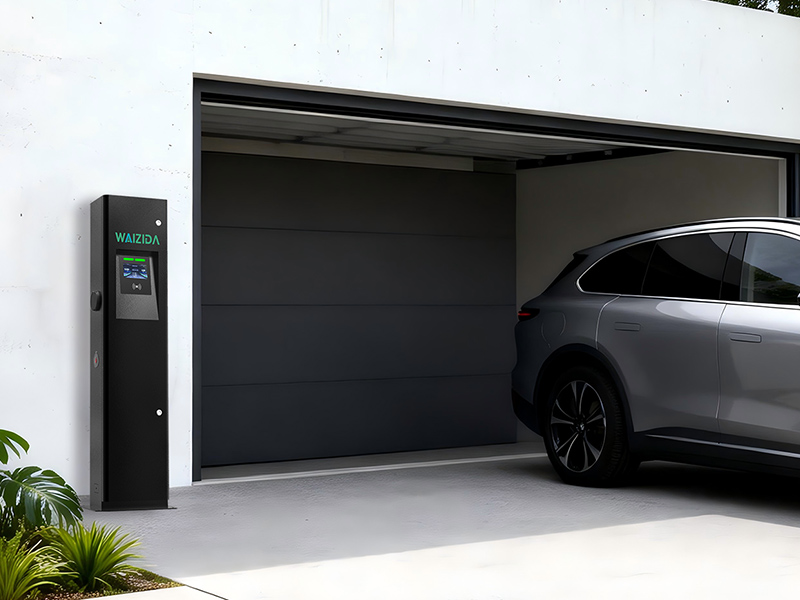

Stable Floor-Mount

Floor-standing design, strong base adaptability, easy installation
POS Machine Version

Commercial EV POS: offline/online card contactless payment, auto billing, receipt printing, transaction logging & system sync
....

Full OCPP1.6 compliance, enabling unified management via WAIZIDA OCPP Platform.

Internet connection automatically setting with best logic to save 4G save cost.

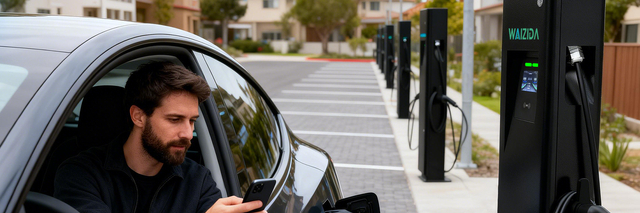

Remote charger monitoring, OTA updates & one-click remote fault fixing.

Integrated backend payment system with full settlement; RFID/credit card payments via PayPal/Stripe on WAIZIDA app.

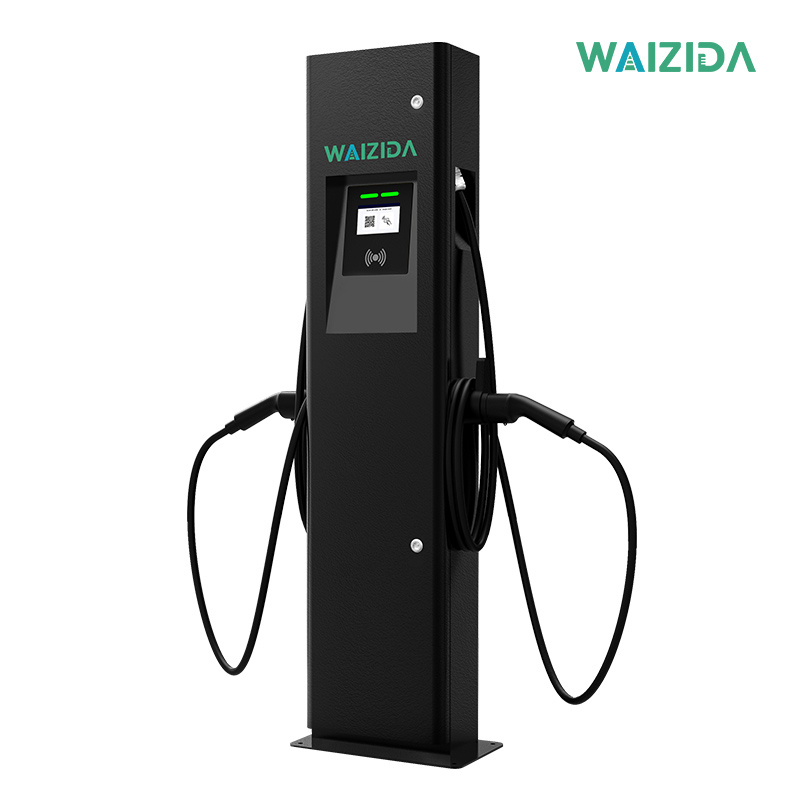

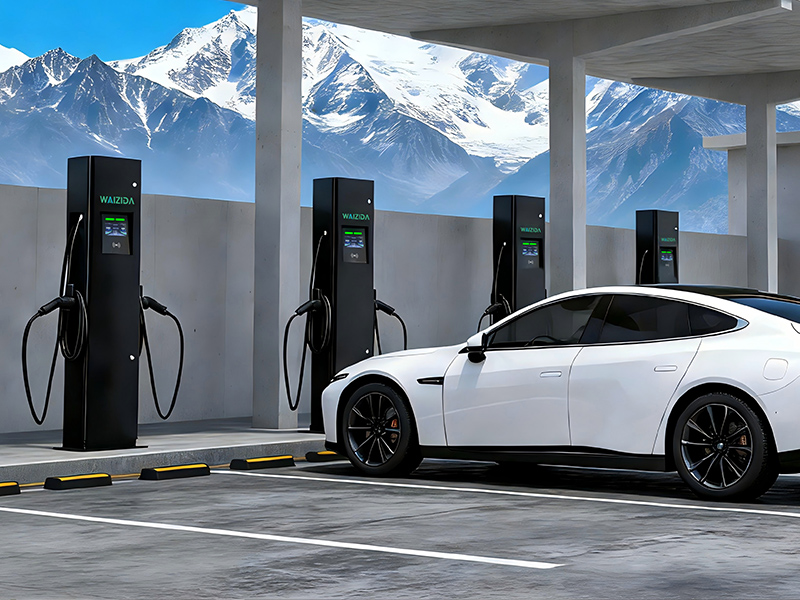

TWIN-PORT EV CHAR
Charge Two EVs Concurrently

Maximize charging throughput with our dual-gun system, engineered to power two electric vehicles simultaneously. Ideal for fleet depots, multi-EV households, and high-traffic commercial locations—streamline your charging operations without expanding infrastructure.

Tethered solution(With cable)

Key advantages are:

● For convenience, ready to charge from the moment you park.

● No need to get the charging cable from the trunk.

● Avoids potentially forgetting the charging cable.

● No need to buy additional cable.

Available Cable Options:

● Type 1 Tethered Cable (SAE J1772): Widely used in North America and select Asian EV models, supporting reliable AC charging with a secure connection.

● Type 2 Tethered Cable (IEC 62196): The European standard for electric vehicles, enabling faster AC charging and broad compatibility.

● GB/T Tethered Cable (China National Standard): Designed specifically for GB/T-compliant EVs in China, ensuring full compatibility and dependable charging performance.

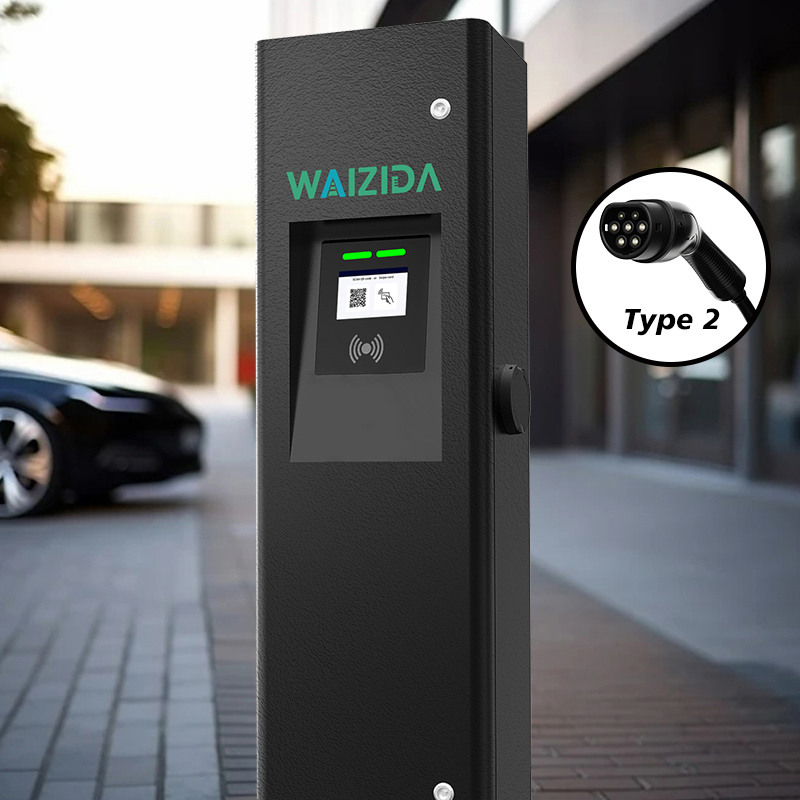

Socket solution

For flexibility, the preferred option for shared chargers, but also selected by many home users.

● Compatible with bothType 2 EVs.

● Provides a solution if cable over 7m is needed.

● Charging cable can be locked temporarily to become tethered.

● Cable can be removed when not in use for safety reasons.

Available Cable Options:

● Type 2 to Type 2 Cable: The modern standard for secure, rapid charging.

● Type 2 to Type 1 Cable: Compatible with older or region-specific models featuring a Type 1 inlet.

● Type 2 to GB/T Cable: Specifically designed for EVs using China's GB/T standard.

Specification
Model	Model L
Electrical Properties
Voltage	380V±20%	240V
Output Current	32A*2	48A*2
Frequency	50/60Hz	50/60Hz
Output Power	22kw*2	11kw*2
Residual current protection	Type A +6mA DC/ CCID20
Design
Interface	4.3 Inch Control Screen & LED Indicator Lamp
Charging Outlet	5M charging cable with type 1/2 plug or type2 socket (With electronic lock)
Housing Material	Electrolytic plate
Installation Method	Floor Mounted
Communication Protocol	OCPP 1.6J
SUsers Manualafety
Safety Protection	Emergency Stop/ Over Voltage Protection/ Under Voltage Protection/Over Current Protection/ Leakage Current Protection/ Ground Protection/Over Temperature Protection/ Short-circuit Protection/ Lightning Protection
Safety Standard	IEC/EN 61851
	UL2231
Warranty	2 years
Environmental Performance
Protection Level	IP54
Application Site	Indoor/ Outdoor
Working temperature	-25℃ to 50℃
Working humidity	5%-95%
Functionality
Network Gateway	Ethernet/ OCPP1.6J as default
RFID	Support
Emergency Button	Support
Packing Details

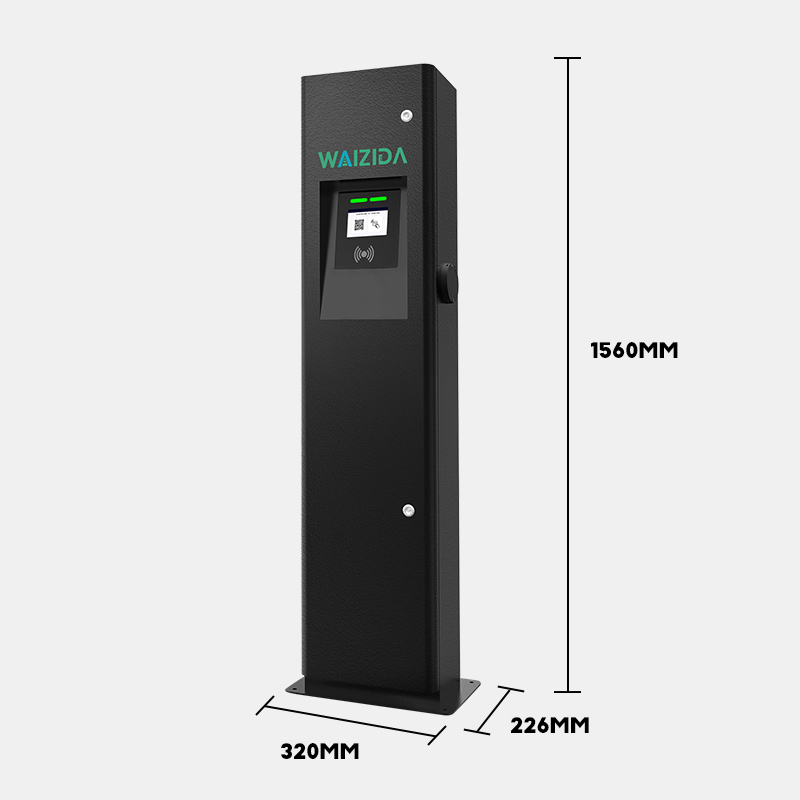

Product Size	1560320226mm (LWH)
Product Weight	65KG	75KG
Optional canfig
4G	as optional
POS	as optional
NFC	as optional

Model L1 Users Manual-US Std.pdf

Model L2 Users Manual-EUR Std.pdf

”

High-Capacity Dual-Port

AC EV Charger

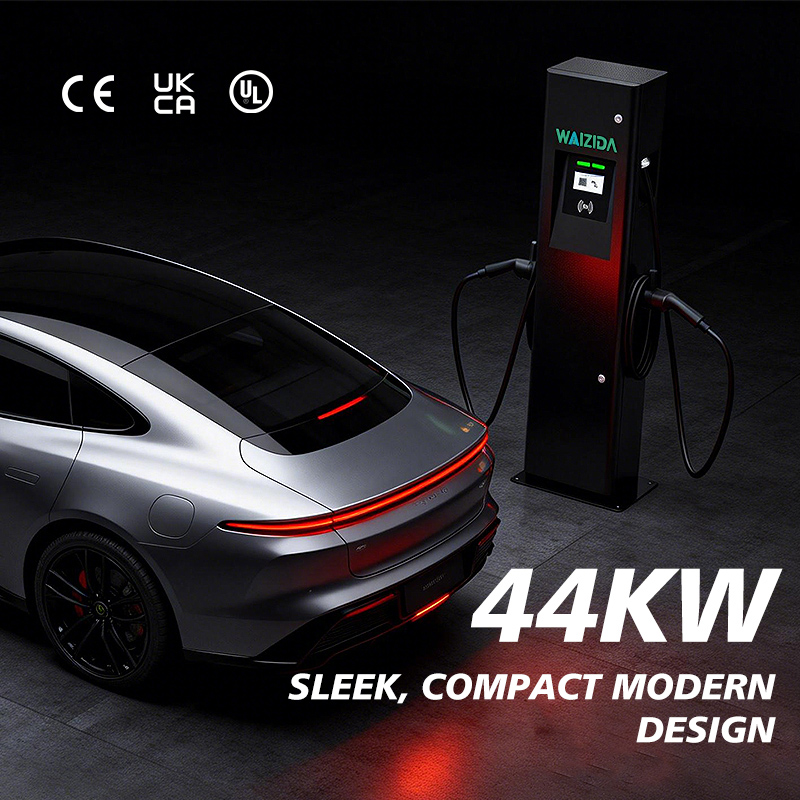

The Model L2 AC dual-port station is a high-performance AC charging system engineered to power two electric vehicles concurrently. Built to support multi-vehicle homes and demanding commercial sites, this floor-standing charger offers versatile power configuration—delivering 11kW+11kW (22kW), and 22kW+22kW (44kW) outputs—to flexibly meet varied charging demands.

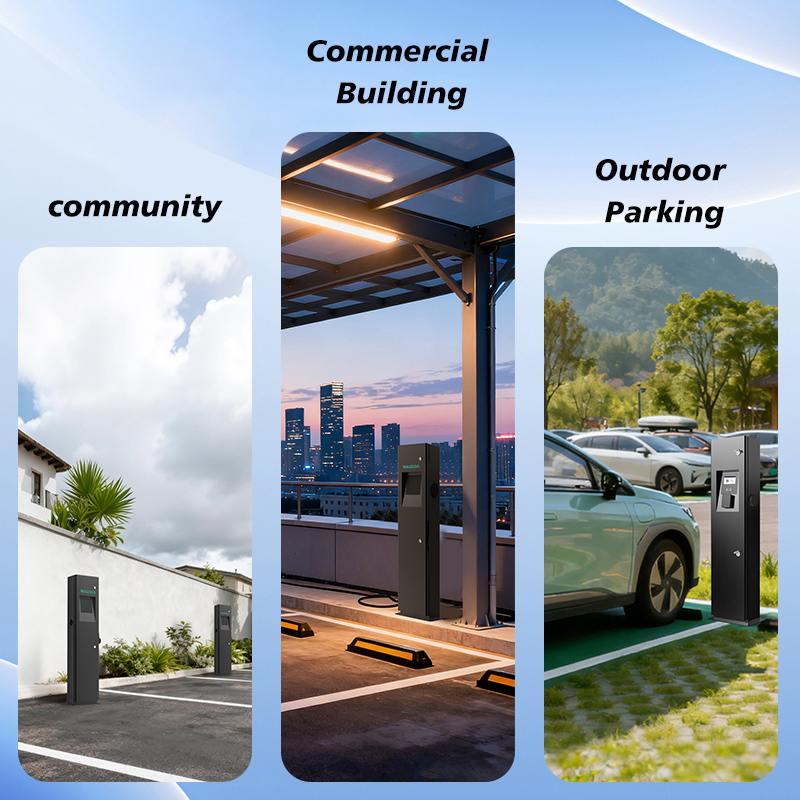

Ideal Use Cases →

Public & Shared Stations

Effortlessly supports multiple EV models in high-traffic areas.

Hospitality, Workplace & Retail

Provides convenient charging options for guests, employees, and customers.

Fleet Operations

Ensures reliable compatibility across mixed vehicle types for seamless business charging.

FAQs

Is this AC EV charger suitable for outdoor installation?

Yes. Built with a robust, corrosion-resistant casing and high IP54 weatherproof rating, this unit is specifically designed to function reliably as an outdoor EV charger.
What makes this model a smart EV charger?

Our charger’s support for OCPP 1.6J, remote monitoring, and connectivity options (4G/Ethernet) classify it as a smart EV charger, allowing for advanced management and control.
What is a Type 2 connector, and is it supported?

The Type 2 connector is the standard for AC charging in Europe. Our AC charging station supports it and other major standards like CCS2, ensuring broad compatibility.
What are the key benefits of a dual-gun home EV charger?

A dual-gun home EV charger like the Model L station allows you to charge two vehicles simultaneously, eliminating the need for a second charging unit and maximizing convenience for households with multiple EVs.
What communication protocols does your AC charging station support?

Our AC charging station supports the Open Charge Point Protocol (OCPP 1.6J) via Ethernet, 4G, facilitating seamless integration with various management systems.
What materials ensure the durability of this outdoor EV charger?

Our outdoor EV charger units utilize high-quality, corrosion-resistant Carbon Steel and high-purity copper, chosen for their robustness and longevity, achieving IP54 and IK10 ratings.
