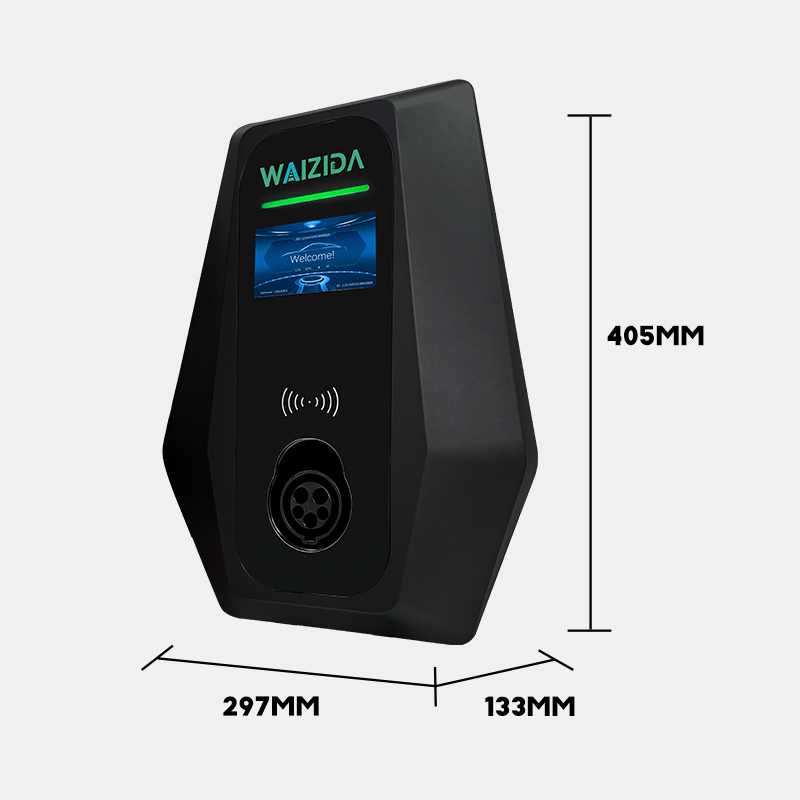

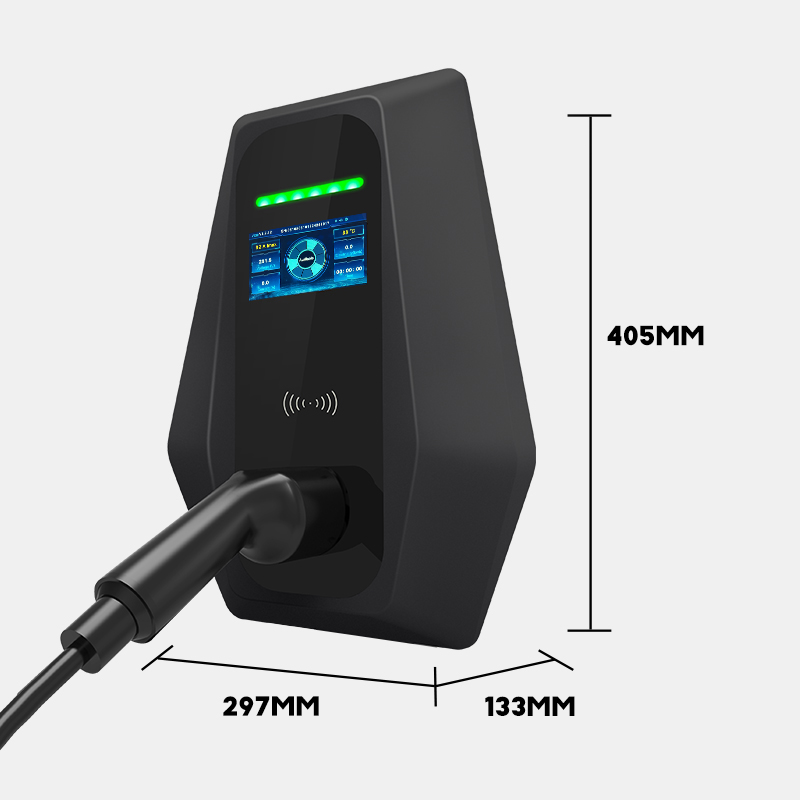

The WAIZIDA Model B EV Charging Station is a versatile, high-performance AC EV charging station engineered to deliver reliable, efficient, and intelligent charging for a wide range of commercial and multi-residential applications. Designed with flexibility and global scalability at its core, this smart commercial EV charger supports 7kW, 11kW, and 22kW power outputs, adapting seamlessly to everyday home charging needs and high-demand commercial environments alike. With full ODM&OEM customization capabilities, it is the ideal charging solution for property managers, multi-family housing operators, commercial facility owners, and small-scale charging network providers. Equipped with intuitive user interfaces and robust safety systems, it balances user-friendly operation with low-lifecycle maintenance, ensuring long-term value for commercial deployments.

Core Technical Specifications & Global Compatibility

Core Technical Performance

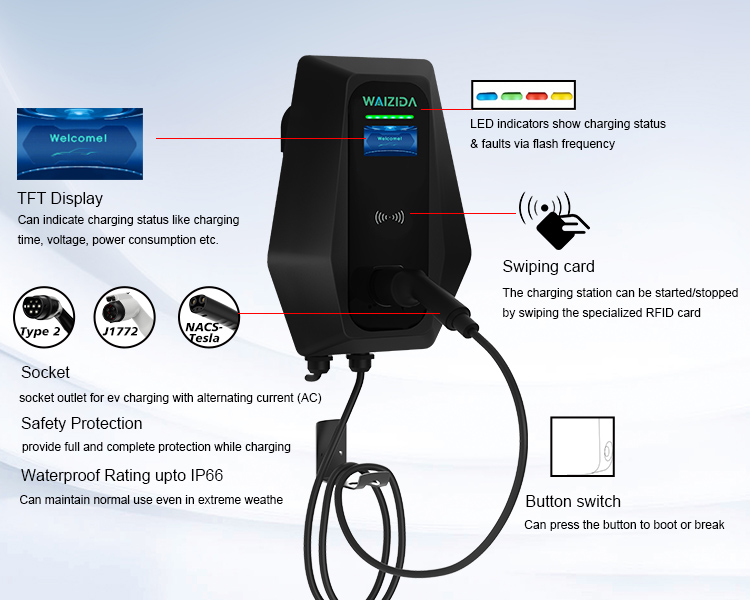

The WAIZIDA Model B EV charger delivers industry-leading electrical performance with wide voltage compatibility, supporting 230V AC ±20%, 380V AC ±20%, and 110V-240V AC inputs to align with global grid standards. It offers stable output current up to 32A, with rated power options of 7kW, 11kW, and 22kW to match diverse charging speed requirements. Built with a durable PC6610 housing, it operates reliably in temperatures ranging from -20℃ to 50℃, with a 4.3" TFT display and LED indicators for real-time charging status, voltage, and power consumption monitoring. It features a 5m charging cable as standard, with a 1m power incoming line for simplified installation, and weighs only 5.5kg to 7.5kg for easy handling and deployment.

Global Certification & Vehicle Compatibility

This CE certified EV charger holds full international accreditations including UKCA, FCC, ETL, CSA, and ENERGY STAR, complying with global safety standards such as EN/IEC 61851-1, EN/IEC 61851-21-2, and UL2231. It supports all mainstream charging connectors including Type 2, SEA J1772, GBT, and NACS for Tesla vehicles, delivering global EV charging compatibility with nearly all passenger EV models across Europe, North America, and Asia-Pacific markets. It also features comprehensive residual current protection (Type A 30mA AC + 6mA DC / CCID20) and a full suite of safety safeguards, including over-voltage, over-current, short-circuit, and lightning protection.

Tailored Configurations for Commercial Use Cases

Basic Smart Version

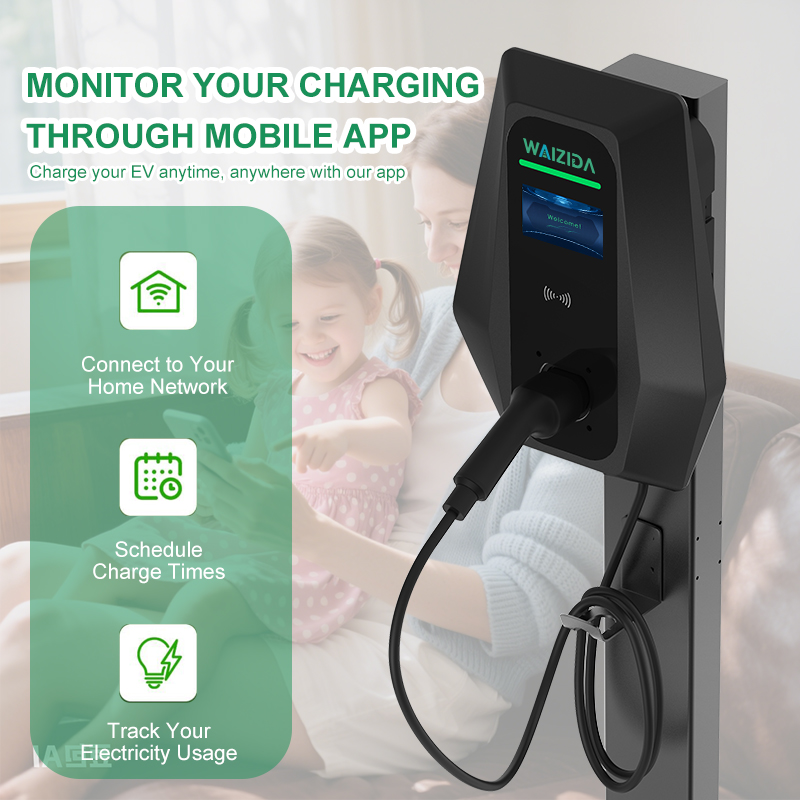

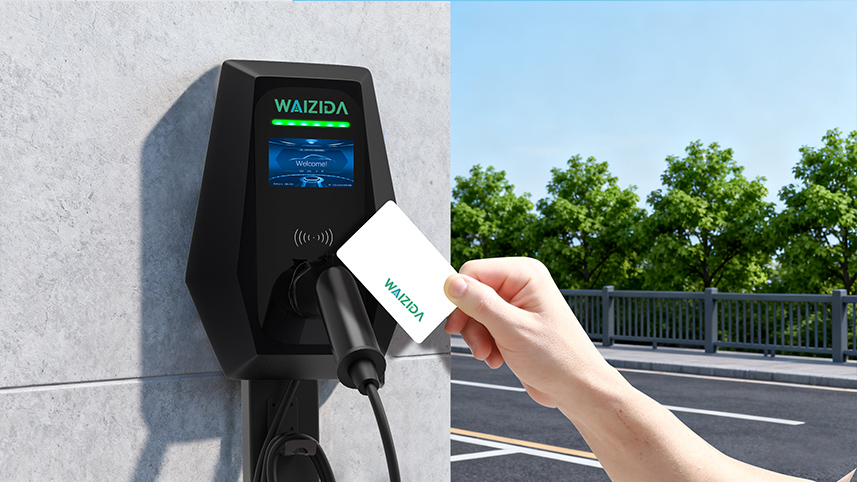

Ideal for multi-family residential properties and small commercial facilities, this version comes with default WiFi and Bluetooth connectivity, full mobile APP control for scheduling, charging history tracking, and remote start/stop, plus optional RFID card access for keyless, app-free operation.

Smart OCPP Version

Built for charging network operators and large property portfolios, this configuration includes an Ethernet interface and full OCPP 1.6J protocol compatibility, enabling seamless integration with centralized management systems, remote monitoring and diagnostics, and flexible payment options for scalable commercial deployments.

Dynamic Load Balancing Version

Perfect for sites with limited grid capacity, this version intelligently adjusts charging power in real time to prevent electrical overload, optimizing energy distribution across multiple chargers while maintaining stable, fast charging performance for multi-vehicle charging hubs.

PRO 2-in-1 Home & Commercial Version (EUR Only)

Designed for mixed-use properties, this configuration enables one-tap mode switching between residential and commercial operation via the mobile app, delivering unmatched flexibility for properties with both private and public charging needs.

Key Operational Advantages for Commercial Operators

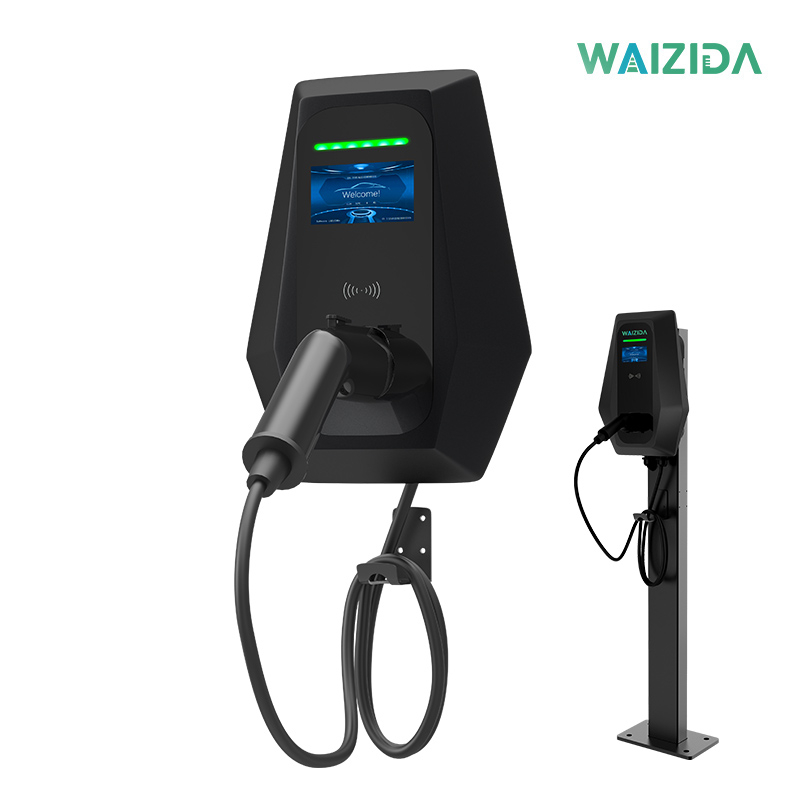

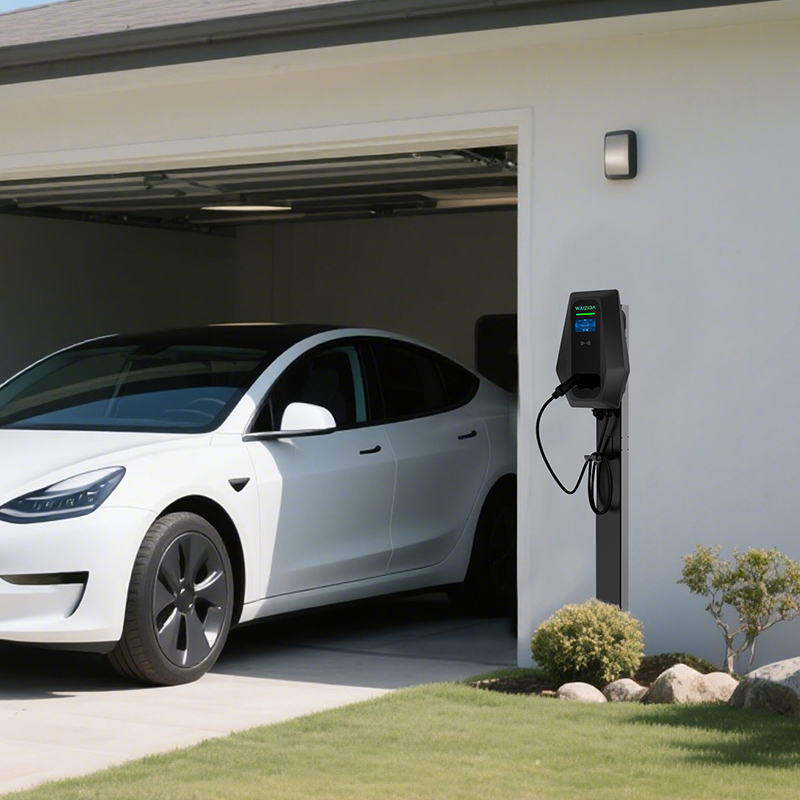

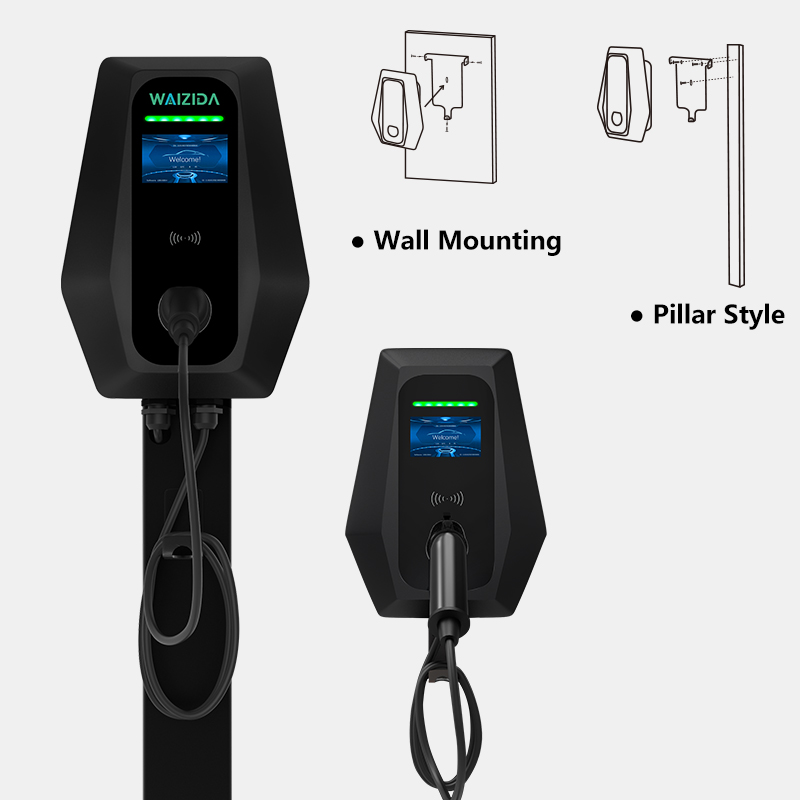

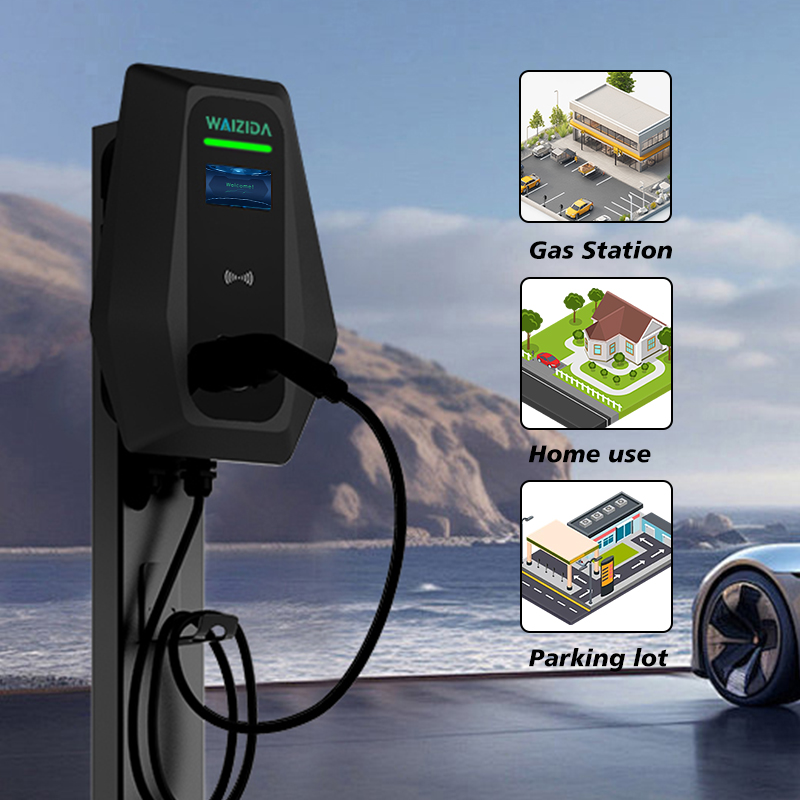

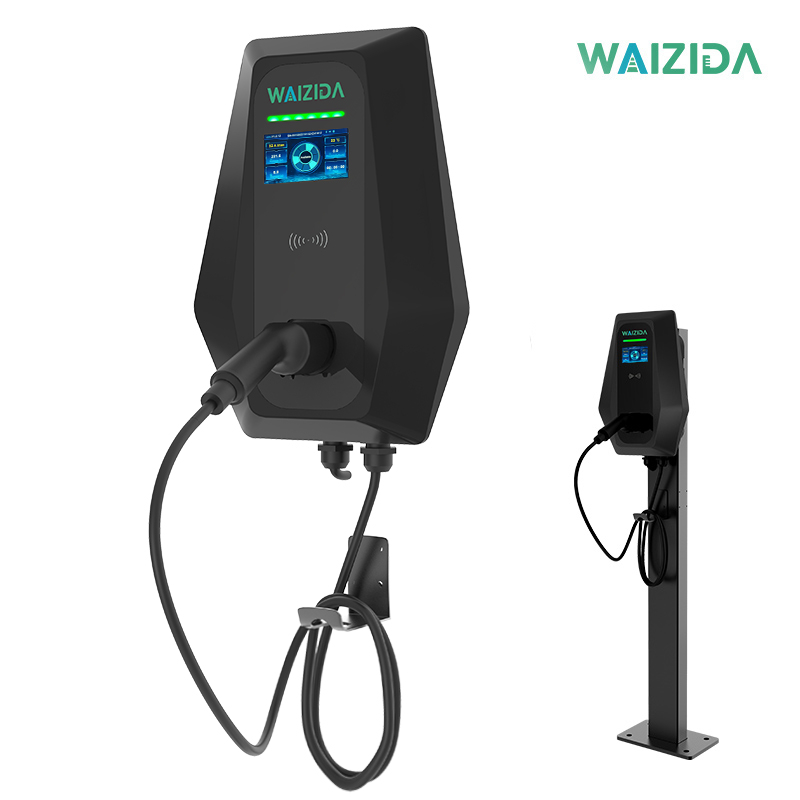

For commercial operators, the WAIZIDA Model B EV charger delivers tangible operational and financial benefits. Its dual wall-mounted and pole-mounted EV charger installation options adapt to diverse spatial constraints, with a compact wall-mounted design saving valuable space in garages and parking lots, while pole-mounted installation enables flexible deployment in open outdoor areas. With an IP66 waterproof rating, it maintains reliable operation in extreme weather conditions, reducing unplanned downtime and maintenance costs. Backed by a 3-year warranty and online remote technical support, it minimizes long-term operational risks. The intelligent remote management system reduces on-site maintenance visits, while customizable access controls and metering capabilities enable transparent usage tracking for commercial billing and tenant management. Whether deployed in private residential parking, community public charging zones, commercial office parks, or retail and hospitality locations, the Model B delivers a scalable, cost-effective EV charging solution for commercial operators. (Word count: 872)
