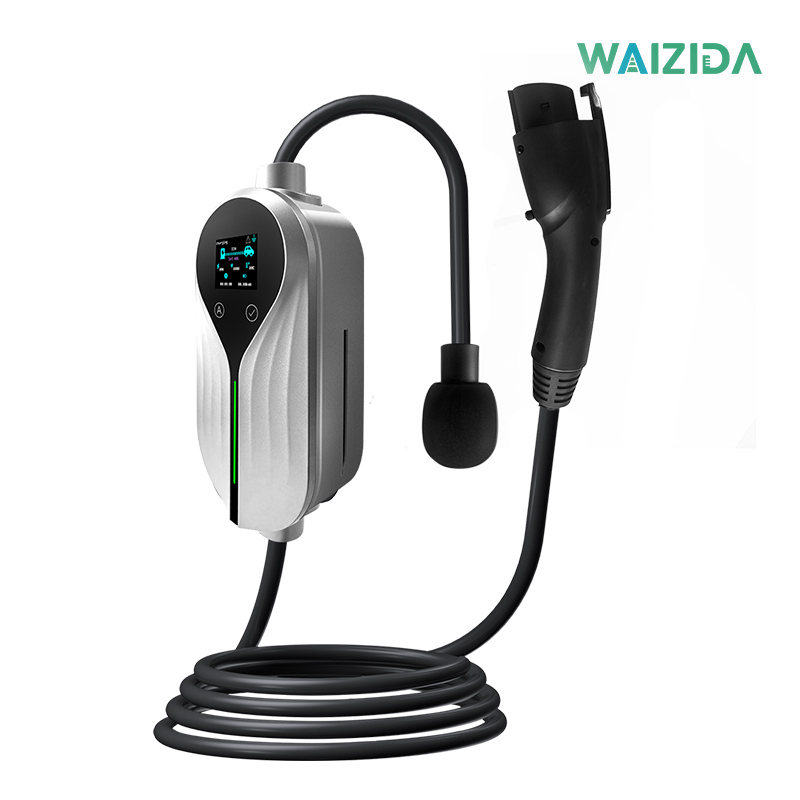

WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen
WAIZIDA Portable EV Charger Model U with LCD Screen WAIZIDA Portable EV Charger Model U with LCD Screen

loading

WAIZIDA Portable EV Charger Model U with LCD Screen

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Maximum Power: 16A /32A
Interface: Touch Key+1.77 Inch Display
RCD Type: CCID20
Weight: 3.5kg
External Dimension: 252/100*50 mm
ODM&OEM Available
Availability:
Inquiry Add to Basket
Product Advantage
Parameters
Users Manual
Product Uses
FAQ
The Waizida Portable EV Charger delivers efficient, plug-and-play charging for a wide range of electric vehicles. Engineered for safety, reliability, and convenience, it adapts seamlessly to diverse charging needs across multiple environments.
  • High-Efficiency Charging
    Enables faster charging to reduce downtime and improve user experience
  • Plug-and-Play Operation

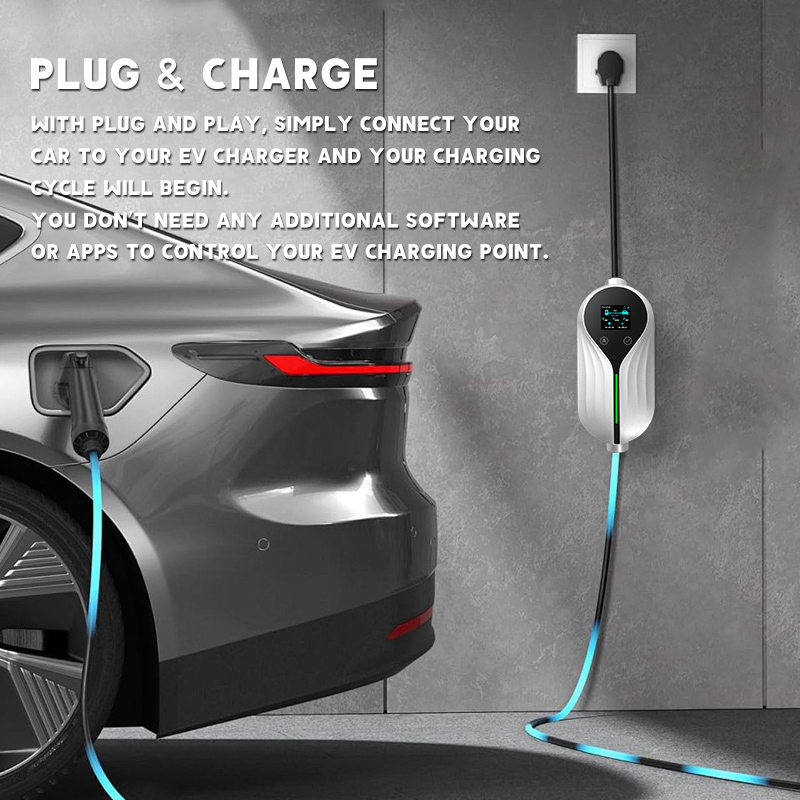

    No complex installation required—simply plug in and start charging
  • Broad Vehicle Compatibility
    Supports a wide range of EV models to meet diverse market needs
  • Safe & Reliable Performance
    Fully certified with multiple built-in protection features, including overcurrent, overvoltage, and short-circuit protection
  • RCD specifications
    Type A + 6mA DC RCD to accurately detect AC and DC leakage risks for enhanced shock protection



Specification
ModelModel U
Electrical Properties
Voltage230V380V120V-240V120V-240V
Output Current16A32A16A32A
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Output Power7kw11kw3.5kw7.6kw
Residual current protectionType  A +6mA DC/ CCID20
Design
Interface1.77 Inch display screen & LED Indicator Lamp

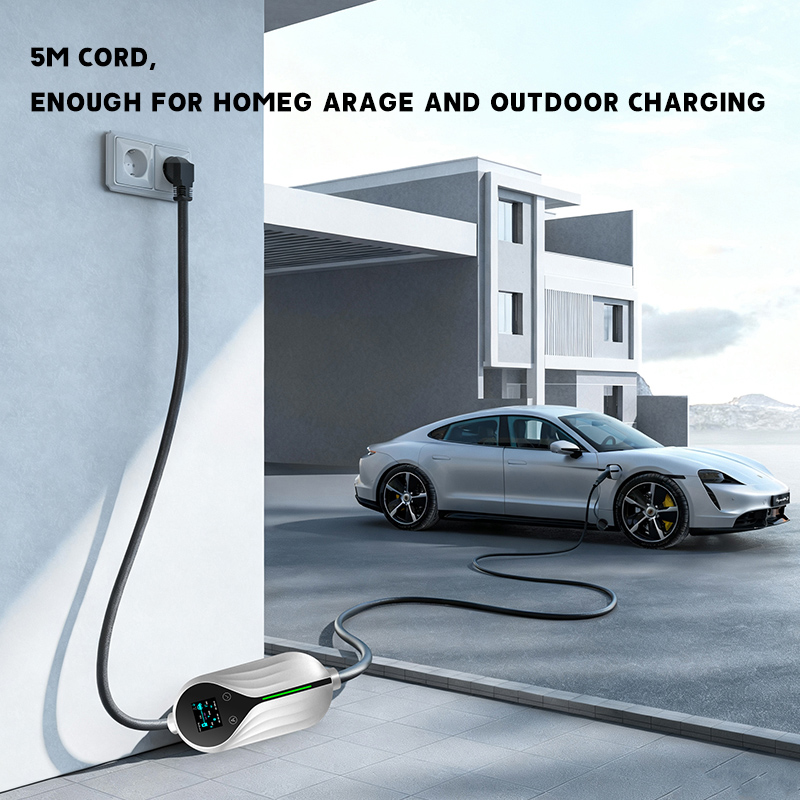

Charging Outlet5M charging cable with type 1/2 plug
Power incoming lineSchuko/ AU Plug/ UK Plug/ Blue CEE/ NEMA 6-20/ NEMA 14-50
Housing MaterialPC+ABS
Installation MethodNo Installation Is Required
Safety
Safety ProtectionOver Voltage Protection/Under Voltage Protection/Over Current Protection/Leakage Current Protection/Ground Protection/Over Temperature Protection
Safety StandardIEC/EN 62752
CertificationCE/ UKCA/ ETL/ CSA/ ENERGY STAR
Warranty1 years
Environmental Performance
Protection LevelConnector IP67/ Control Box IP65
Application SiteIndoor/ Outdoor
Working temperature -20℃ to 50℃
Working humidity5%-95%
Functionality
Current AdjustmentSupport
Delayed ChargingSupport
Packing Details

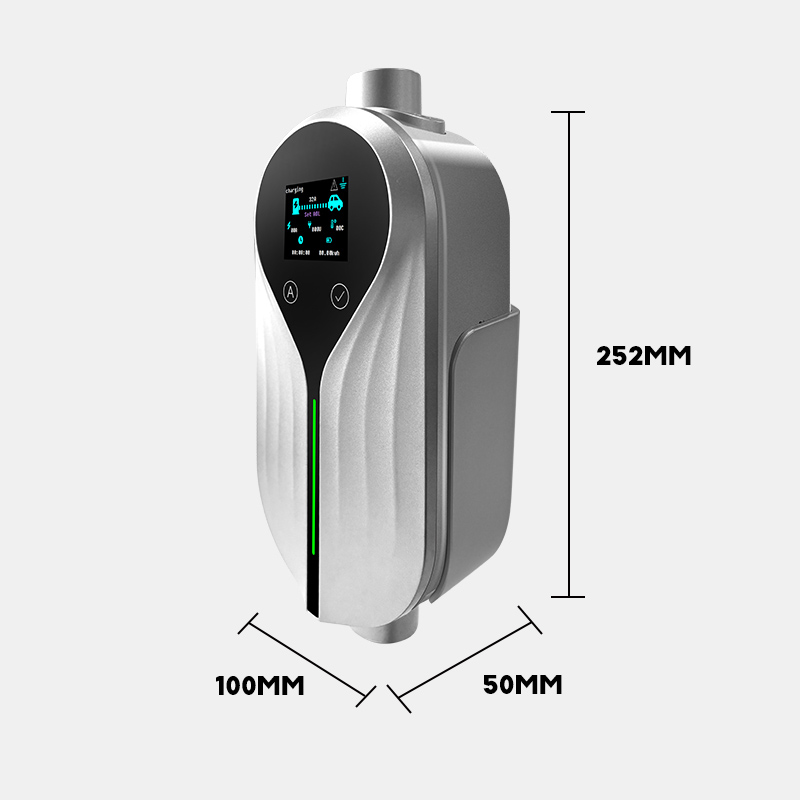

Product Size252*100*50mm (L*W*H)
Product Weight6KG6.5KG6KG6.5kg

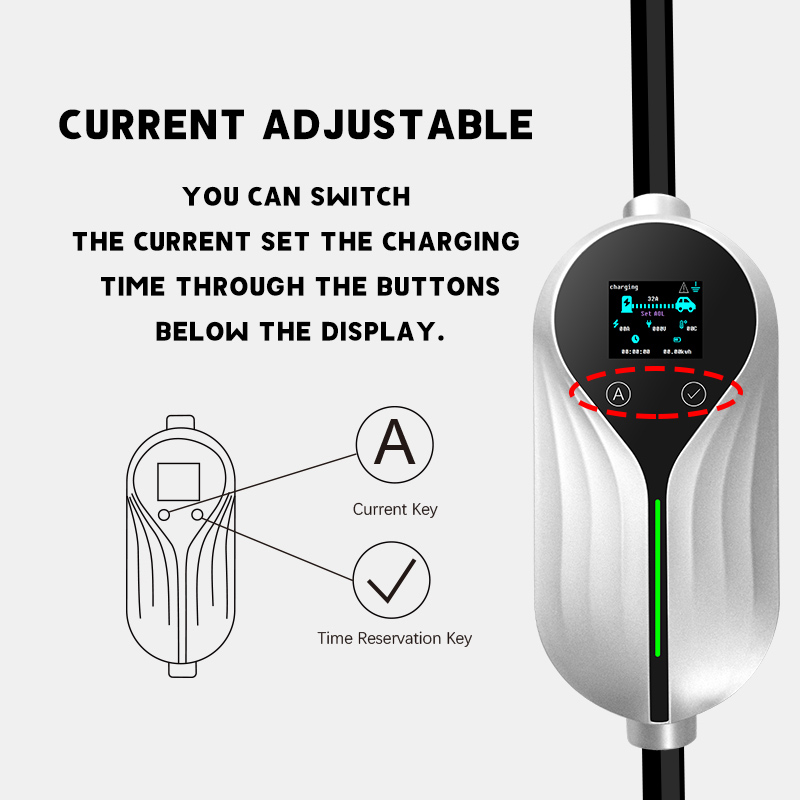

1. Current Adjustment


Compatible with standard power outlets, it requires no professional installation—simply plug in and charge. Designed to reduce range anxiety,

the Waizida portable charger lets you power your EV anytime, anywhere.
fuwuaixin

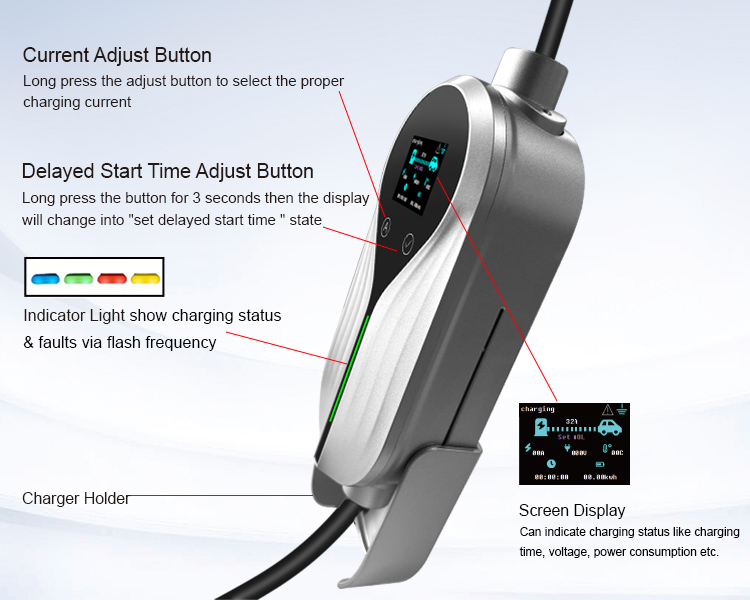

Enter the settings mode
Press and hold the <Current Key> for 5 seconds to enter the current setting mode.

fuwuaixin
Switch gears
Press the <Current Key> briefly to cycle through the current gears in sequence:
8A -> 10A -> 12A -> 16A -> 20A -> 24A -> 32A (Please choose carefully based on the capacity of the socket and wiring. A 10A socket is limited to 10A.)
fuwuaixin
Confirmation Settings
① Method One: Stop the operation of the key, and about 5 seconds later, the system will automatically confirm the current displayed current value.
② Method Two: You can also press and hold the <Current Key> for 5 seconds again to immediately confirm the current current value.
fuwuaixin
Start Charging
After the settings are completed, you can start charging (or connect the vehicle and it will start automatically).


2. Delay Charging


Scheduled Charging Time Settings（Time Reservation Key）

1
Enter the Settings Mode: Press and hold the <Time Reservation Key> for 5 seconds to enter the scheduled time
setting mode.
2
Switching Positions: Press and hold the <Time Reservation Key> briefly to cycle through the current current levels: 1 hour -> 2 hours -> ... -> 12 hours (usually with 1 hour as the step).
3
Confirmation Settings:
① Method One: Stop the key operation, and about 5 seconds later, the system will automatically confirm the current displayed time value.
② Method Two: You can also press and hold the <Time Reservation Key> for 5 seconds again to immediately confirm the current time value.
4
Reservation Takes Effect: After the settings are completed, the device will start charging after the delay of the set time when you connect the vehicle and meet the charging conditions (such as plugging in the cable/starting the APP, etc.)

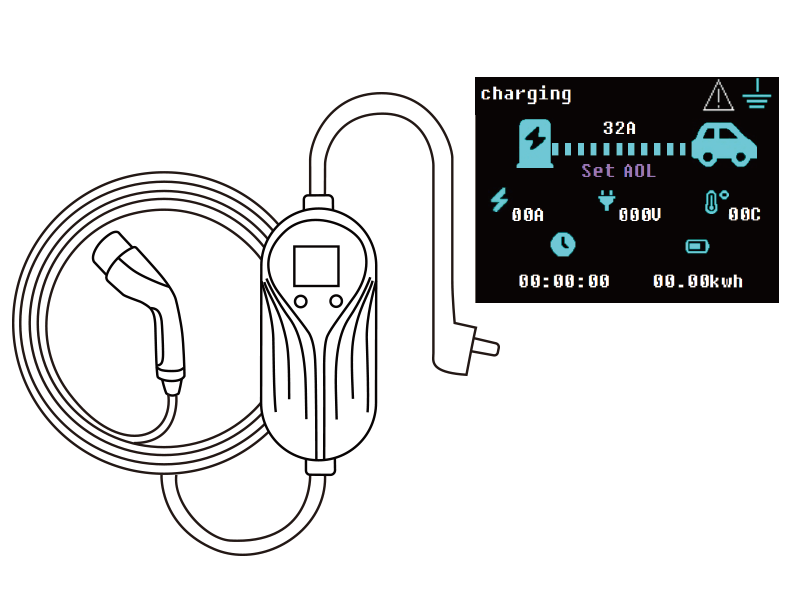

3. Display Screen

State：The upper left corner shows the status：Waiting (not connected), Connected (connected),
Charging (charging in progress), Charged (fully charged).

Error code:
Error1 - > over temperature protection
Error2 - > over-voltage protection
Error3 - > over-current protection
Error4 - > leakage protection
Error5 - > Abnormal communication protection
Error6 - > not grounding protection
Error7 - > short-circuit protection
Error8 - > - > adhesion to protect
Start Charging

① Turn off the vehicle, plug the charger into a power outlet.
② Long-press the adjust button to set the desired current.
③ Remove the protective cap, connect to your vehicle, and start charging.

Stop Charging

① Unlock the vehicle, then pull the charger connector out of the charge port.
② Unplug the charger from the power outlet.
③ Replace the protective cap, place the charger in the storage bag, and store it properly.

2
1
FAQs
  • Can I adjust the charging current on this portable EV charger?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, this portable electric vehicle charger lets you choose between multiple current settings, such as 16 A for standard charging or 32 A for faster charging.
  • Is the Model U compatible with all EVs?
    加 Created with Sketch.
    形状 Created with Sketch.
    Absolutely! The Model U works with both Type 1 (SAE J1772) and Type 2 (IEC 62196-2) connectors, making it a versatile charger for nearly all electric vehicles.
  • What safety features does the Model U portable EV charger offer?
    加 Created with Sketch.
    形状 Created with Sketch.
    The Model U portable electric car charger comes with robust safety protections, including an IP66 waterproof rating, IK10 impact resistance, and comprehensive electrical safeguards such as under-voltage, overload, short-circuit, and over-temperature protection.
  • Does the Model U support different plug types?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, the Model U comes with multiple plug options—NEMA 14-50, NEMA 6-50, and Type 2—ensuring compatibility with regional standards in both North America and Europe.

Related Products

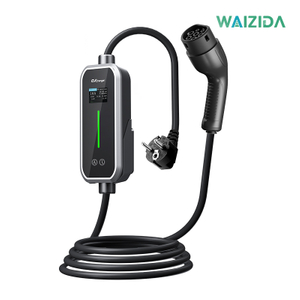

WAIZIDA Portable EV Charger Model T1 with LCD Screen
