Specification | |||

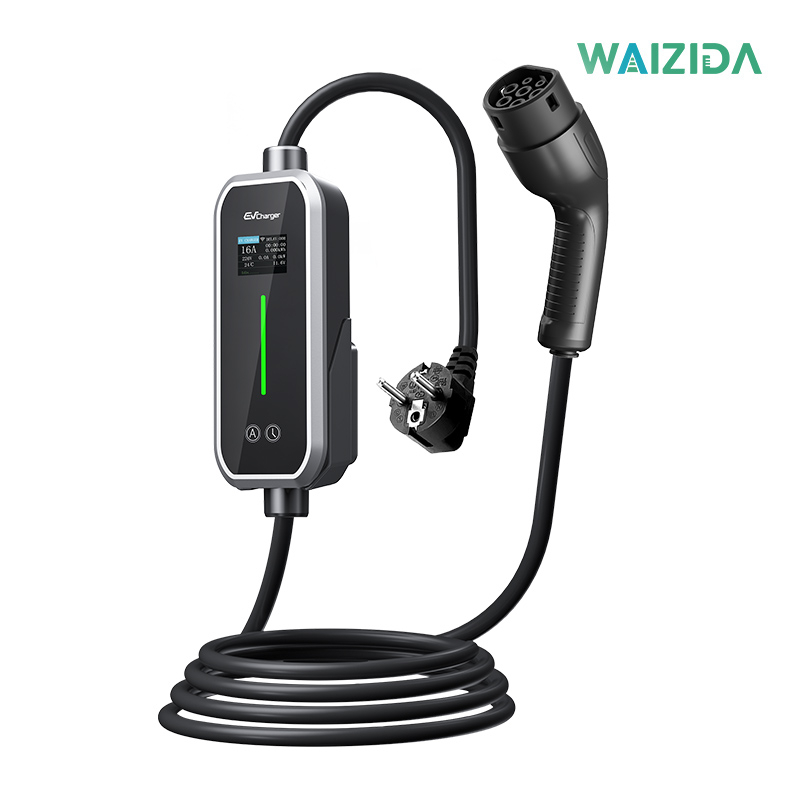

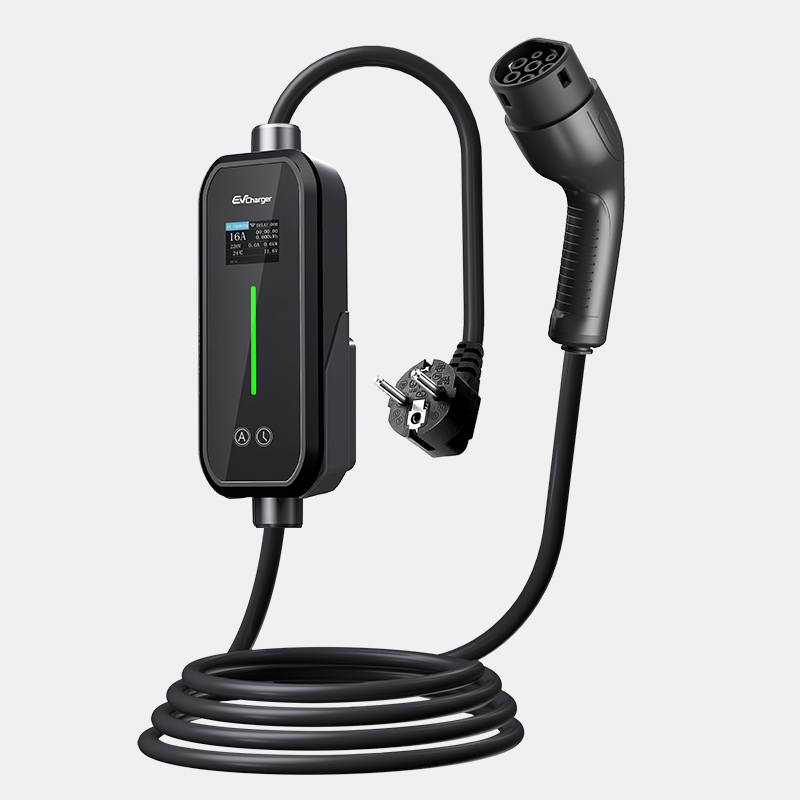

Model | Model T1 | ||
Electrical Properties | |||
Voltage | 230V AC ±20% | 380V AC ±20% | 380V AC ±20% |
Output Current | 16A | 32A | 16A |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Output Power | 3.5kw | 7kw | 11kw |
Residual current protection | Type A +6mA DC | ||
Design | |||

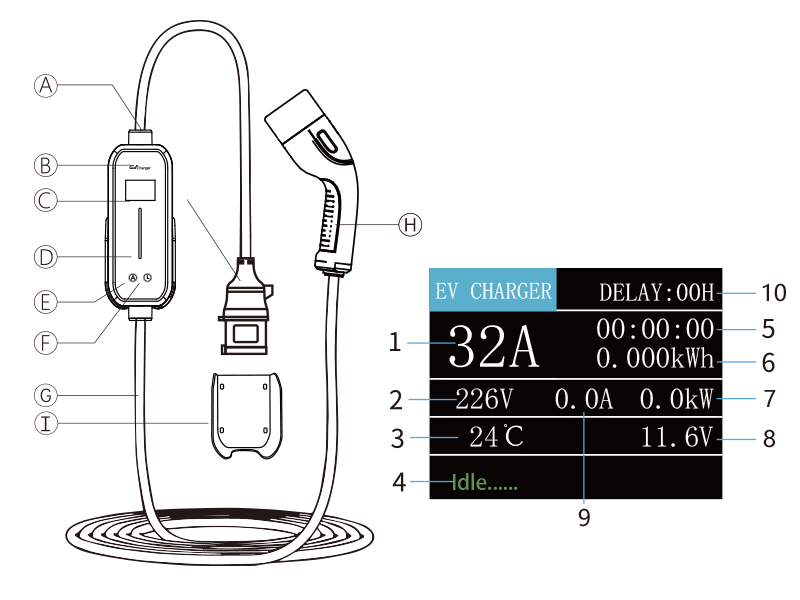

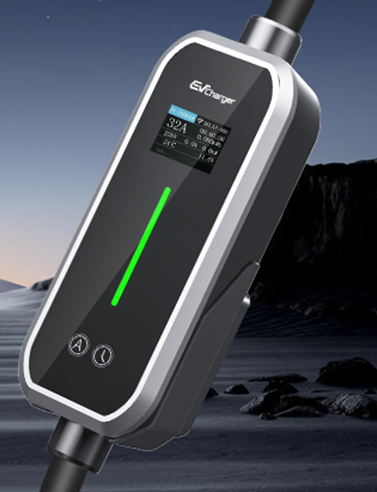

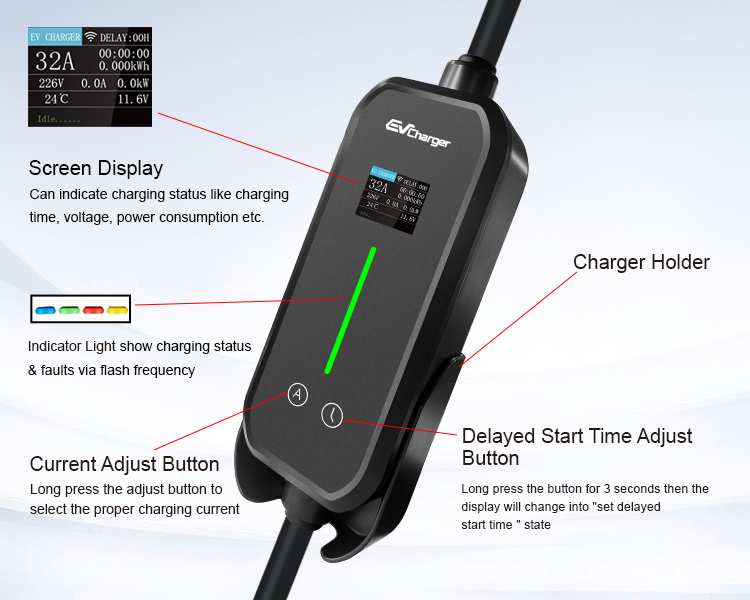

Interface | Touch Key+1.77 Inch Display & LED Indicator Lamp | ||

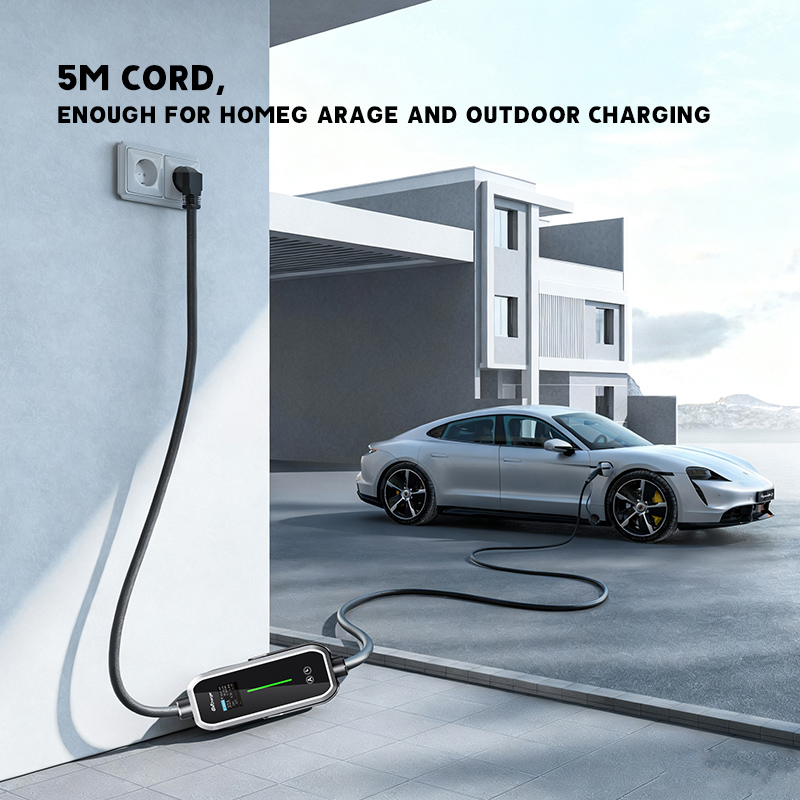

Charging Outlet | 5M charging cable with type 2 plug | ||
Power incoming line/ plug | Schuko/ UK Plug/ Blue CEE | ||
Housing Material | PC+ABS | ||
Installation Method | No Installation Is Required | ||
Safety | |||
Safety Protection | Over Voltage Protection/Under Voltage Protection/Over Current Protection/Leakage Current Protection/Ground Protection/Over Temperature Protection | ||
Safety Standard | IEC/EN 62752 | ||
Certification | CE/ UKCA | ||
Warranty | 1 years | ||
Environmental Performance | |||
Protection Level | IP66 | ||
Application Site | Indoor/ Outdoor | ||

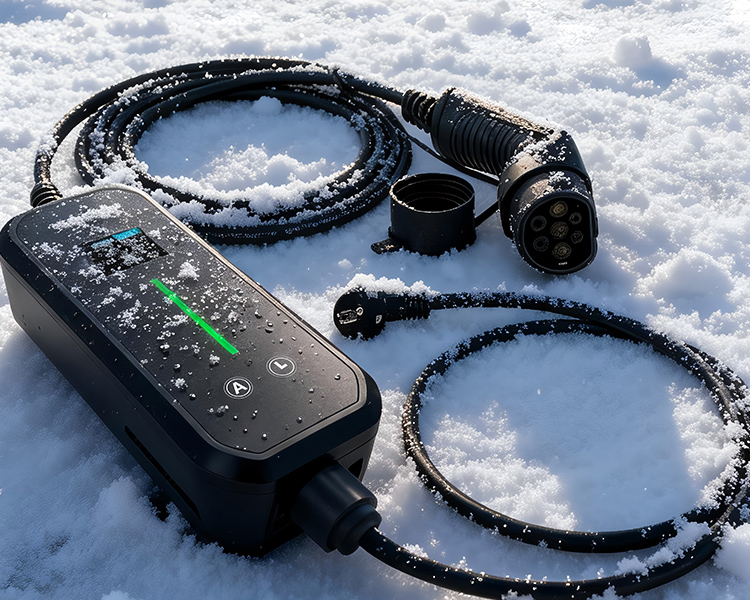

Working temperature | -25℃ to 50℃ | ||
Working humidity | 0%-95% | ||
Functionality | |||
Current Adjustable | Support | ||
Daley Charging | Support | ||
Packing Details | |||

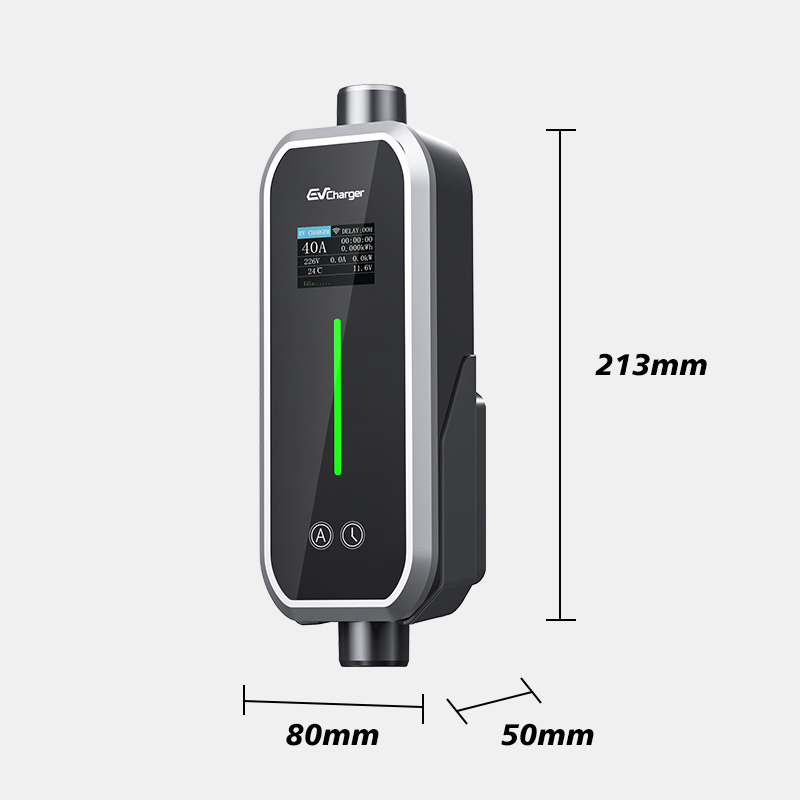

Product Size | 213*80*50mm (L*W*H) | ||
Product Weight | 3.5KG | 3.6KG | 3.8KG |
