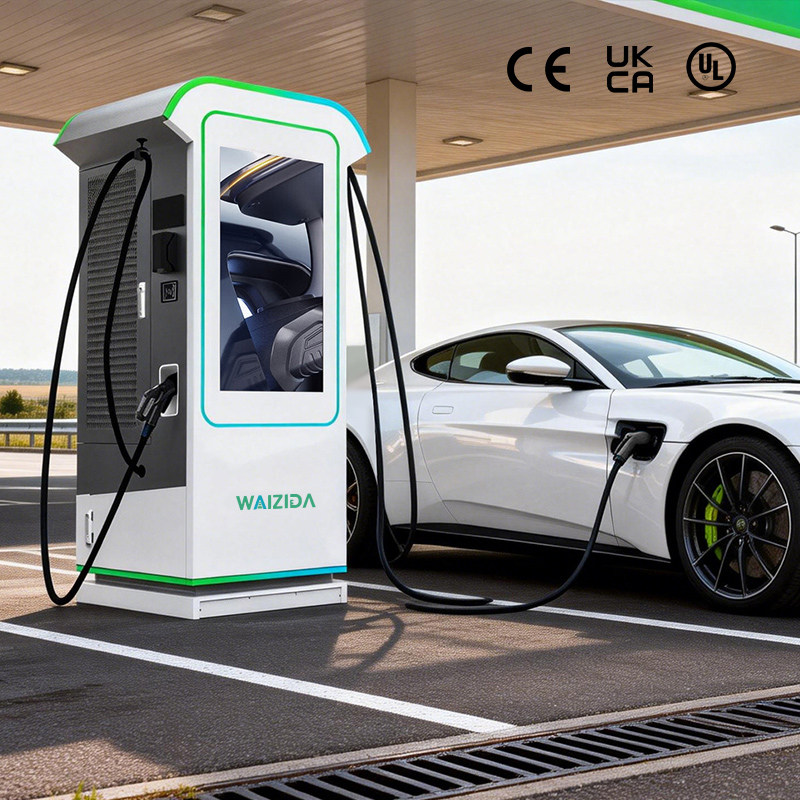

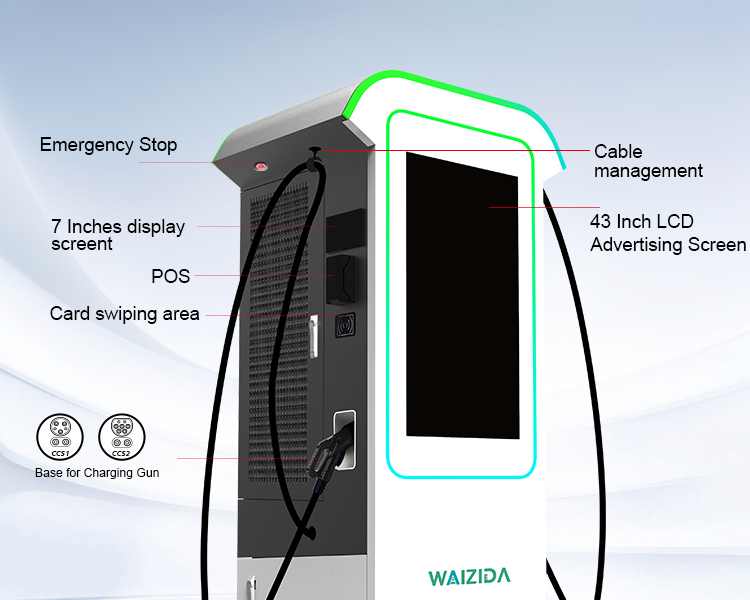

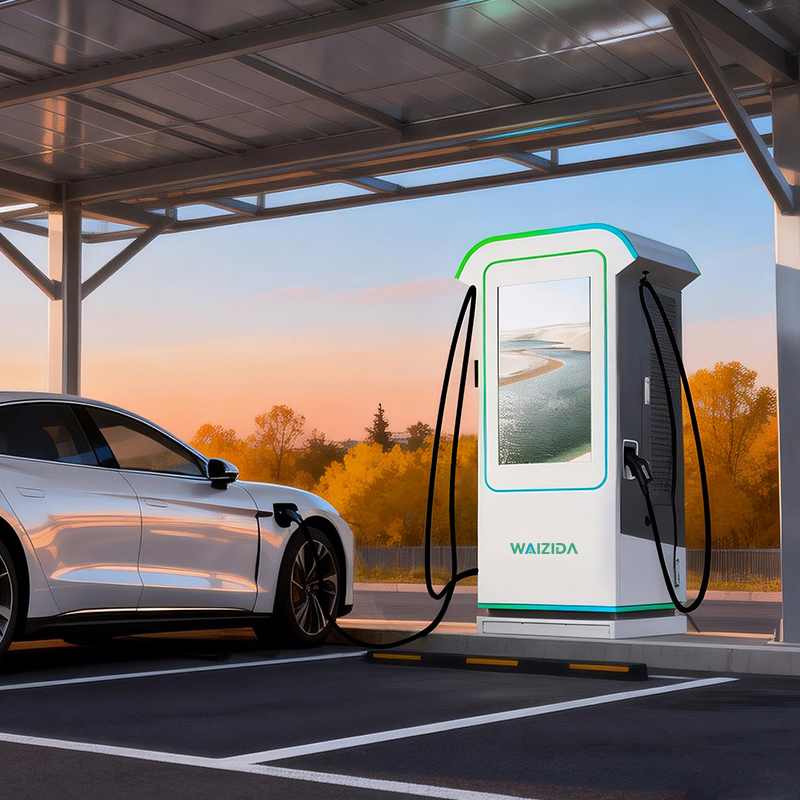

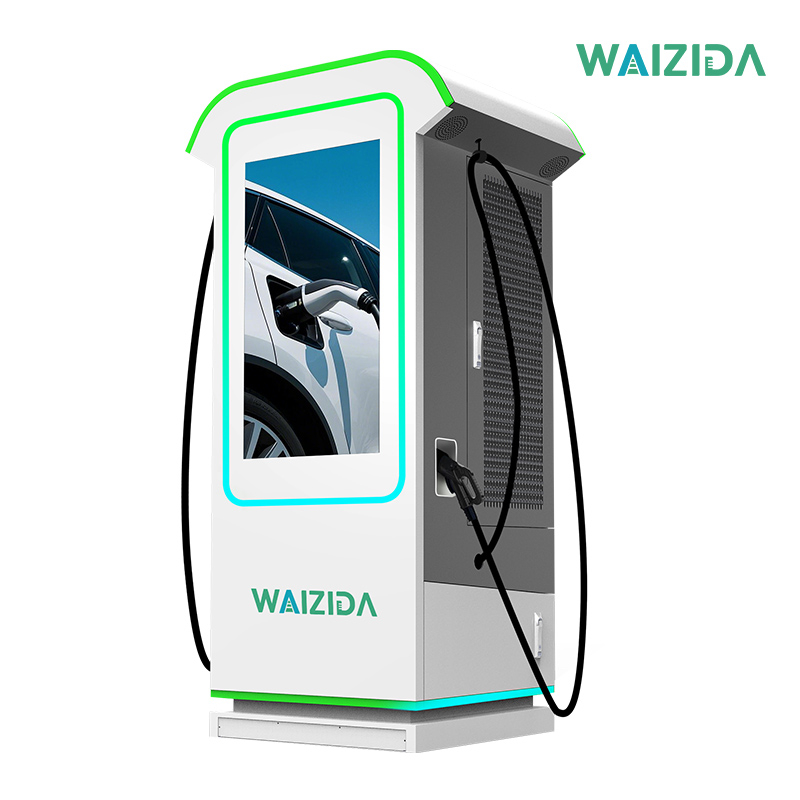

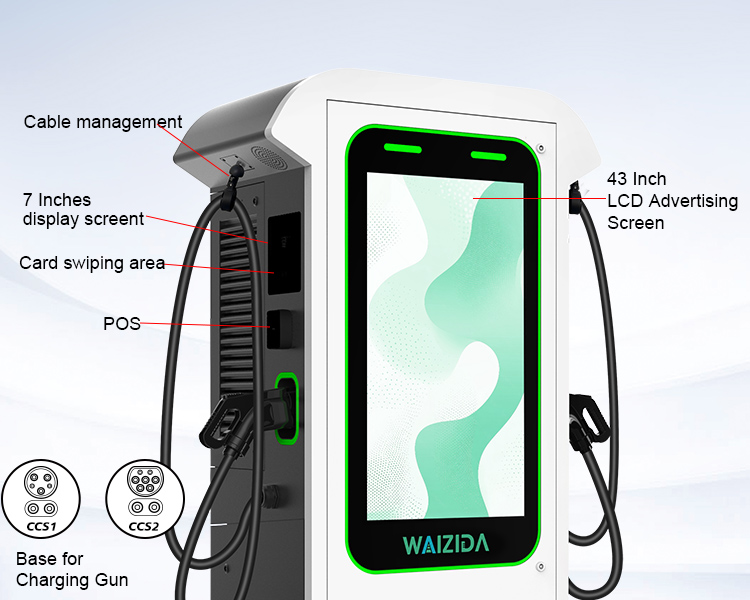

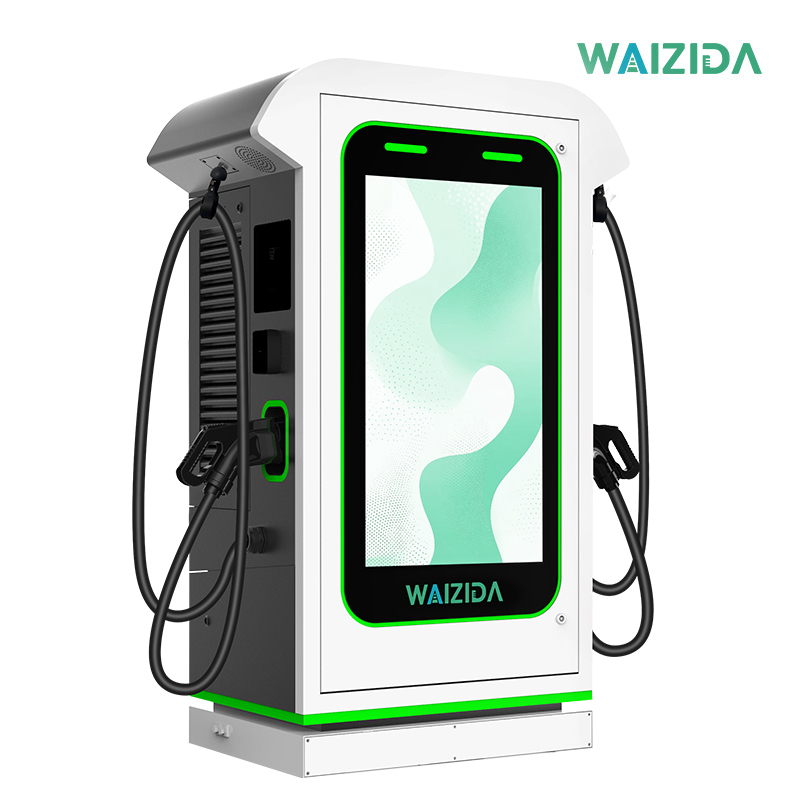

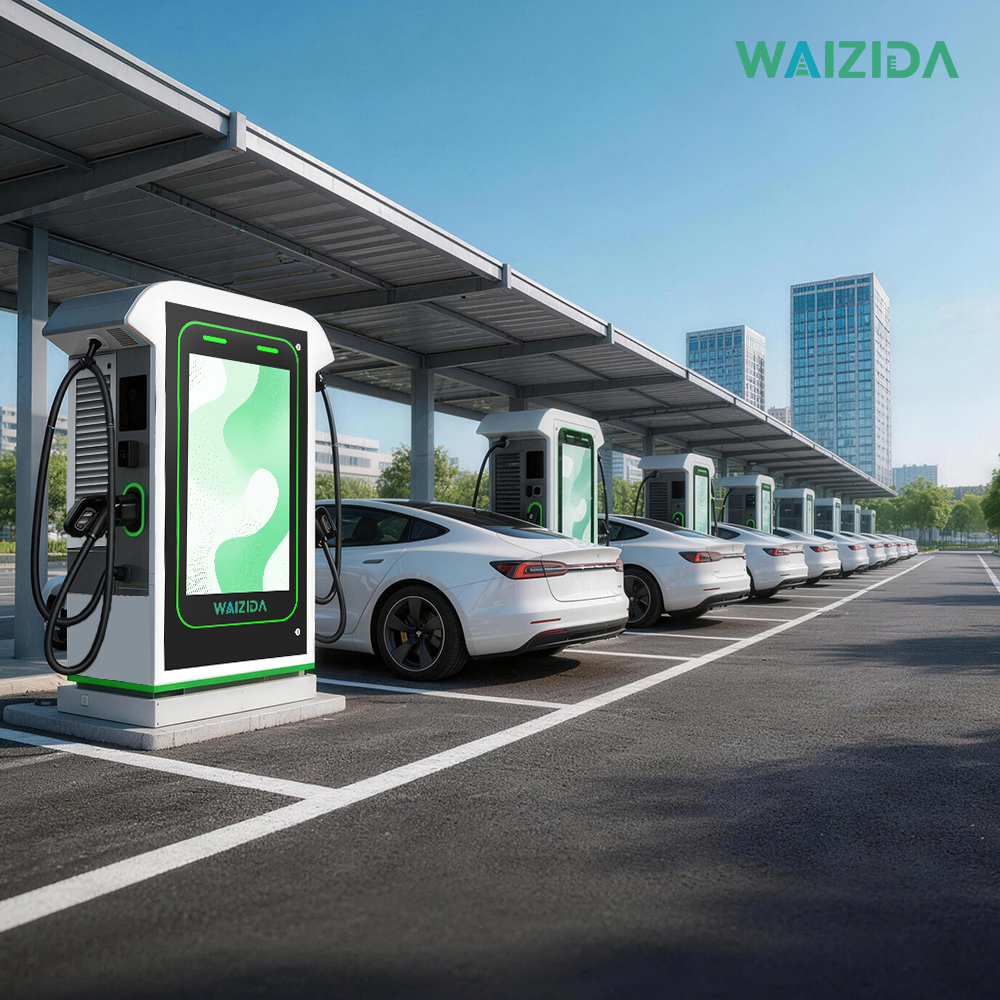

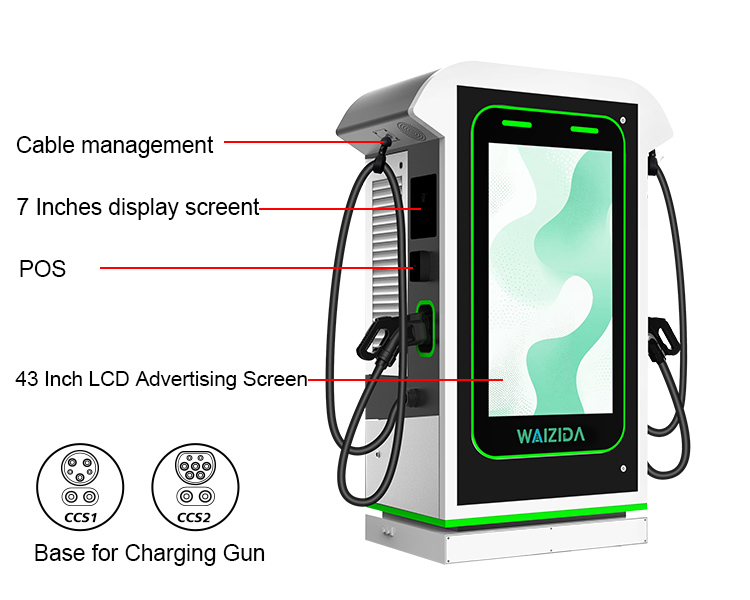

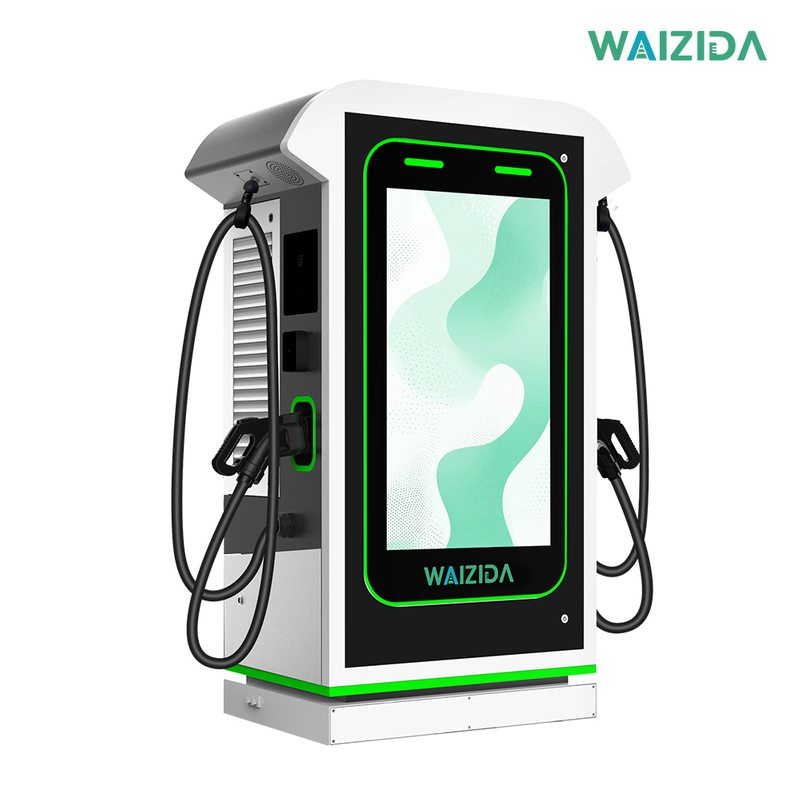

The WAIZIDA Model D8 EV Charging Station is a high-performance, scalable DC fast EV charging station engineered exclusively for commercial operators, high-traffic public locations, and large-scale charging infrastructure deployment. With a flexible power output ranging from 60kW to 240kW and a dual-gun design that supports simultaneous charging for two electric vehicles, this solution drastically cuts charging wait times and maximizes site utilization. Equipped with a 7-inch color touch control screen, optional 43-inch high-brightness LCD advertising display, and modular functional configurations, it delivers a reliable, revenue-driving commercial EV charging solution for diverse business needs across global markets.

Core Technical Specifications & Global Compatibility

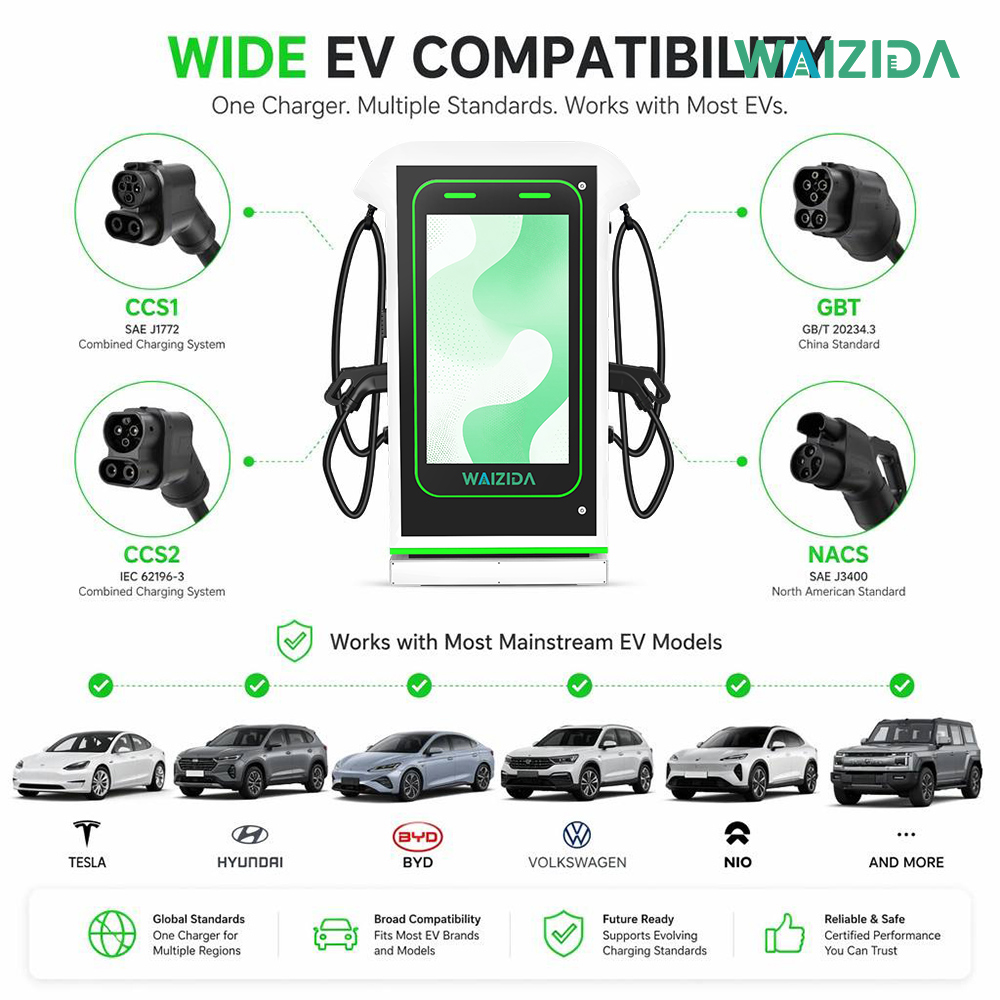

This OCPP compliant EV charger is built to meet international industry standards, with core electrical performance that ensures stable, efficient operation in demanding commercial environments. It offers configurable output power options of 60kW, 120kW, 150kW, 180kW, and 240kW, with a maximum output current of 250A, a conversion efficiency of ≥95%, and a power factor of ≥0.99 under 50%+ load, minimizing energy loss and operational costs. It supports both European standard 380V±20% and US standard 480V±20% grid input, with charging connector options including CCS1, CCS2, GBT, and NACS, enabling full compatibility with nearly all EV models worldwide. It also fully supports the ISO 15118 Plug & Charge standard for seamless automatic authentication. Native support for OCPP 1.6J (OCPP 2.0 optional) ensures seamless integration with mainstream charging management platforms, with Ethernet and optional 4G for uninterrupted connectivity. Certified to IEC/EN 61851, UL 2202 and other global safety standards, it features an IP54 protection rating, -20℃ to 55℃ operating range, 12+ comprehensive safety protections, and a 100,000-hour MTBF for long-term fault-free operation.

Tailored Configurations for Commercial Use Cases

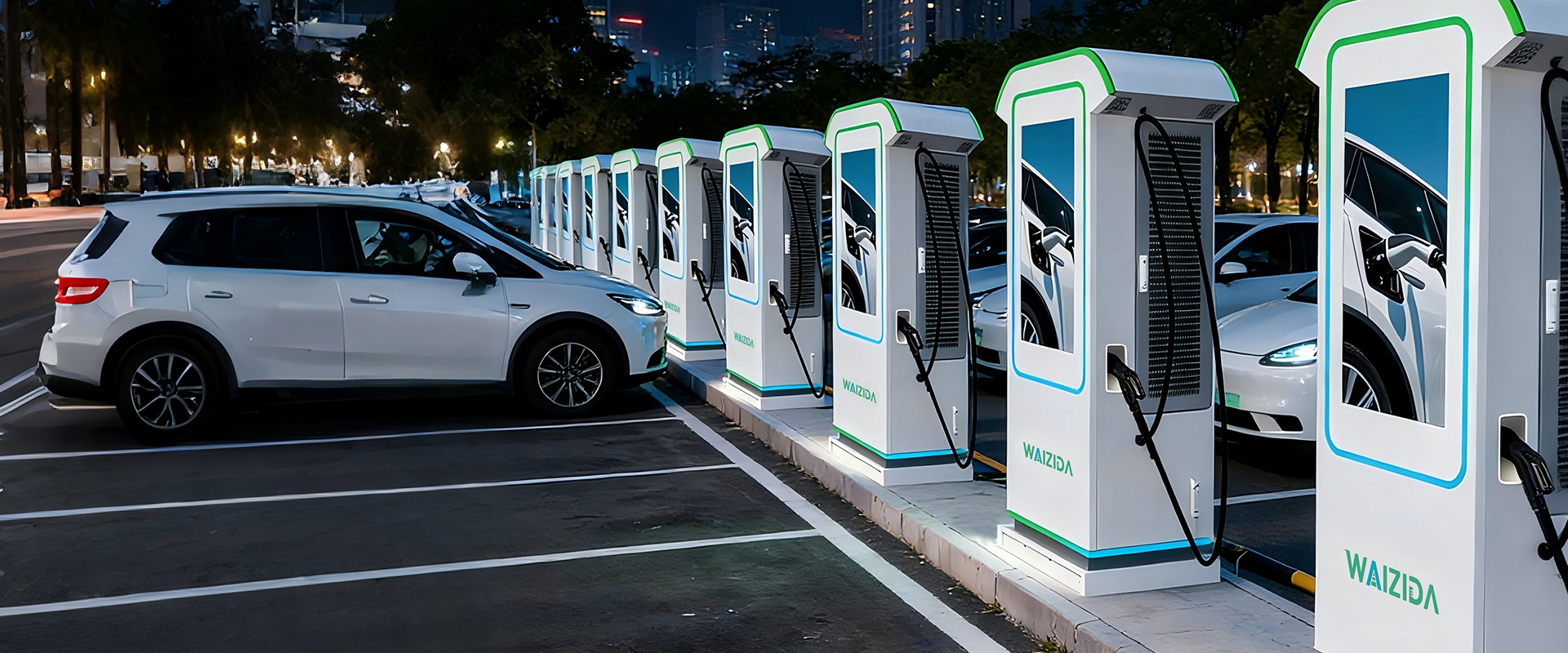

Global Charging Network Operators

For large-scale charging network deployment, the Model D8 offers full OCPP protocol compatibility, remote cloud management, and batch firmware update capabilities, fully compliant with international safety standards to meet the mass fast charging demands of urban public infrastructure.

Fleet & Shared Mobility Service Hubs

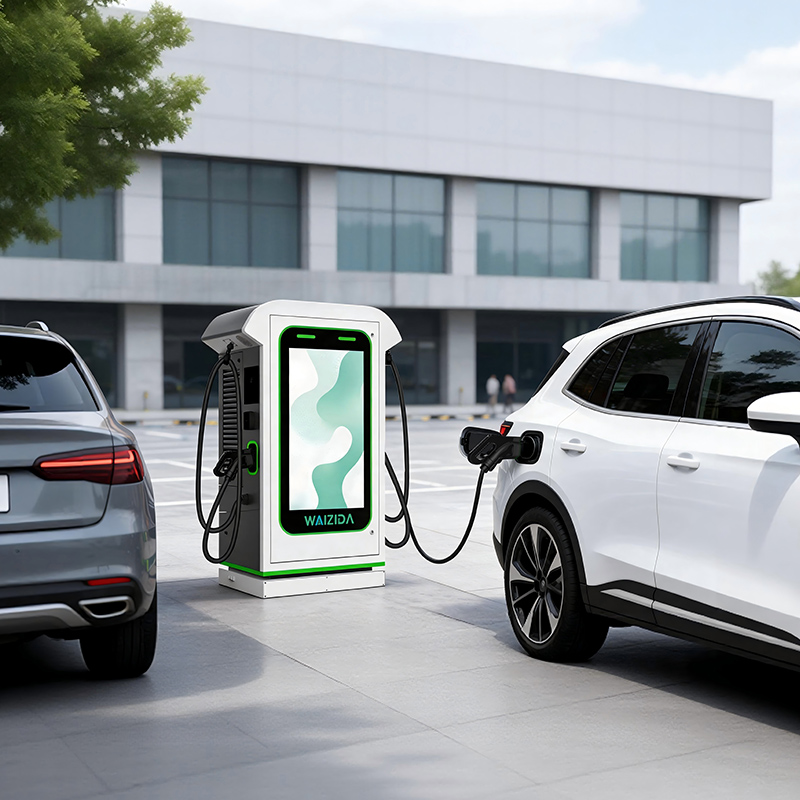

Configured with dynamic power allocation, RFID authorization, and enterprise account management, this high-power EV charging station enables unified management of simultaneous multi-vehicle charging, drastically improving energy replenishment efficiency for operational fleets and shared mobility services.

Corporate Campuses & Destination Charging Locations

For shopping malls, highway service areas, gas stations, and corporate campuses, the solution offers integrated POS terminal support, multi-mode charging (time/amount/kWh), and a high-brightness outdoor advertising screen, catering to temporary top-up needs while unlocking additional revenue streams.

Key Operational Advantages for Commercial Operators

Dual Revenue Stream & Enhanced Customer Engagement

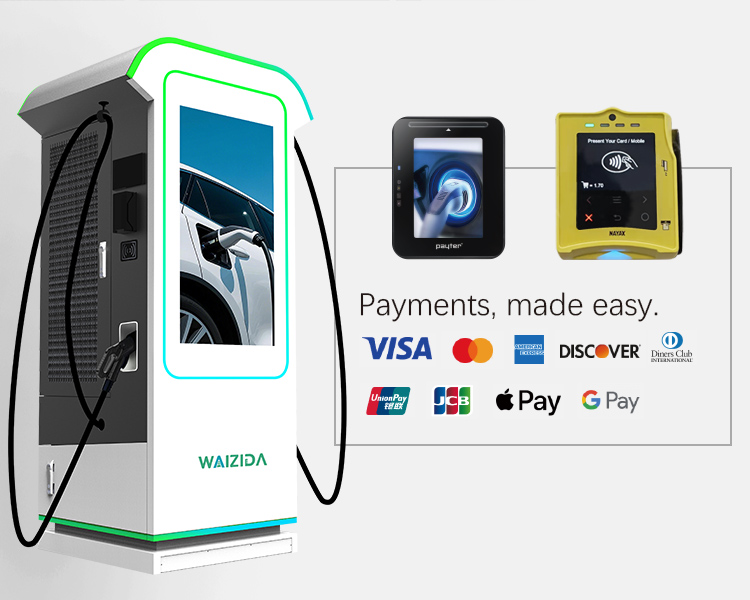

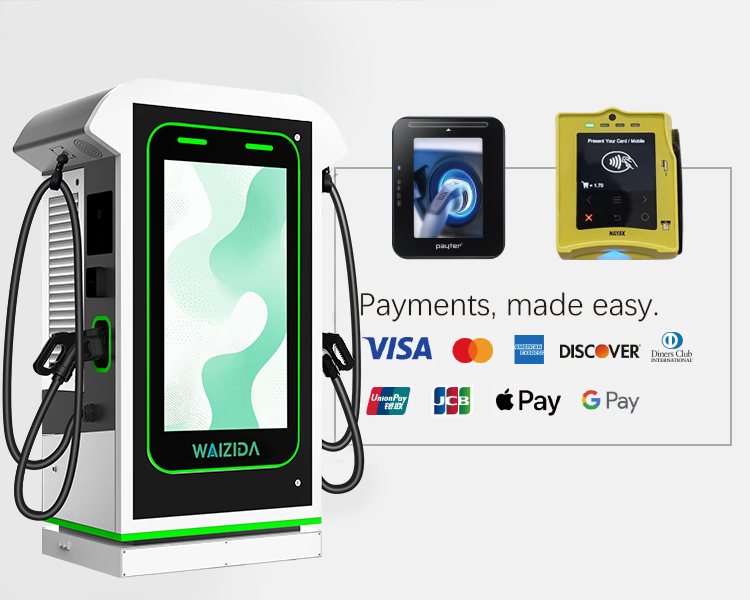

The integrated 43-inch 2000cd/㎡ advertising display supports image, video, and looping ad content, turning charging infrastructure into a high-value advertising asset to create a dual revenue model for operators. It supports multiple payment methods including RFID, mobile APP, and optional POS terminals (NAYAX/PAYTER/PAX compatible), enabling fast, secure transactions to elevate user experience in high-traffic locations.

Centralized Smart Management & Reduced OPEX

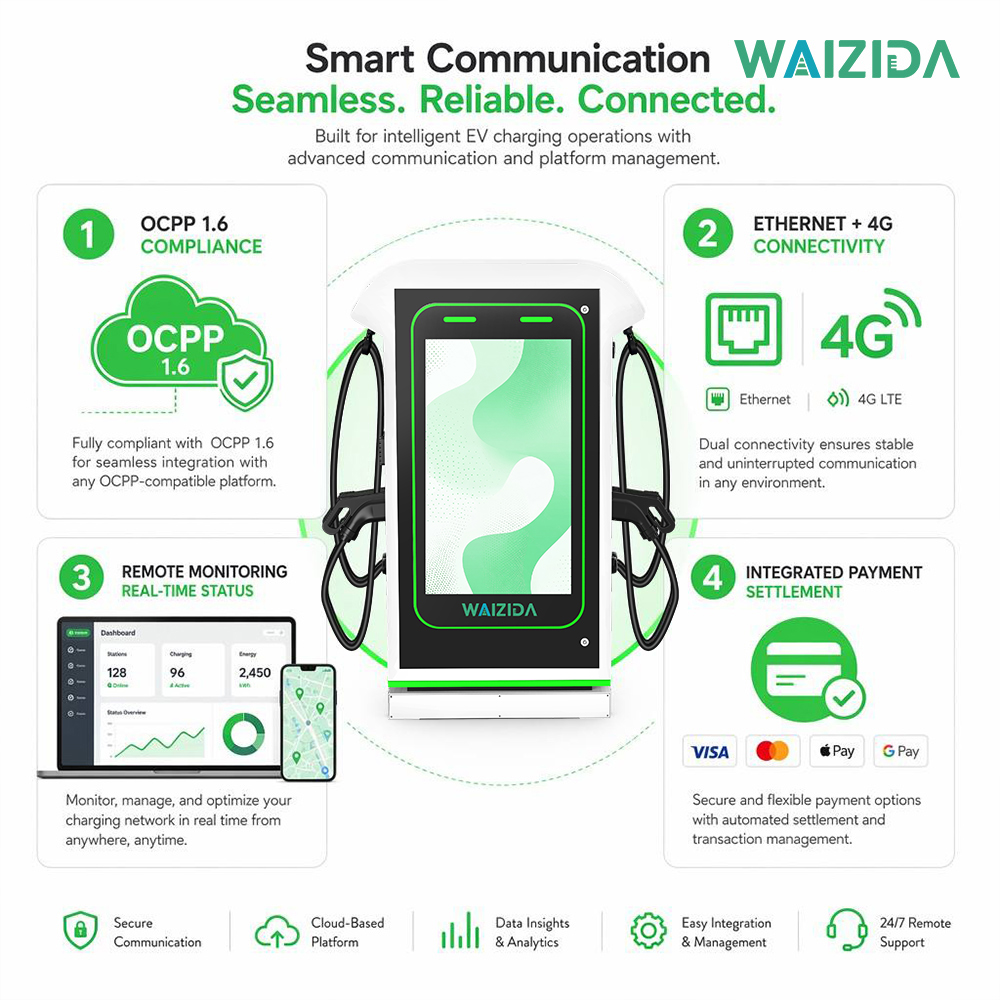

Via the OCPP-compatible smart cloud portal, operators can monitor, control, and manage revenue for all chargers in real time, with remote diagnostics and firmware updates eliminating unnecessary on-site maintenance. Intelligent dynamic load balancing optimizes power distribution, reducing costly grid upgrades and adapting to existing site electrical infrastructure.

Durable, Low-Maintenance Design

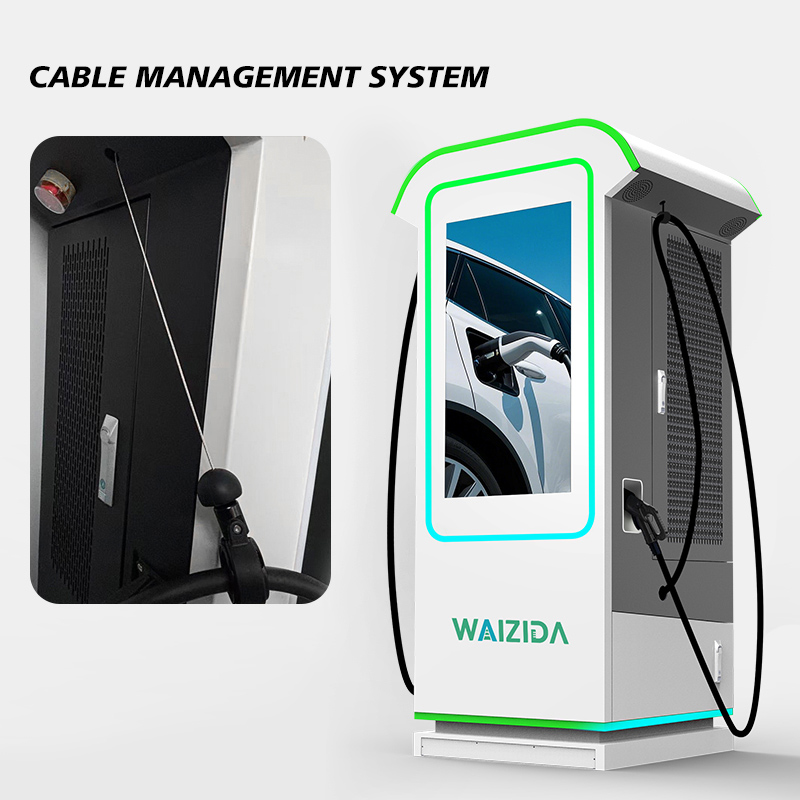

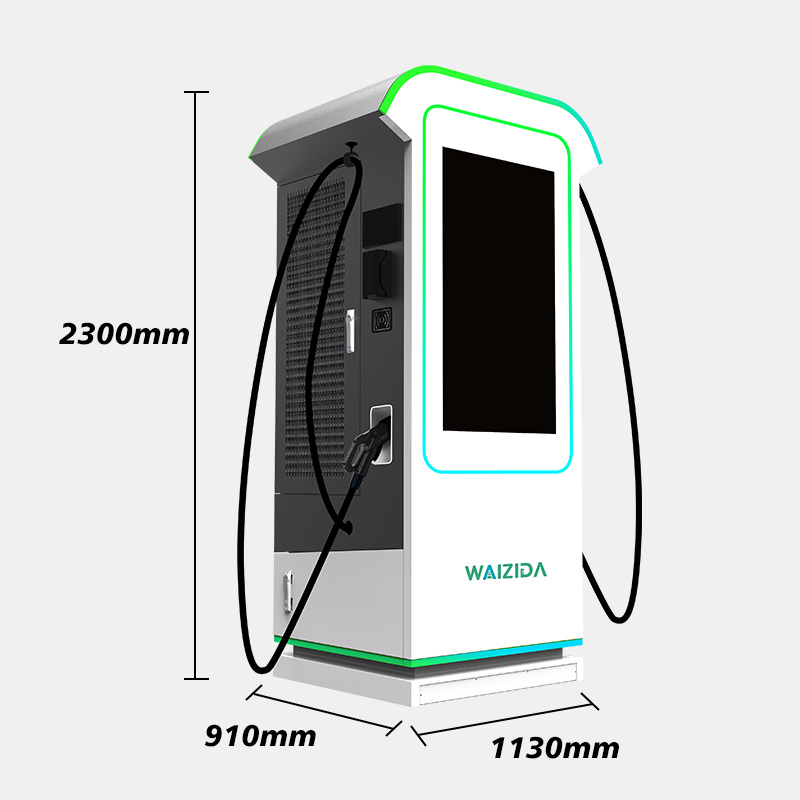

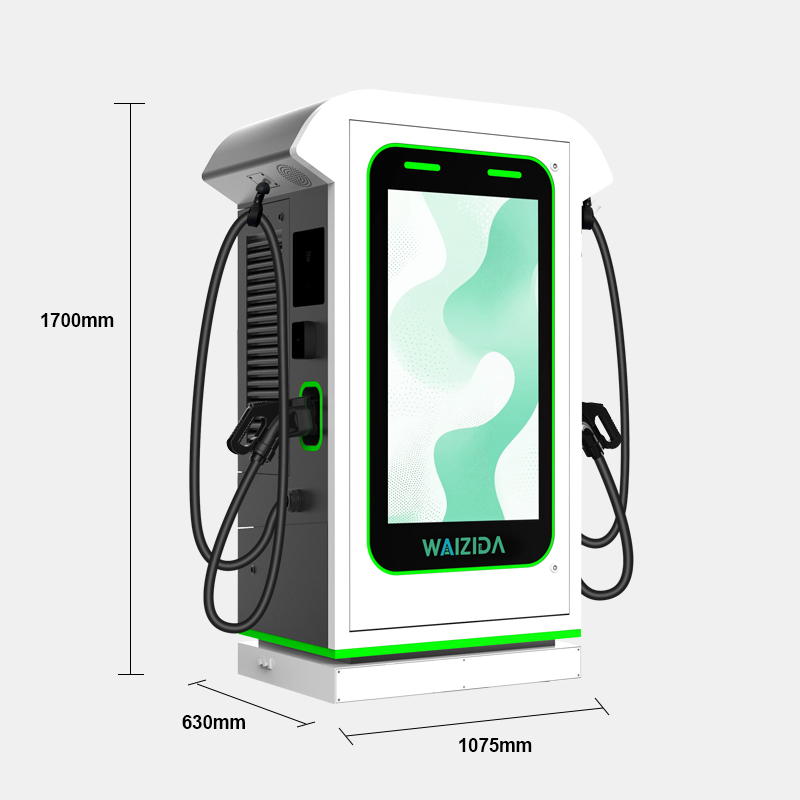

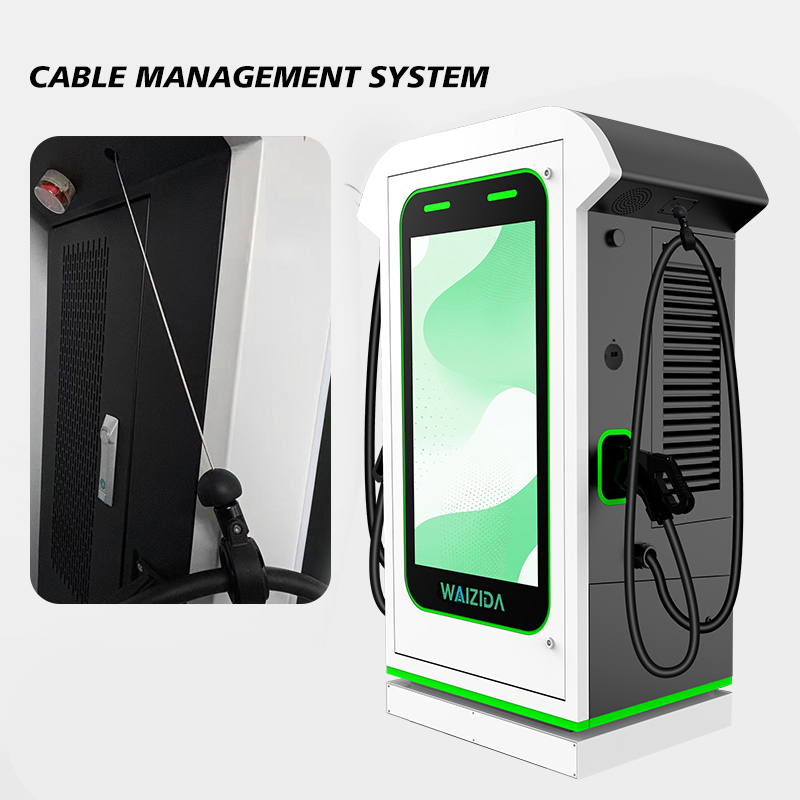

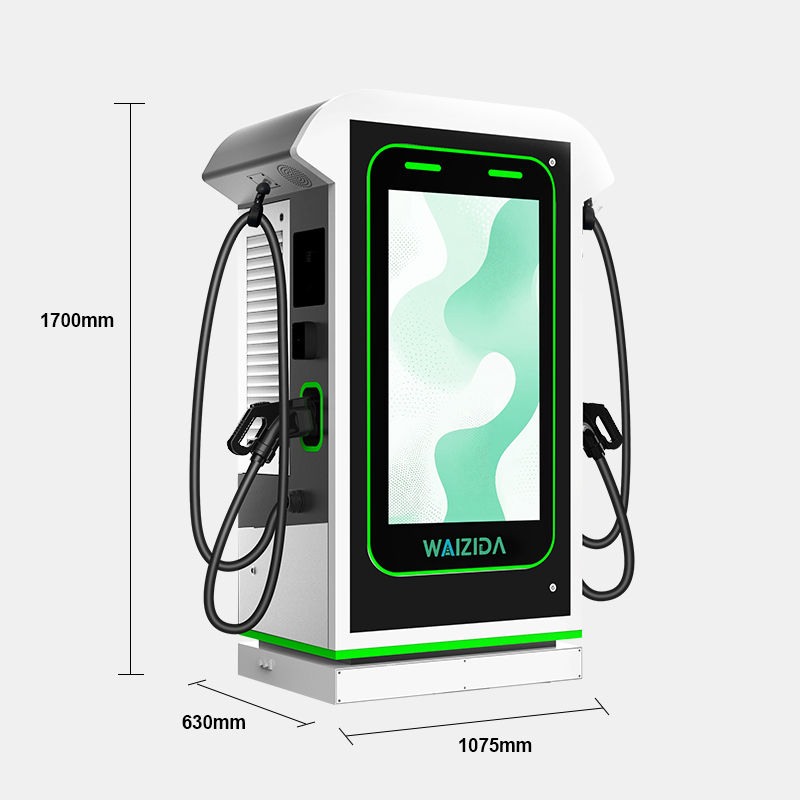

The floor-mounted industrial-grade design features an optional ergonomic cable management system to reduce cable wear and trip hazards, with simple installation and routine maintenance manageable by a single qualified technician. Backed by a 2-year standard warranty, it delivers consistent, reliable performance for long-term commercial deployment.
