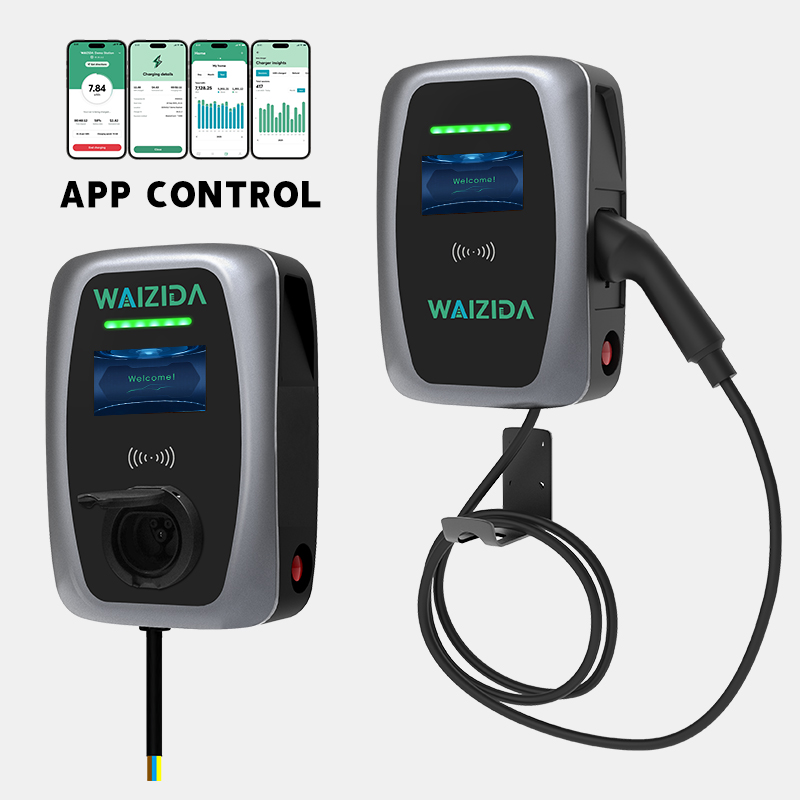

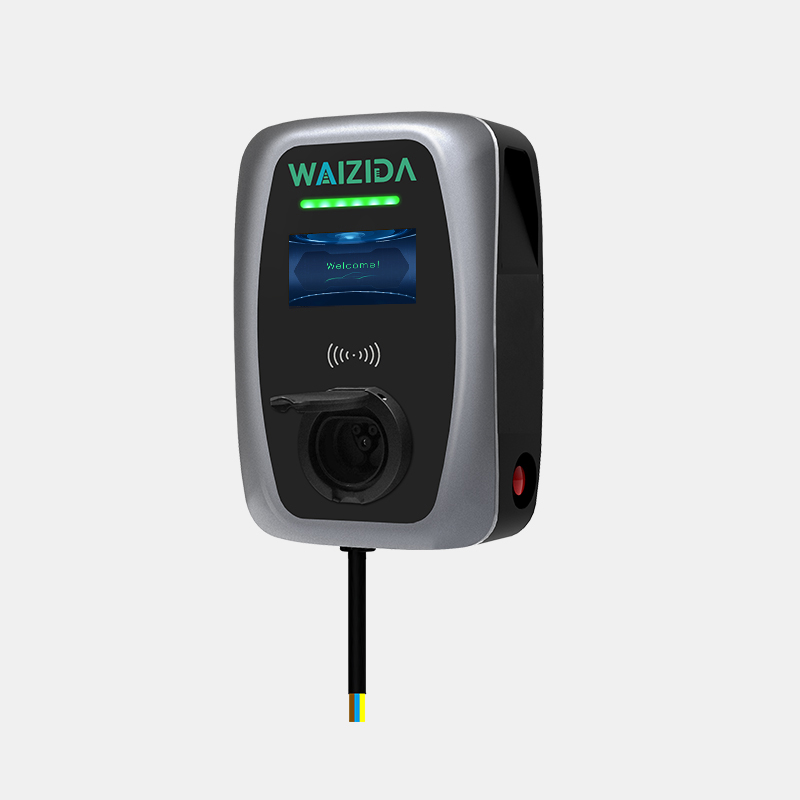

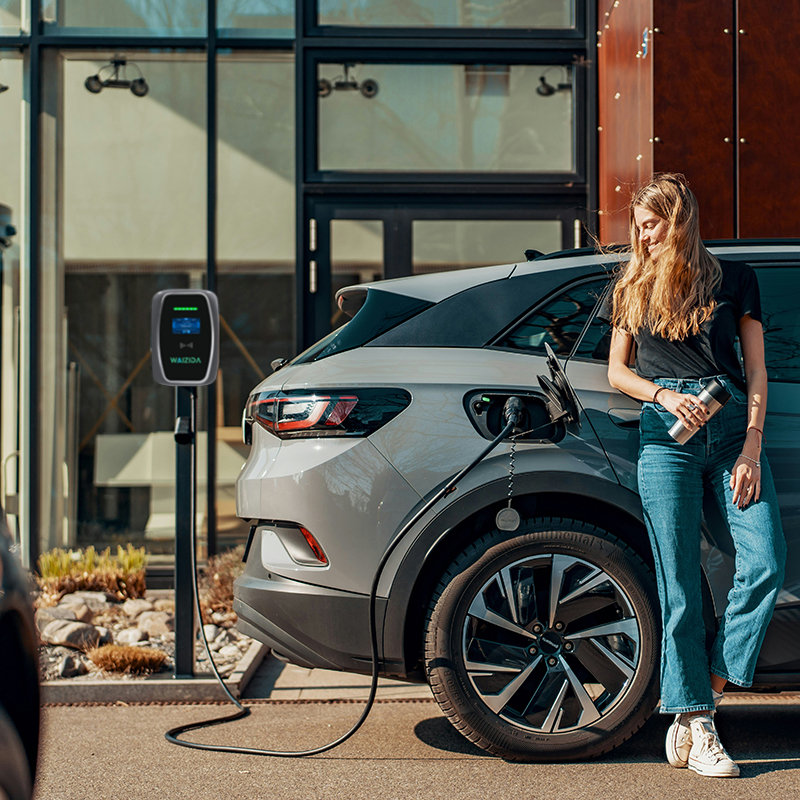

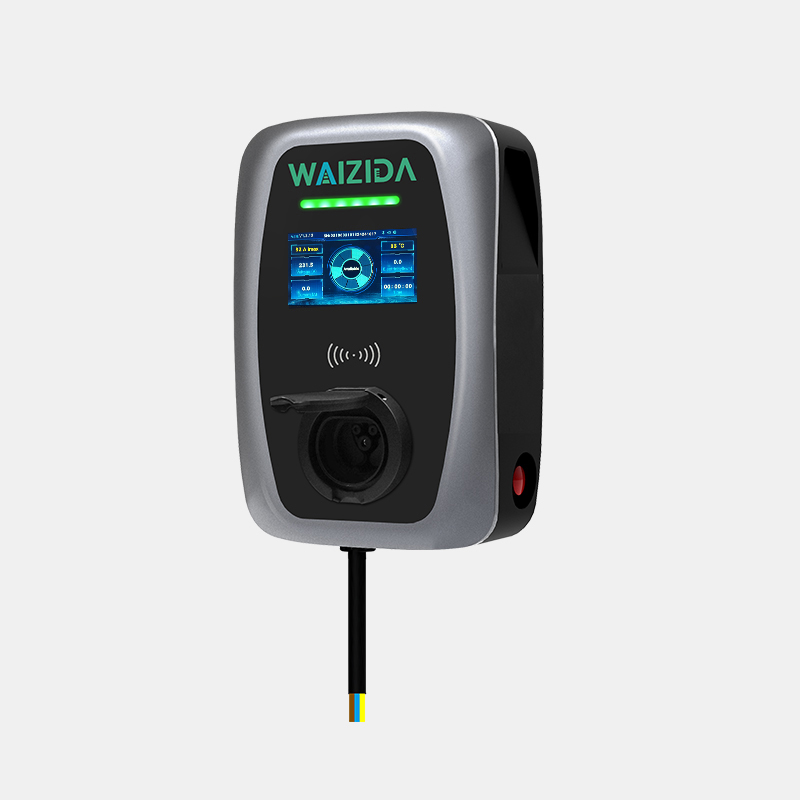

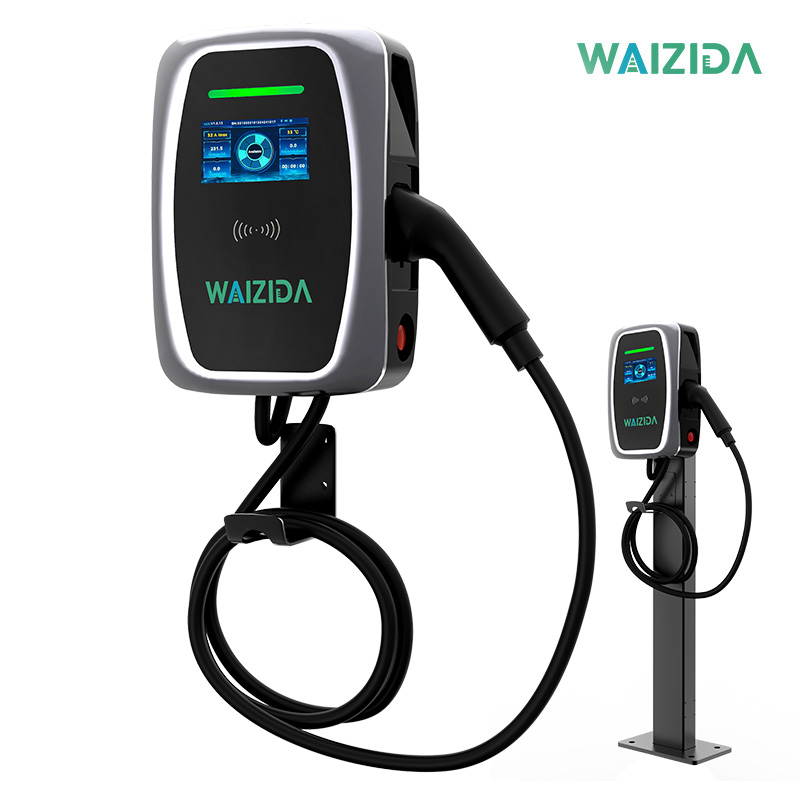

The WAIZIDA Model A EV Charging Station is a versatile, intelligent AC EV charging solution designed to deliver reliable, cost-effective charging infrastructure for a wide range of commercial and residential business applications. With configurable power levels of 7kW, 11kW, and 22kW, this compact, lightweight charger supports both wall-mounted and pole-mounted installation, making it the ideal choice for property managers, enterprise campus operators, hospitality businesses, and small-to-medium fleet operators seeking scalable, user-friendly EV charging infrastructure. Engineered to balance high performance with low total cost of ownership, the Model A adapts seamlessly to private residential parking, community public charging zones, commercial office parks, and destination charging sites, with customizable features to meet the unique needs of every business client.
At the heart of the WAIZIDA Model A EV Charging Station is a high-efficiency power system optimized for both single-phase and three-phase electrical grids worldwide. It supports input voltages ranging from 110V to 400V AC, with output current up to 32A, delivering stable power across 7kW, 11kW, and 22kW configurations to match the daily charging needs of most electric vehicles. The charger features a robust PC6610 housing rated for operation from -20℃ to 80℃, with an IP65 rating for the main control unit and IP67 rating for the charging connector, ensuring reliable performance in both indoor and outdoor environments. It comes standard with Type A 30mA AC + 6mA DC residual current protection, meeting the strictest global electrical safety requirements for commercial and residential installations.
This OCPP 1.6J ready AC EV charging station holds full international certification including CE, UKCA, FCC, ETL, and ENERGY STAR, with compliance to core global safety standards such as EN/IEC 61851-1, EN/IEC 61851-21-2, UL2231, and UL2594, enabling seamless deployment across Europe, North America, and global markets. It supports all mainstream charging connectors, including Type 2, SAE J1772, GBT, and NACS, with both tethered cable and socket options available. This universal design ensures compatibility with 99.5% of electric passenger vehicles on the road today, eliminating barriers for multi-site deployment and ensuring a consistent charging experience for all users.

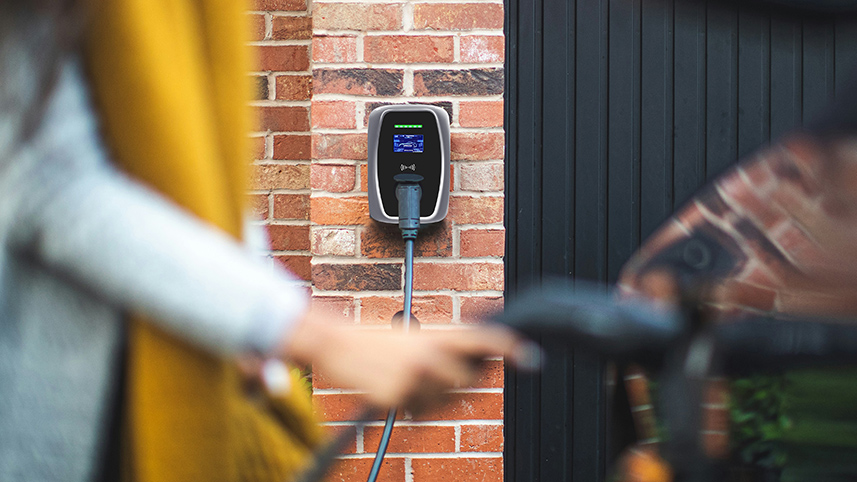

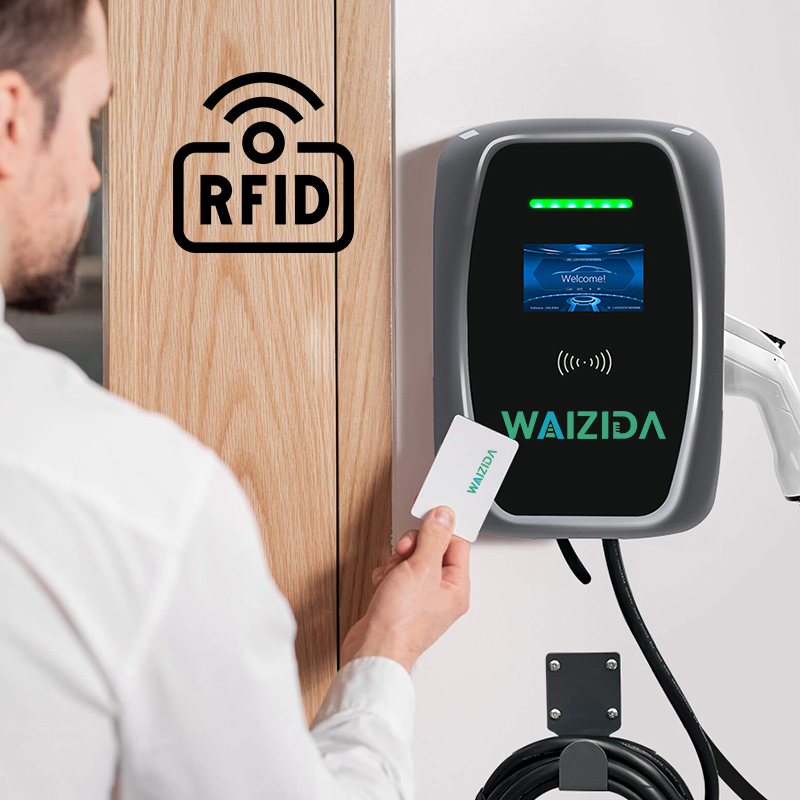

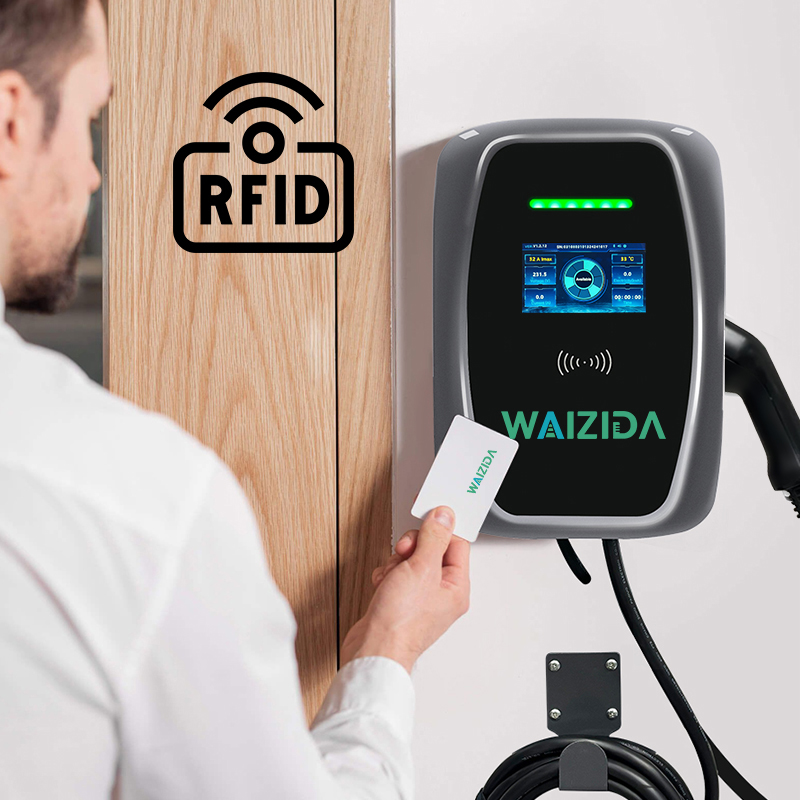

Perfect for residential property managers and homeowners’ associations, this version features built-in WiFi and Bluetooth connectivity, with full mobile APP control for scheduling, charging history tracking, and remote start/stop functionality. It also supports RFID card activation for simple, app-free operation, making it ideal for both private residential parking spaces and shared community charging zones.
Designed for professional charging operators and commercial facility managers, this configuration includes an Ethernet interface and full OCPP 1.6J protocol compliance, enabling seamless integration with centralized management platforms. It supports remote monitoring, real-time diagnostics, and flexible payment integration, making it perfect for deployment in office parks, retail centers, and public parking facilities.
Engineered for apartment complexes, corporate campuses, and sites with multiple charging points, this version features intelligent dynamic load balancing technology. It automatically adjusts charging power in real time across all connected chargers to prevent grid overload, eliminating the need for costly electrical system upgrades and enabling safe, efficient deployment of multiple charging stations on a single electrical supply.
Exclusive to the European market, this all-in-one configuration supports seamless switching between residential and commercial operating modes via the mobile APP, making it the ideal solution for mixed-use sites such as bed-and-breakfasts, small retail locations, and home-based businesses that require both private and public charging functionality.
The WAIZIDA Model A EV Charging Station delivers measurable business benefits that reduce operational costs and drive long-term value for commercial operators. First, its compact, lightweight design (5.5-9.6kg) and flexible wall/pole mounting options simplify installation, cutting upfront deployment costs and reducing construction timelines for multi-site projects. Second, it comes with an industry-leading 3-year warranty and full remote technical support, minimizing long-term maintenance expenses and ensuring maximum uptime. Third, its intelligent load management capabilities enable operators to deploy more charging stations without expensive grid upgrades, maximizing the number of charging points available and increasing revenue potential. Fourth, the integrated mobile APP and optional OCPP connectivity provide full visibility into charging usage, energy consumption, and fault alerts, streamlining day-to-day operations and reducing administrative overhead. Finally, its comprehensive suite of safety protections, including over-voltage, over-current, over-temperature, short circuit, and lightning protection, minimizes safety risks and liability for operators, ensuring reliable, worry-free operation for years to come.
Specification | ||||
Model | Model A | |||
Electrical Properties | ||||
Voltage | 230V AC ±20% | 380V AC ±20% | 380V AC ±20% | 110V-240V |
Output Current | 32A | 16A | 32A | 48A |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Output Power | 7kw | 11kw | 22kw | 9.6kw |
Residual current protection | Type A +6mA DC/ CCID20 | |||
Design | ||||

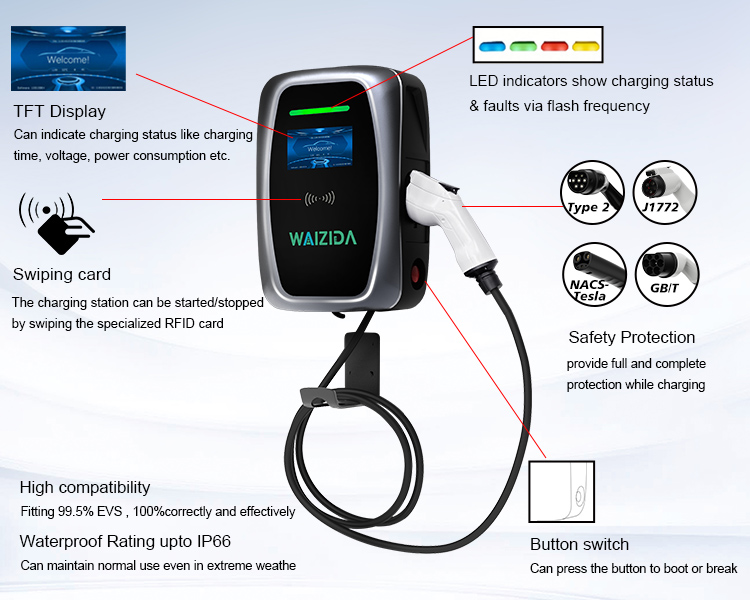

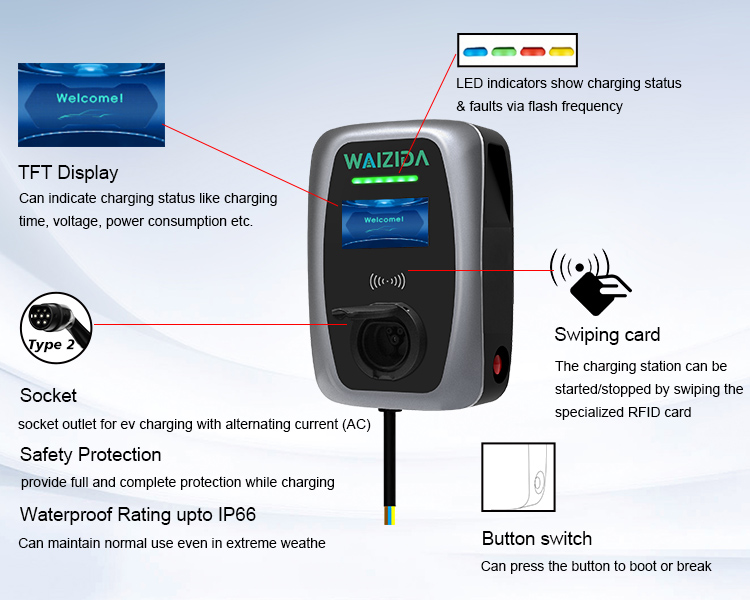

Interface | 4.3" TFT Screen & LED Indicator Lamp | |||
Charging Outlet | 5M charging cable with type 1/2 plug | |||
Power incoming line | 1M | |||
Housing Material | PC6610 (-20℃ to 80℃) | |||

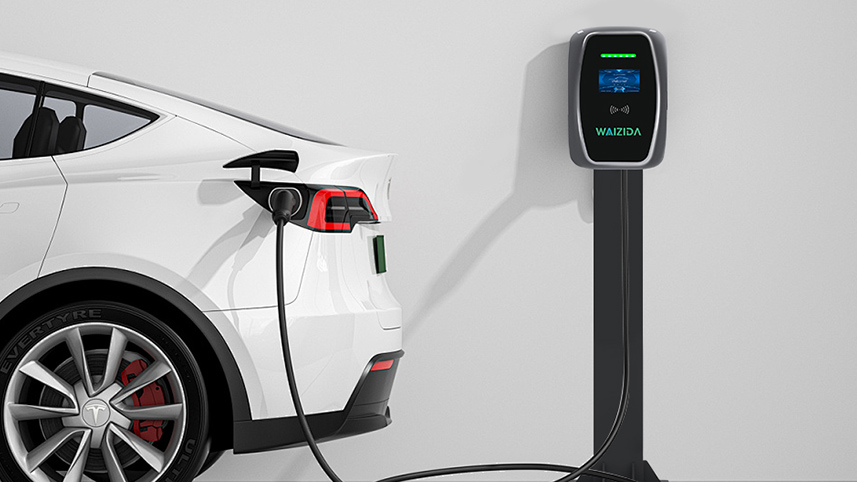

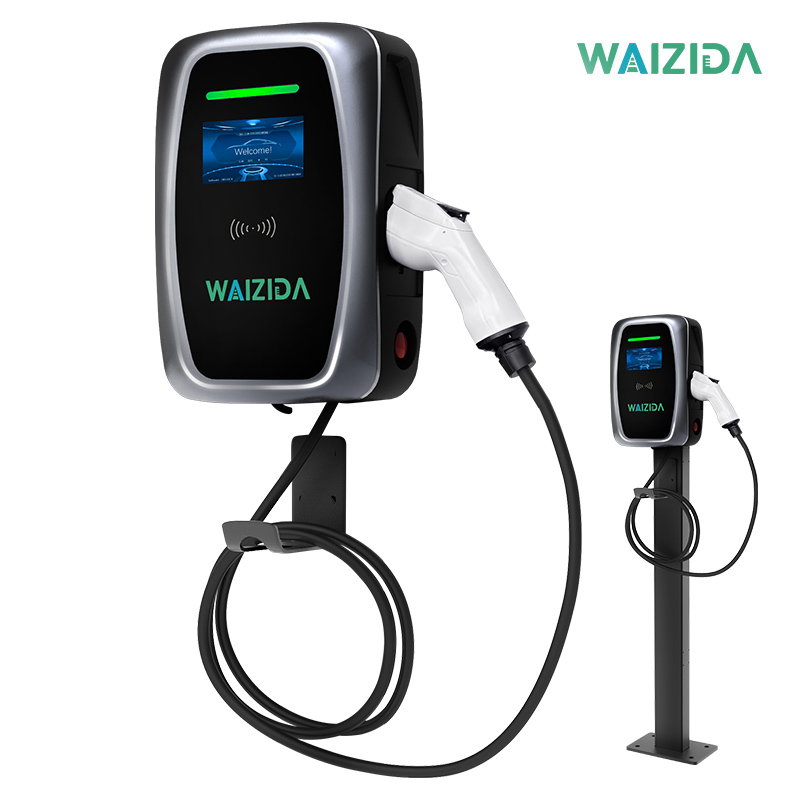

Installation Method | Wall-mount/ Pole-mounted | |||
Safety | ||||
Safety Protection | Emergency Stop/ Over Voltage Protection/ Under Voltage Protection/Over Current Protection/ Leakage Current Protection/ Ground Protection/Over Temperature Protection/ Short-circuit Protection/ Lightning Protection | |||
Electricity Metering | Support, but not as basis for billing | |||
Safety Standard | EN/IEC 61851-1, EN/IEC 61851-21-2, EN62196 | |||
UL2231, UL2594, UL991, UL1998, FCCpart15B, NB33008.1 | ||||
Certification | CE/ UKCA/ ETL/ CSA/ ENERGY STAR | |||
Warranty | 3 years | |||
Environmental Performance | ||||
Protection Level | Connector IP67/ Control Box IP65 | |||
Application Site | Indoor/ Outdoor | |||
Working temperature | -20℃ to 50℃ | |||
Working humidity | 5%-95% | |||
Functionality | ||||
Network Gateway | Bluetooth and WIFI as default | |||
Mobile APP | Support | |||
Emergency Button | Support | |||
Packing Details | ||||

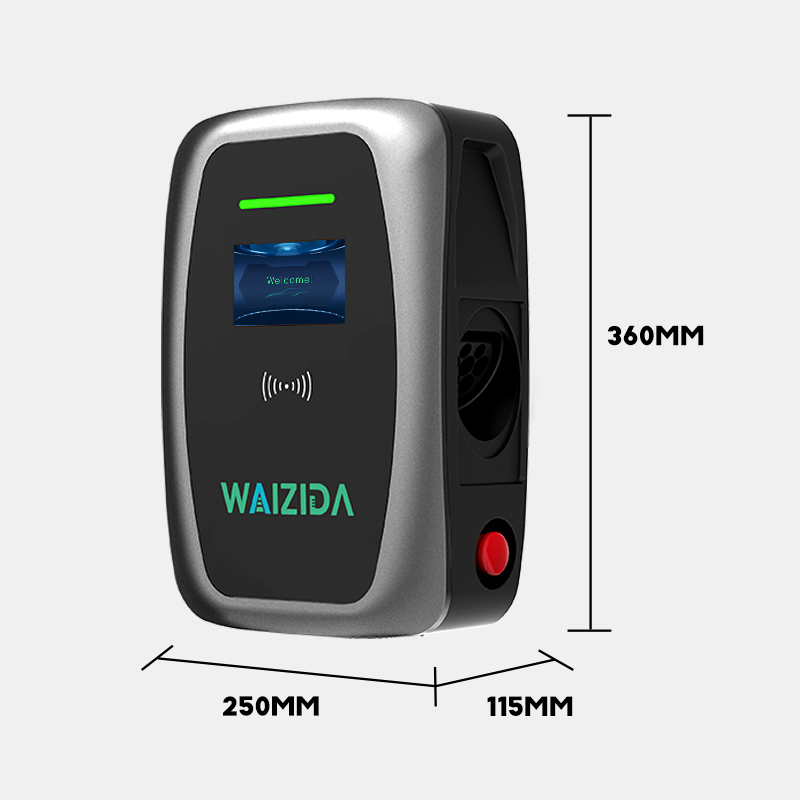

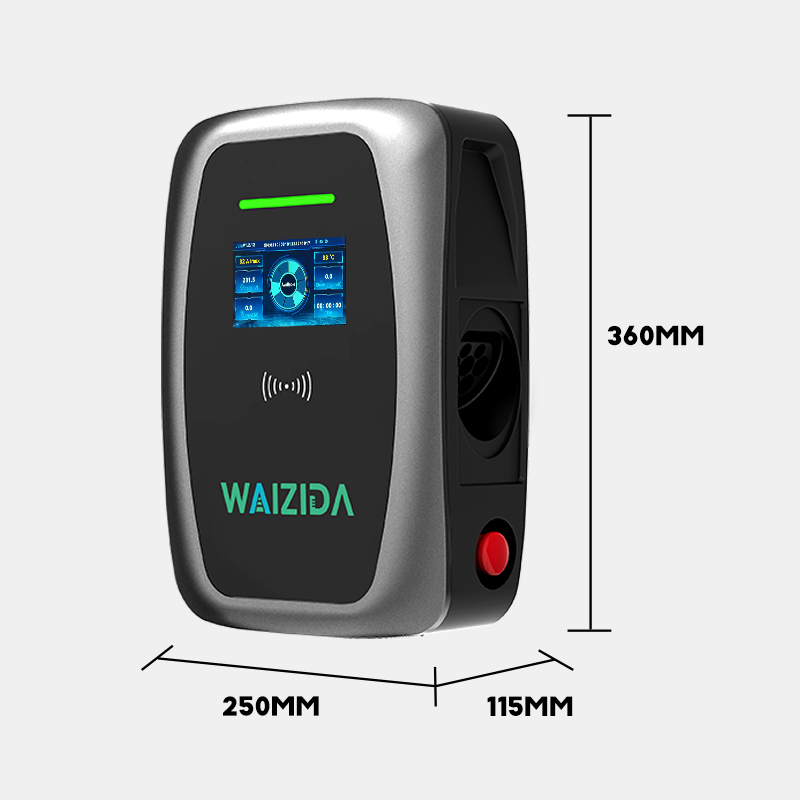

Product Size | 360*250*115mm (L*W*H) | |||
Product Weight | 5.5KG | 6.5KG | 7.5KG | 9.6kg |
Optional canfig | ||||
Built-in PEN Protection | Only European standard as optional(No Earth Rod Needed) | |||
TLS 1.3 | Only European standard as optional | |||
OCPP 1.6J | as optional | |||
Ethernet | as optional | |||
4G | as optional | |||
RFID | as optional | |||
Dynamic Load Balancing | RS485 meter/CT-Clamp as optional | |||
