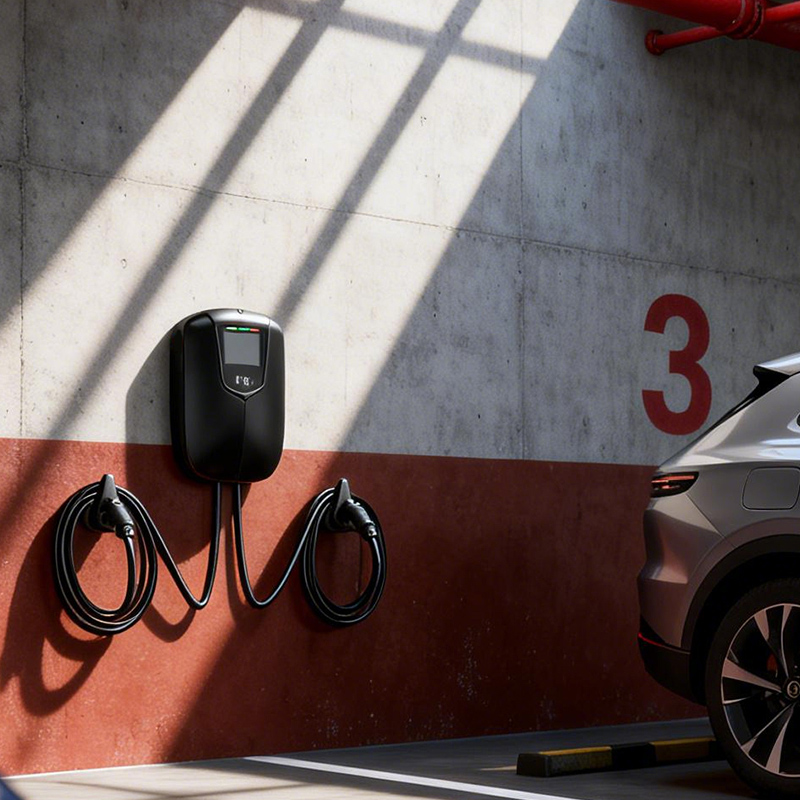

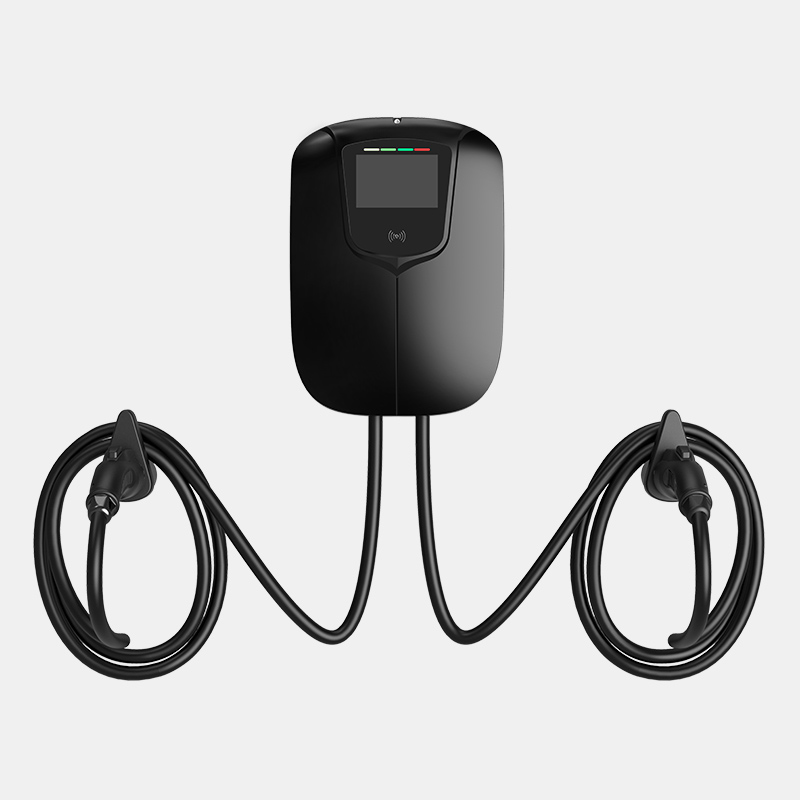

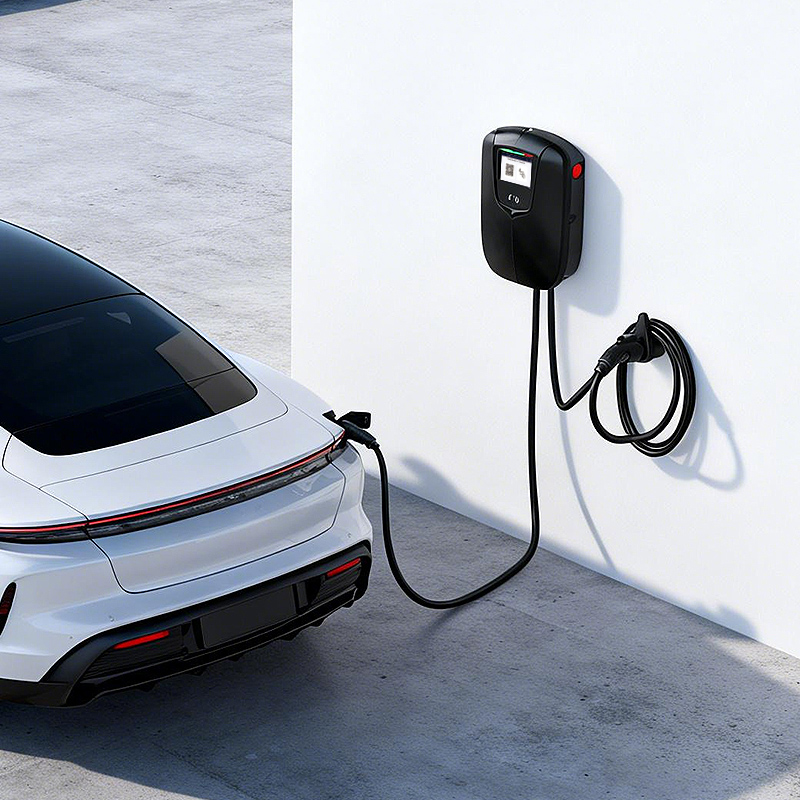

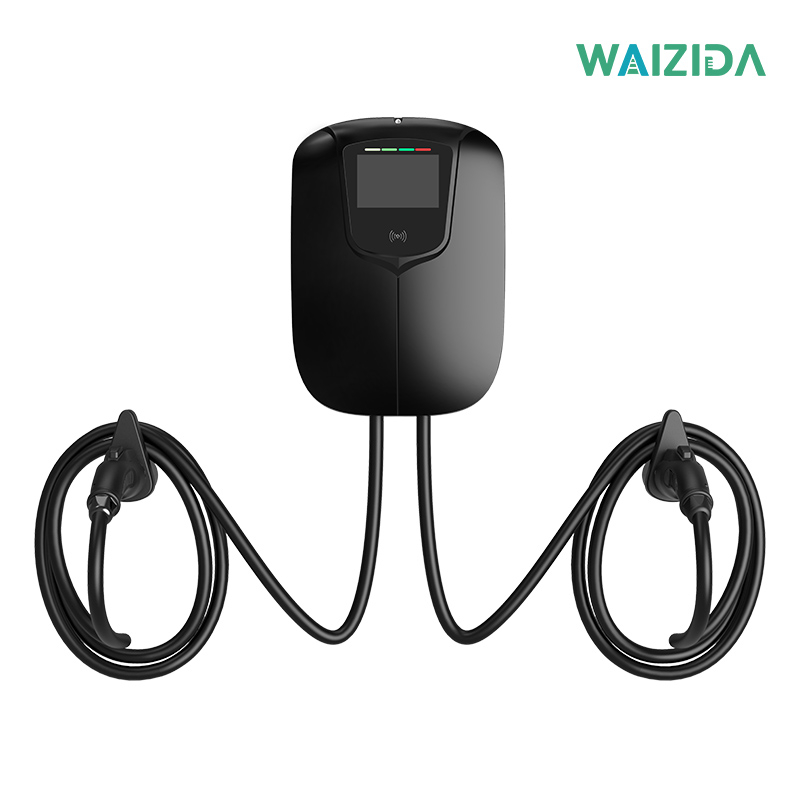

The Waizida EV charging station provides reliable, smart, and efficient charging for EV owners. With flexible power options and advanced intelligent features, it is suitable for both residential and commercial charging applications.

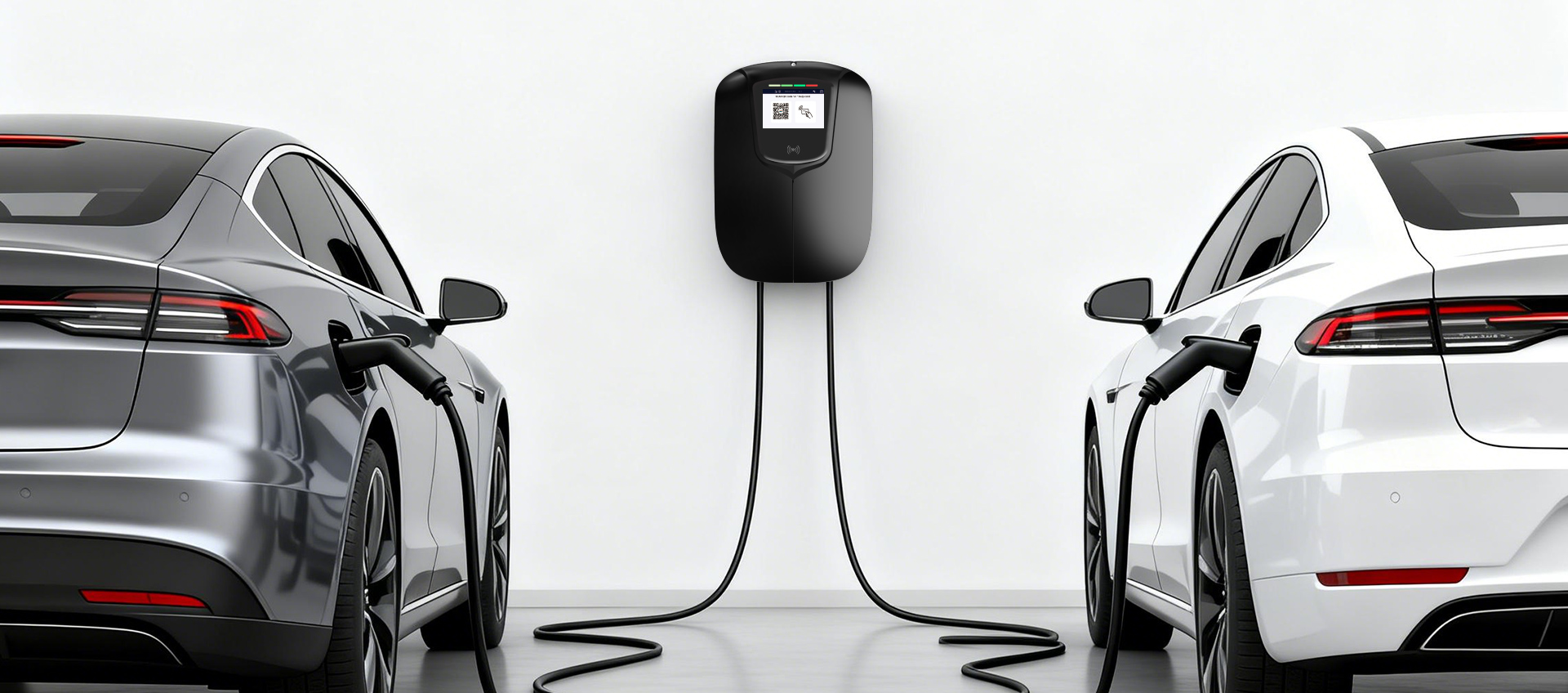

Dual-Gun Simultaneous Charging: Charges two cars in parallel, max efficiency.
Offers charging capacities from 22KW(11KW*2) to 44KW(22KW*2) / 96A( 48A*2) to 160A(80A*2) to meet the rapid charging needs of different vehicles.
01
06
Supports OCPP1.6 J protocol (OCPP2.0 optional)
RFID (mifare iso& IEC 14443A) user interface
WIFI, Ethernet, or 4G (optional) for remote monitoring and management
Specification
Model
Model H
Electrical Properties
Voltage
400V AC ±20%
400V AC ±20%
240V AC ±20%
240V AC ±20%
Output Current
16A*2
32A*2
48A*2
80A*2
Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Output Power
11kw*2
22kw*2
11kw*2
20kw*2
Residual current protection
Type B (Type A +6mA DC)/ CCID20
Design
Interface

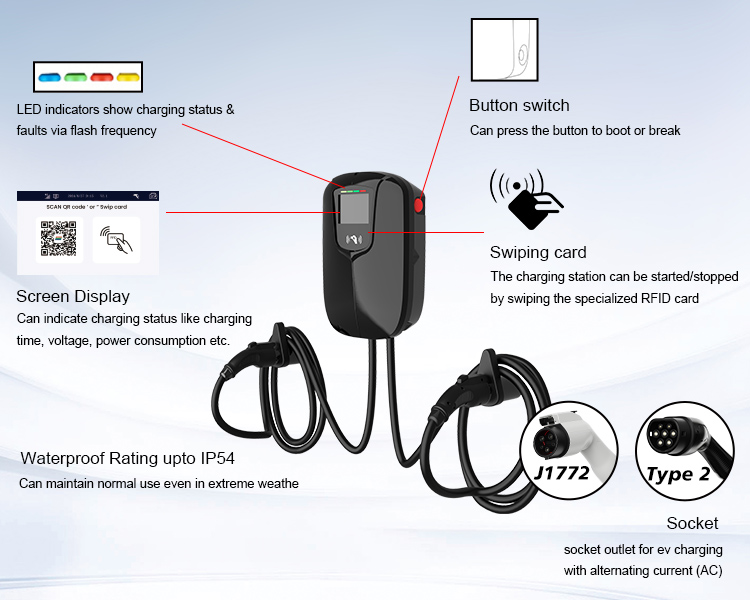

4.3" LCD Screen & LED Indicator Lamp
Charging Outlet
5M charging cable with type 1/2 plug
Housing Material
Plastic PC+Temper glass front panel
Installation Method

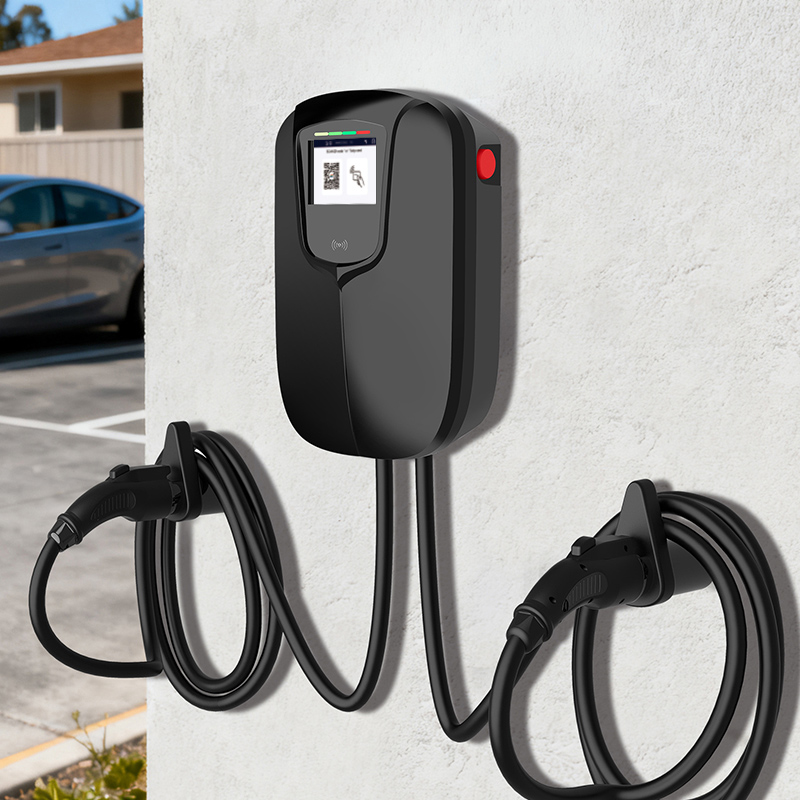

Wall-mount/ Pole-mounted
Safety
Safety Protection
Emergency Stop/ Over Voltage Protection/ Under Voltage Protection/Over Current Protection/ Leakage Current Protection/ Ground Protection/Over Temperature Protection/ Short-circuit Protection/ Lightning Protection
Electricity Metering
Support, but not as basis for billing
Safety Standard
EN/IEC 61851-1, EN/IEC 61851-21-2, EN62196
UL2231
Certification
CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Warranty
2 years
Environmental Performance
Protection Level
IP54, IK08
Application Site
Indoor/ Outdoor
Working temperature
-20℃ to 50℃
Working humidity
5%-95%
Functionality
Network Gateway
WIFI/ Ethernet/ OCPP1.6J as default
Ethernet
Support
RFID
Support
Emergency Button
as optional
Packing Details
Product Size

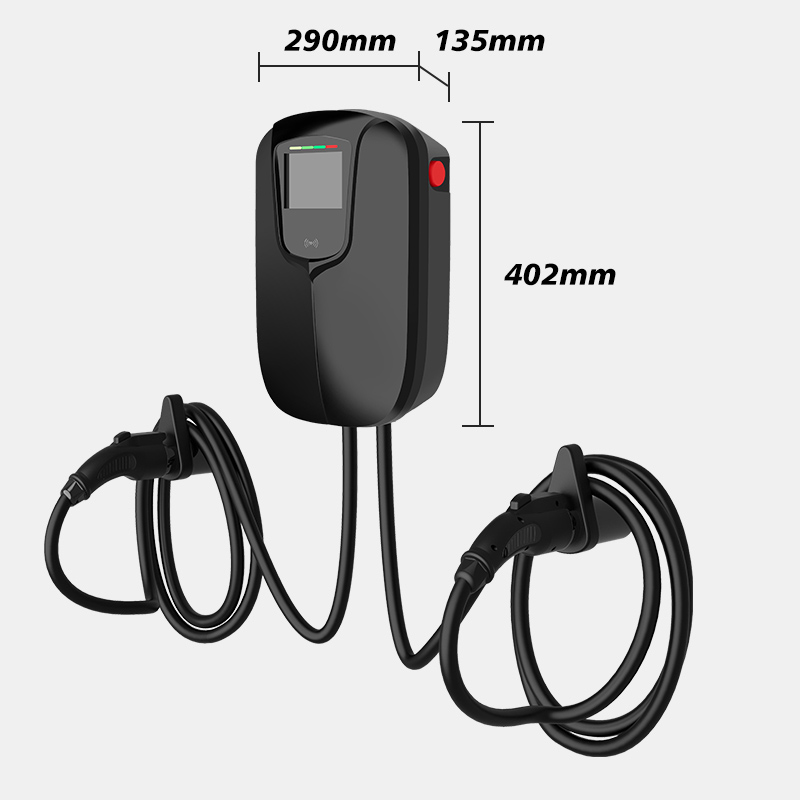

402*290*135mm (L*W*H)
Product Weight
8.5KG
9.2KG
8.5KG
9.2kg
Optional canfig
Built-in PEN Protection
Only EU standard as optional (No Earth Rod Needed)

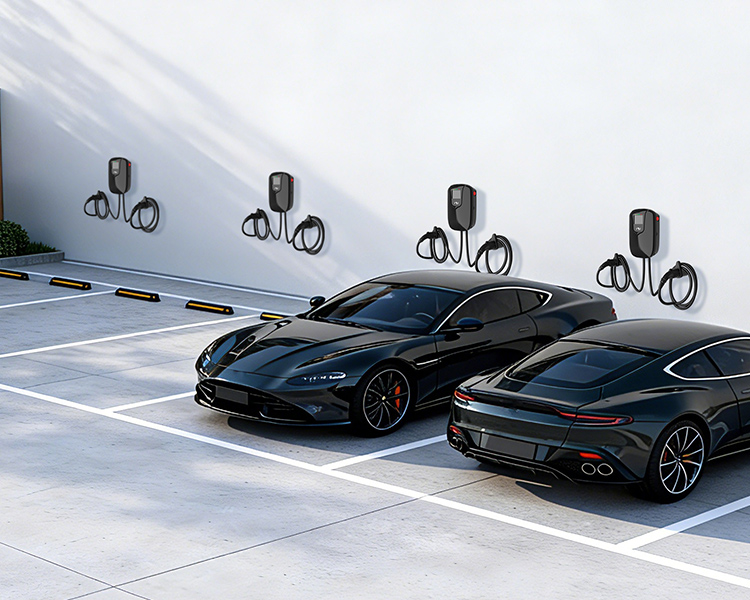

Universal for public hubs | Fast, convenient EV charging
Business bulidings & factories/ Shopping mall/ Expressway service areas / Residential bulidings/ Bus, Vans, Truck fleet/ Public charging stations

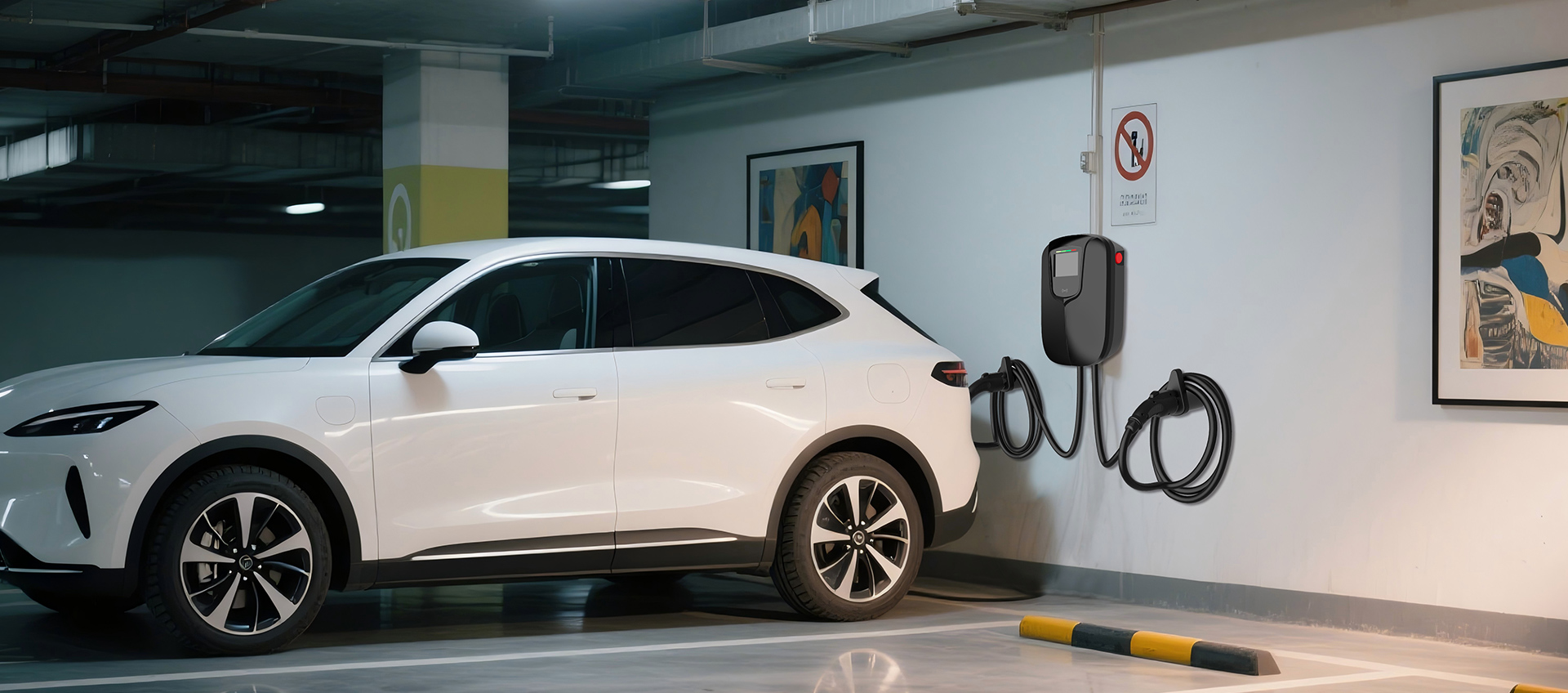

The Dual Gun AC EV Charger is suitable for extensive application in parking lots, shopping centers, residential communities, gas stations and other public charging venues, supplying convenient and high-efficiency charging services for EV users.
