Maximum Power: 7kW / 11kW / 22kW | US Version: 9.6kW (48A) Functions: Bluetooth + APP Control | RFID Optional Connector: Type 2 / GBT / SAE J1772 Voltage: 230V AC+10% / 400V AC+10% RCD Type: Type A / Type A 30mA AC+6mA DC/CCID20 Mounting Options: Wall-Mounted/Pole-Mounted Application: Indoor & outdoor Weight: 6~8kg(ABS lightweight body) Full Protection ODM&OEM Available

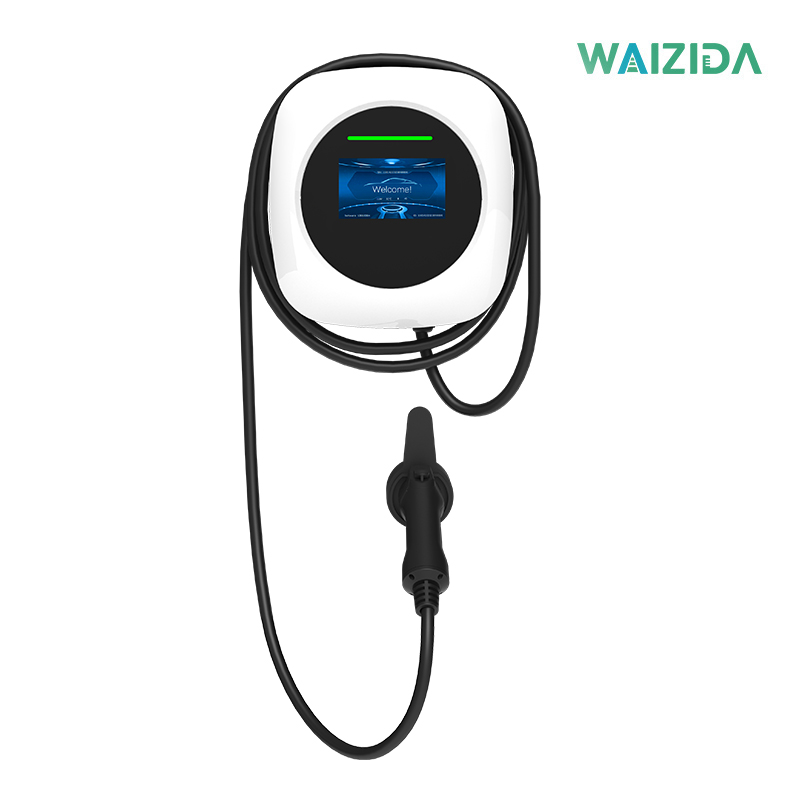

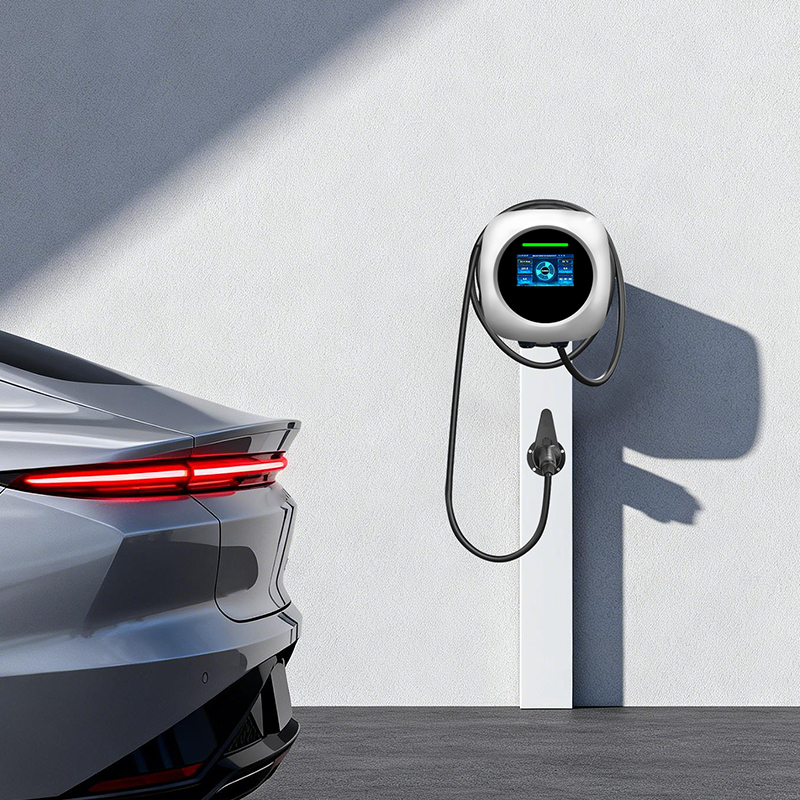

The WAIZIDA Model B is a high-value EV charging equipment solution designed specifically for Southeast Asia and emerging markets. As a reliable Level 2 AC charger, it delivers efficient overnight charging for daily commuting needs without requiring expensive grid upgrades. While our product line also includes high-power DC Charging Station options for rapid public charging, the Model C3 focuses on the most common use case: affordable, safe, and convenient AC charging at home or at work.
Model C3 features an PC+ABS high-strength engineering plastic housing, which is lighter than traditional metal or PC materials (as low as 4.5kg) while providing excellent insulation and weather resistance — ideal for the hot and humid climate of Southeast Asia. It does not carry the complex OCPP protocol, keeping costs low and setup simple. Model C3 is designed for private owners, small shops, homestays, and community properties who need a plug-and-charge experience without a backend operating system.
With the built-in Bluetooth module and free mobile APP, users can easily enjoy scheduled charging, real-time power monitoring, remote start/stop, and charging history. Even without Wi-Fi or 4G, Bluetooth near-field control works reliably. RFID card function is optional for property managers or landlords who need simple access control.
01
Truly Economical – No Unnecessary Features
As a pure AC charging station, Model C3 focuses on delivering exactly what residential and small commercial users need — and nothing they don't. Unlike high-cost DC Charging Station solutions that require expensive power electronics and grid upgrades. By omitting OCPP, 4G, and Ethernet modules, we eliminate platform license fees, data plan expenses, and backend maintenance costs. The result is a highly affordable EV charging equipment solution that still delivers reliable daily charging. Only the most practical Bluetooth + APP smart control remains — meeting 90% of personal and small business needs without forcing them to pay for unused enterprise features.
02
Level 2 AC Charger – The Sweet Spot for Daily Charging
As a Level 2 AC charger, Model C3 occupies the ideal position in the EV charging equipment spectrum. While a DC Charging Station can charge a vehicle in 20-40 minutes, it costs 5-10 times more and requires professional installation. At the other extreme, a standard wall outlet (Level 1) adds only 3-5 miles of range per hour. Model C3 as a Level 2 AC charger provides 6-10 times faster charging than Level 1, adding approximately 20-50 miles of range per hour depending on the vehicle. This makes it the perfect AC charging station for overnight home charging or workplace top-ups, balancing charging speed with low installation cost. For drivers who park for hours at a time, a Level 2 AC charger is the most cost-effective solution.
03

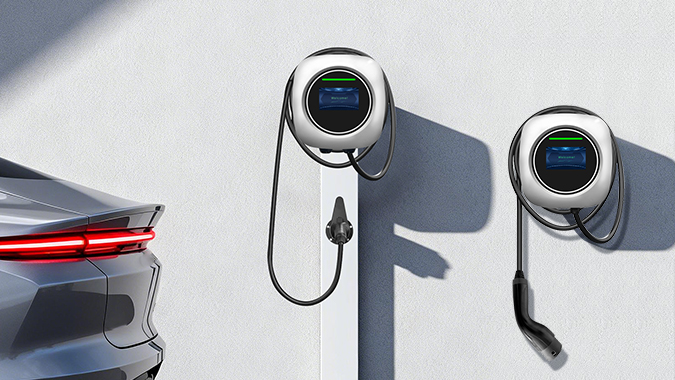

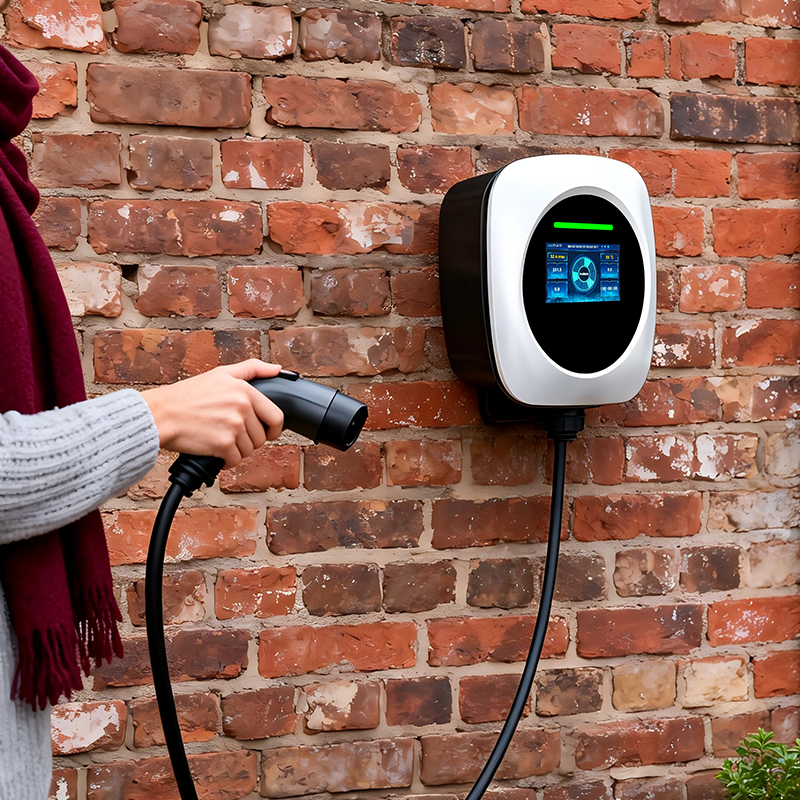

Wallbox EV Charger – Compact and Easy to Install
In the lead cloud platform establishment, will fully consider the site's beauty, corporate image, search engine preferences, website user experience and page conversion path, to ensure that each customer focus to create a highly transformed website.
04

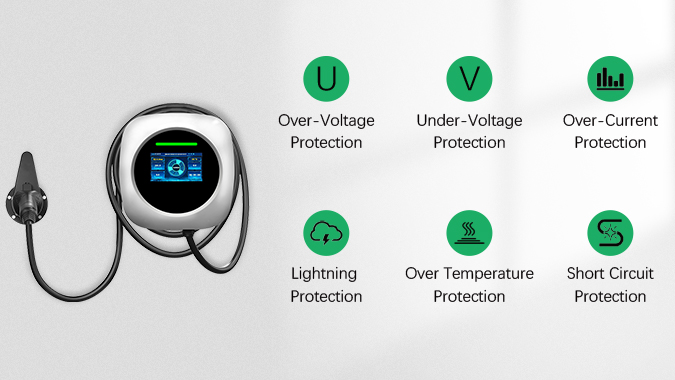

Full Protection

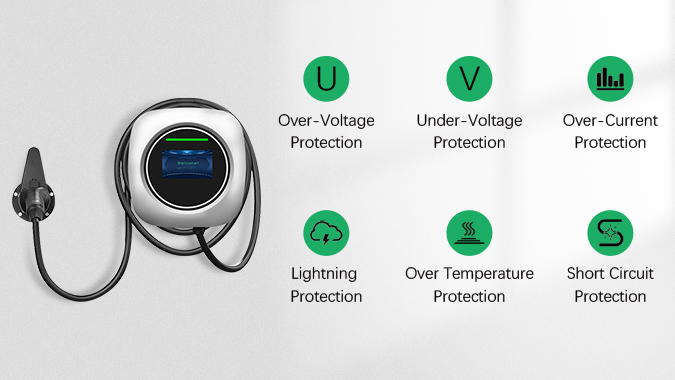

Safety is non-negotiable for any EV charging equipment, and Model C3 delivers comprehensive protection despite its economy positioning. This AC charging station features built-in Type A 30mA AC + 6mA DC leakage protection — the same residual current protection found in premium Level 2 AC charger products. Six major protections are standard: over-voltage, under-voltage, over-current, over-temperature, short-circuit, and lightning.
Specification
Model
Model C3
Electrical Properties
Voltage
230V AC ±20%
380V AC ±20%
380V AC ±20%
110-240V
Output Current
32A
16A
32A
48A
Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Output Power
7kw
11kw
22kw
9.6kW
Residual current protection
Type A +6mA DC/ CCID20
Design

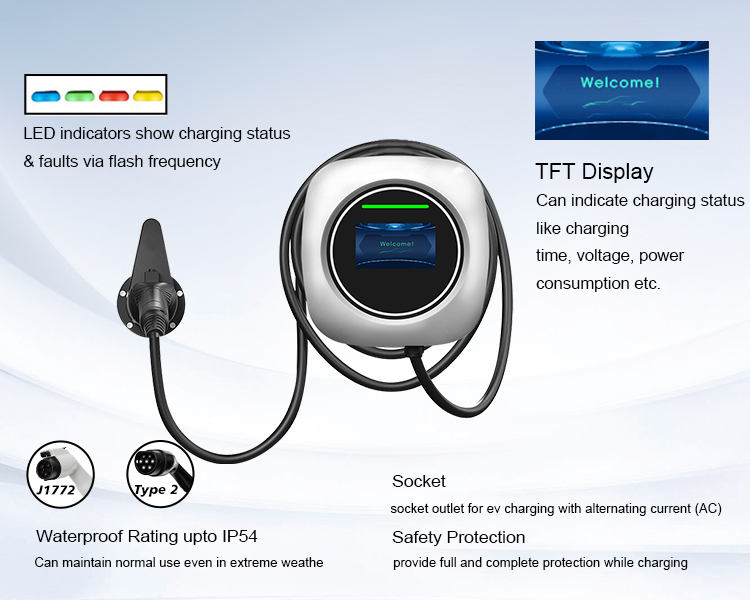

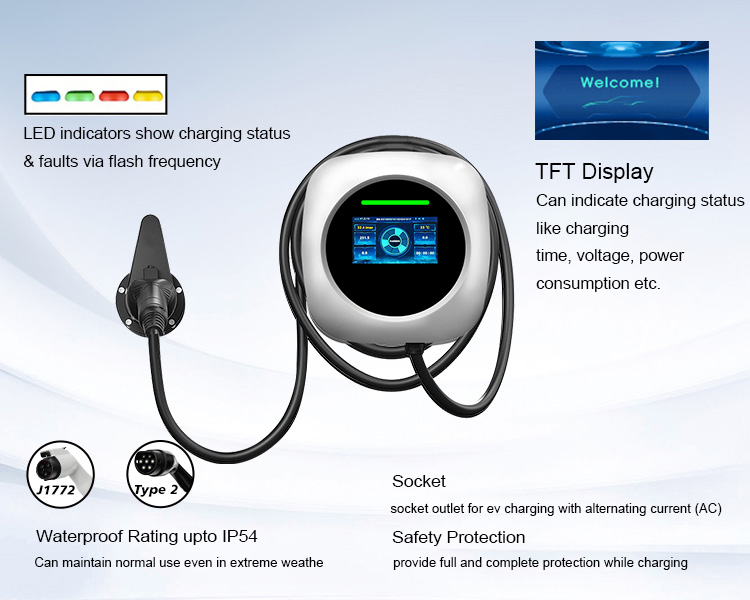

Interface
4.3" TFT Screen & LED Indicator Lamp
Charging Outlet
5M charging cable with type 1/ 2
Power incoming line
1M
Housing Material
PC+ABS (-20℃ to 50℃)

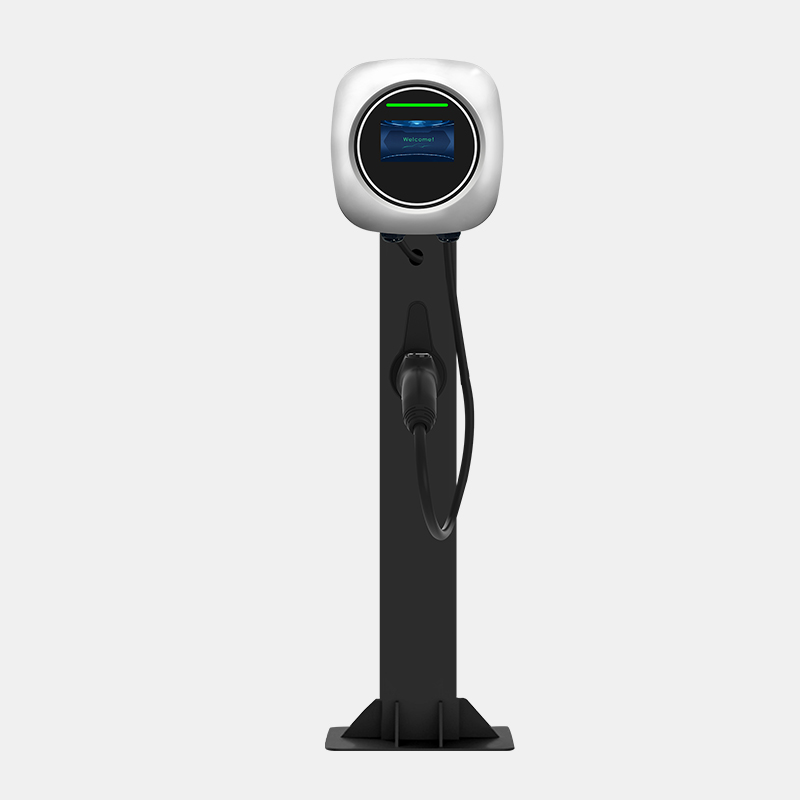

Installation Method

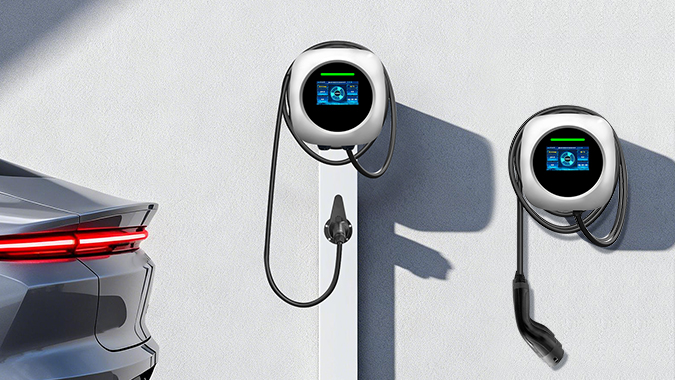

Wall-mount/ Pole-mounted
Safety
Safety Protection
Emergency Stop/ Over Voltage Protection/ Under Voltage Protection/Over Current Protection/ Leakage Current Protection/ Ground Protection/Over Temperature Protection/ Short-circuit Protection/ Lightning Protection
This Level 2 AC charger allows overnight charging that extends battery life. Use the APP to schedule charging during off-peak hours and save electricity costs.
Private Car Owners / Villa Residents
Deploy multiple AC charging stations at home. Use Bluetooth + APP to check each unit's charging records. Use RFID cards for different drivers. RFID Card – Simple Tap-to-Charge. The 48A US version charges Toyota bZ4X, Hyundai IONIQ, and similar models faster than standard 7kW chargers.
Home-Base
FAQs
Can I control the charger with my phone without internet?
Yes. The charger connects directly to your phone via Bluetooth – no Wi-Fi or 4G needed. After initial pairing, it will automatically connect when you approach the charger.
Does this AC charging station work with Tesla?
Yes. The US version comes with either a NACS connector (direct fit for Tesla) or a J1772 connector (Tesla requires its own adapter). Both options work perfectly with Tesla, BYD, Hyundai, Kia, and all other EVs.
Can I mount this Wallbox EV Charger outdoors?
Yes. This Wallbox EV Charger has an IP54-rated control box and IP67-rated connector, making it fully weatherproof for outdoor installation in rain, snow, or sun.
How do I check charging energy? Does it support billing?
The APP and screen records energy (kWh) and duration for each charging session. However, this product does not have a built-in billing system (no backend payment function).
What other EV charging equipment do you offer?
Our full line of EV charging equipment includes AC charging station (7kW-22kW), Wallbox EV Charger (residential and commercial), Level 2 AC charger with OCPP, and DC Charging Station (30kW-360kW). Tell us your project needs and we will recommend the right model.
