Maximum Power: 7KW/11KW/22KW Functions: Bluetooth, RFID, App control Connector: Type2 Voltage: 230V AC+10% / 400V AC+10% RCD Type: Type A / Type A 30mA AC+6mA DC Mounting Options: Wall-Mounted/Pole-Mounted Application: Indoor & outdoor Weight: 6~8kg Full Protection ODM&OEM Available

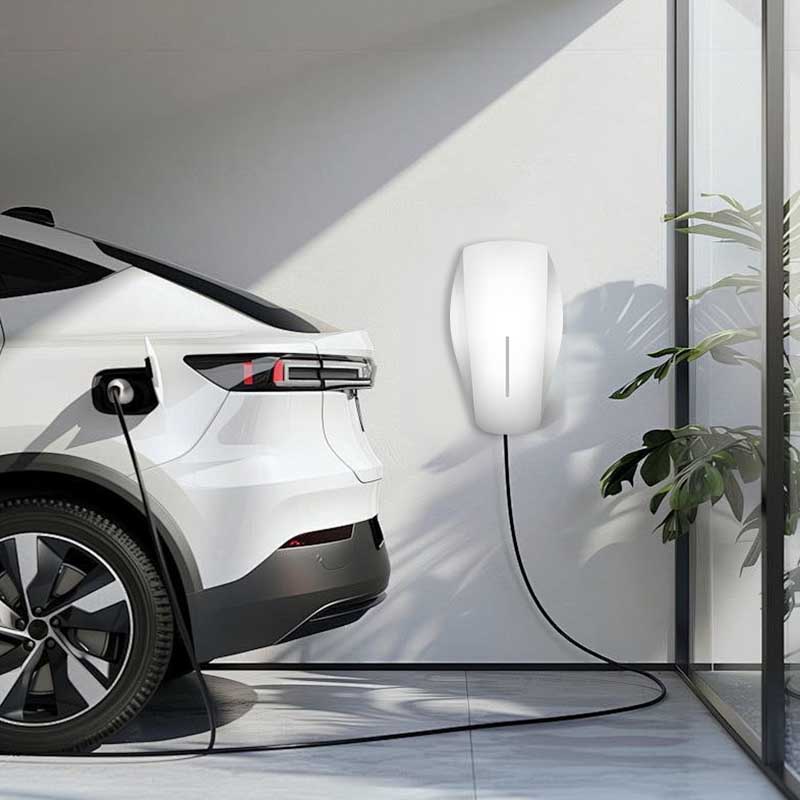

The Waizida EV charging station provides reliable, smart, and efficient charging for EV owners. With flexible power options and advanced intelligent features, it is suitable for both residential and commercial charging applications. Supports 7kW, 11kW, and 22kW power levels, suitable for both everyday home use and high-power public applications.

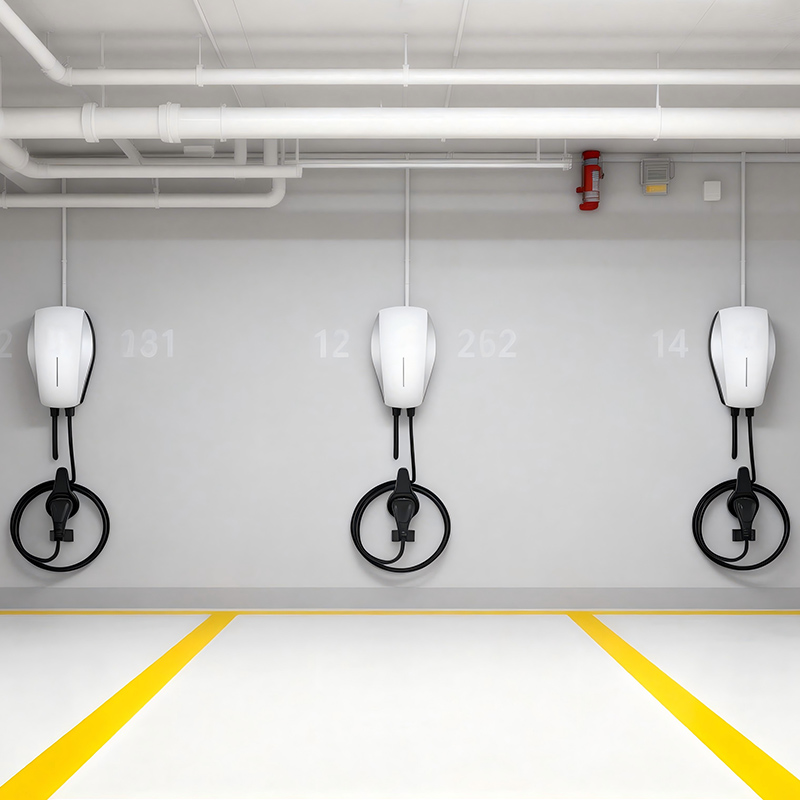

Flexible Installation Options:

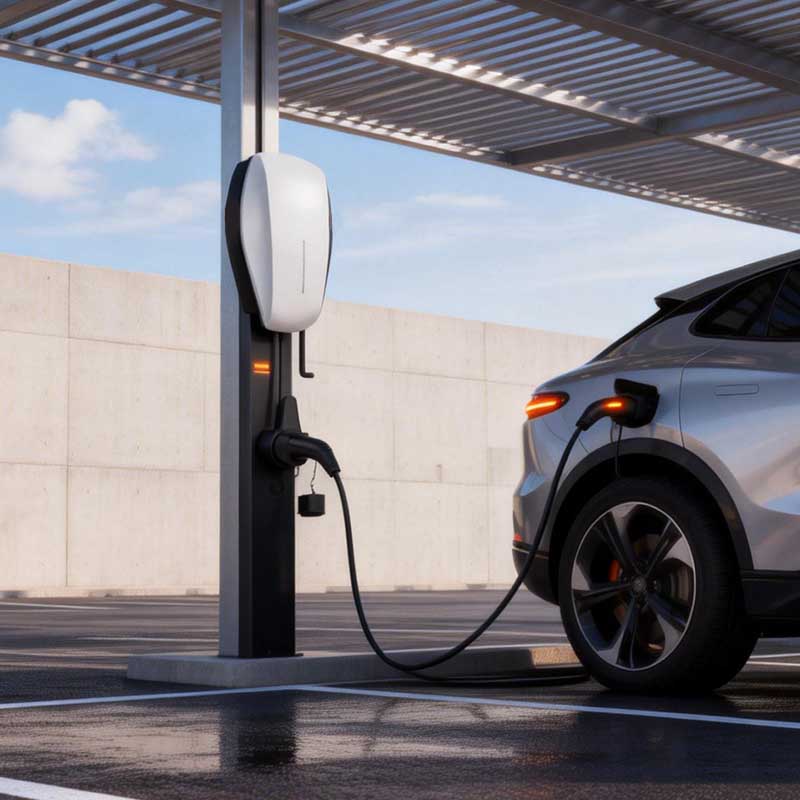

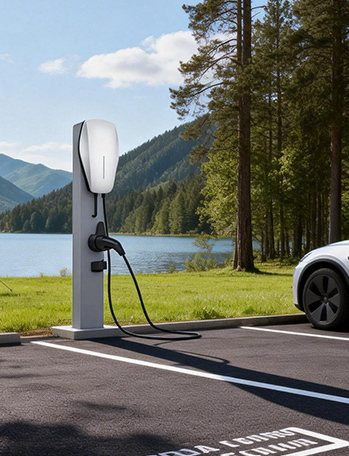

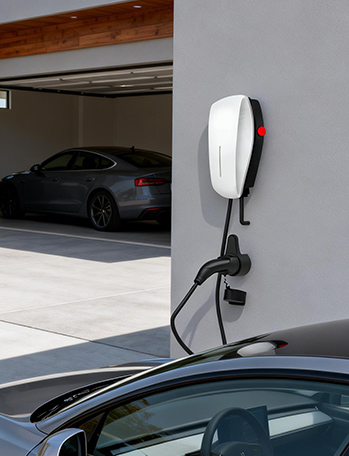

Wall / Pole
the station adapts to diverse infrastructure requirements and spatial constraints.
Cost-Effective: Waizida Model C2 delivers fast, reliable power while maintaining a highly competitive price, achieving the optimal balance between performance and cost.

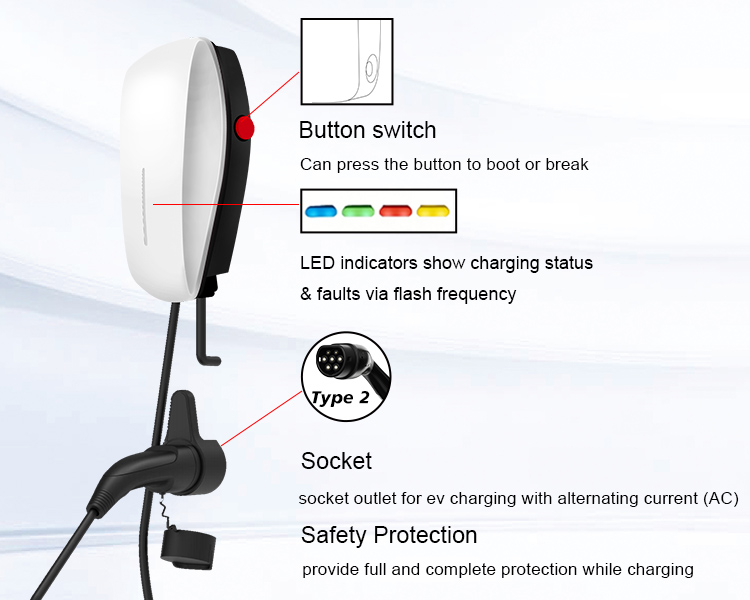

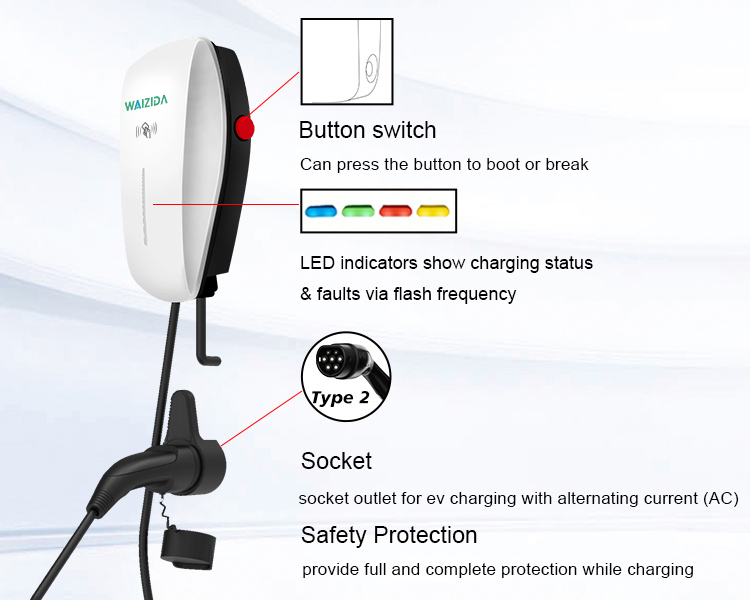

The LED indicators provide clear, at-a-glance status updates day or night. An intuitive flashing pattern immediately communicates charging progress and alerts you to any issues.

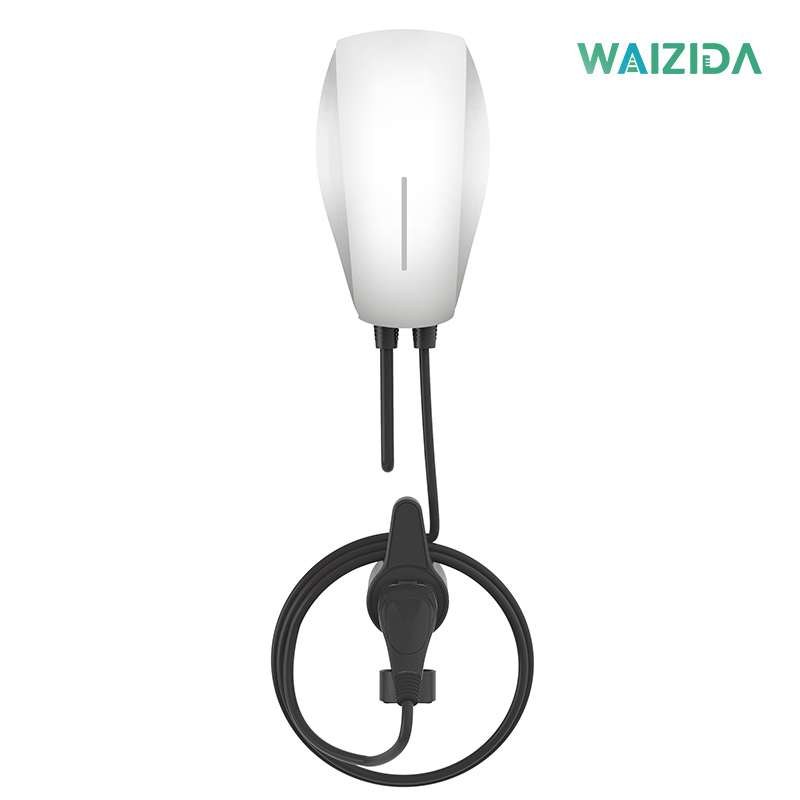

Basic Version

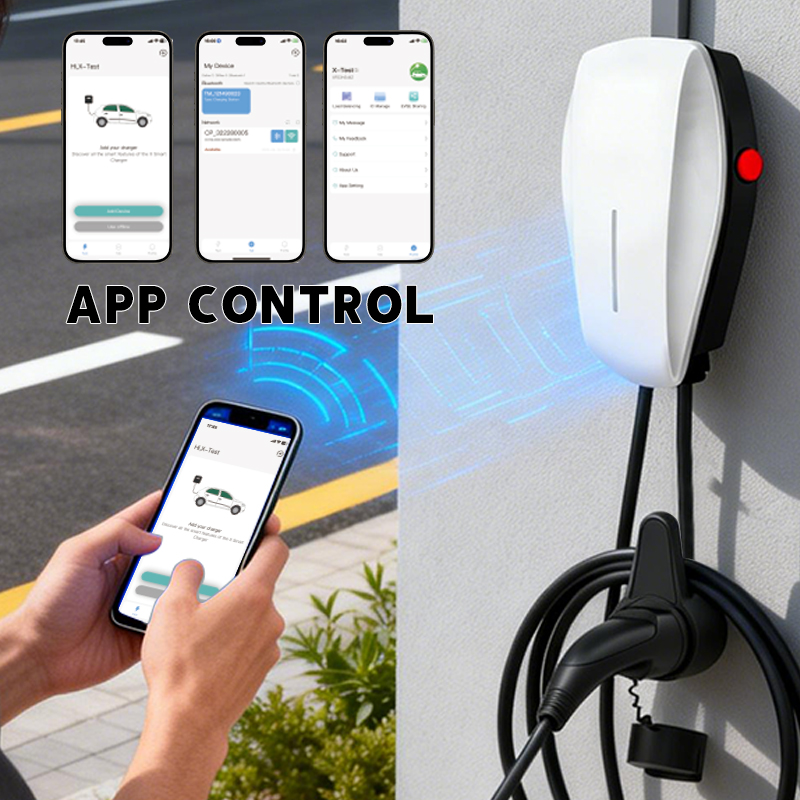

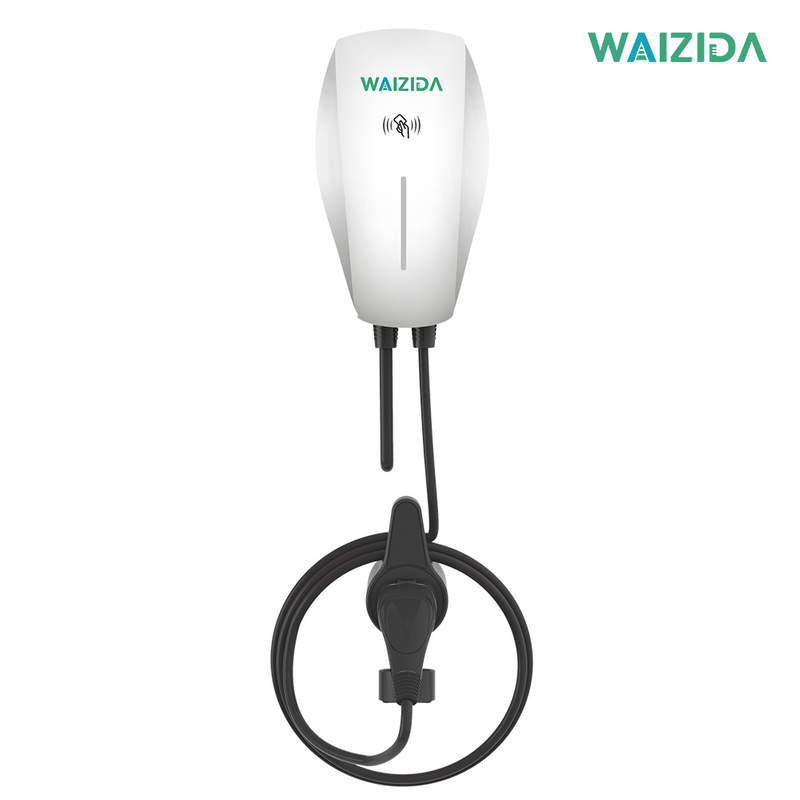

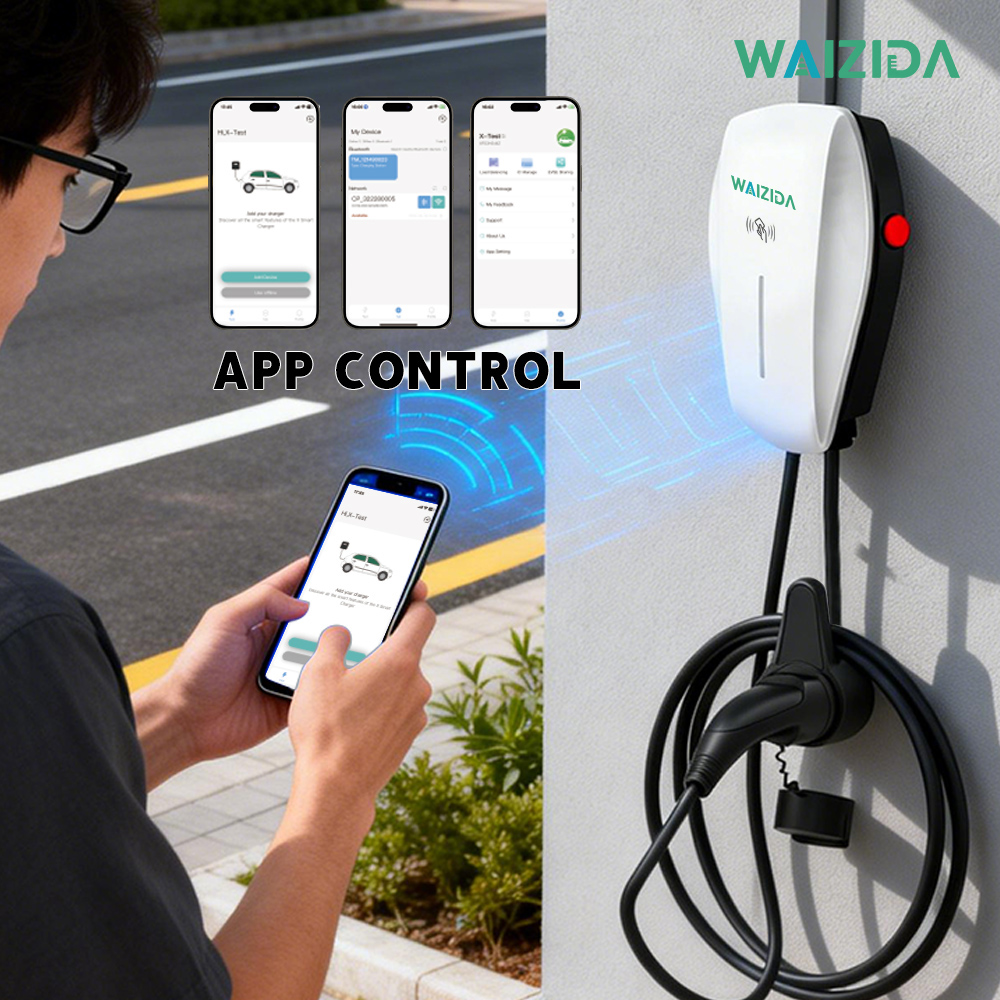

Support Bluetooth, with APP control. Control your smart wall box through one App by Bluetooth, WIFI, enabling scheduling, charging control, reservations, and access to charging history. or a simple charging via RFID card with no apps or settings. Just swipe the card to start and end charging for home use
Specification
Model
Model C2
Electrical Properties
Voltage
230V AC ±20%
380V AC ±20%
380V AC ±20%
Output Current
32A
16A
32A
Frequency
50/60Hz
50/60Hz
50/60Hz
Output Power
7kw
11kw
22kw
Residual current protection
Type A +6mA DC
Design
Interface
LED Indicator Lamp
Charging Outlet
5M charging cable with type 2
Power incoming line
1M
Housing Material
PC+ABS (-20℃ to 50℃)
Installation Method
Wall-mount/ Pole-mounted
Safety
Safety Protection
Emergency Stop/ Over Voltage Protection/ Under Voltage Protection/Over Current Protection/ Leakage Current Protection/ Ground Protection/Over Temperature Protection/ Short-circuit Protection/ Lightning Protection

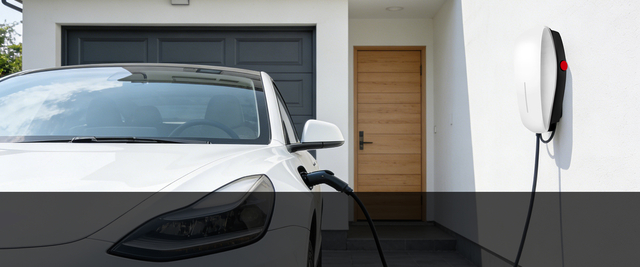

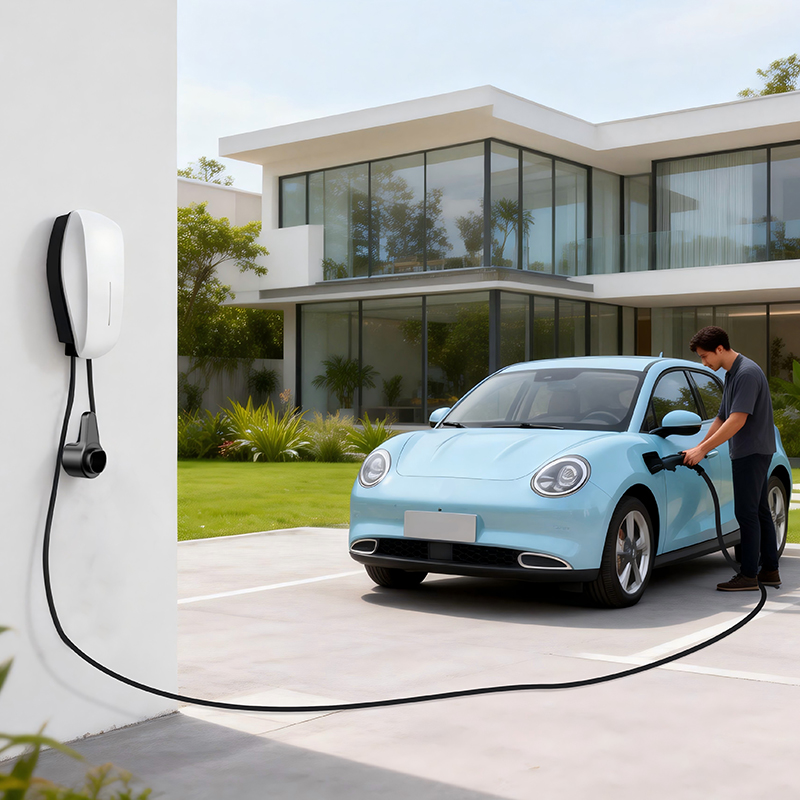

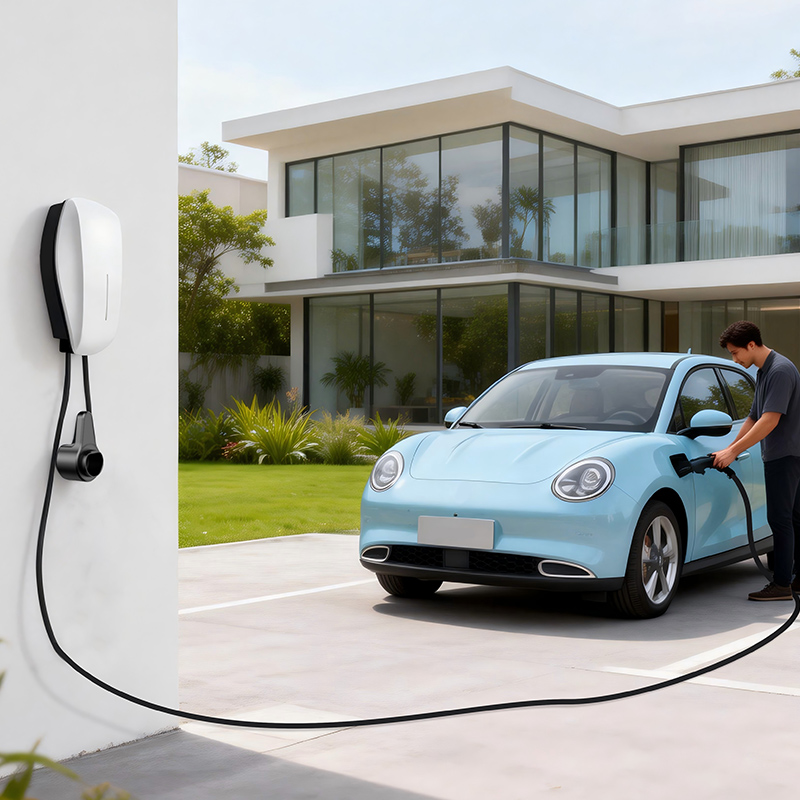

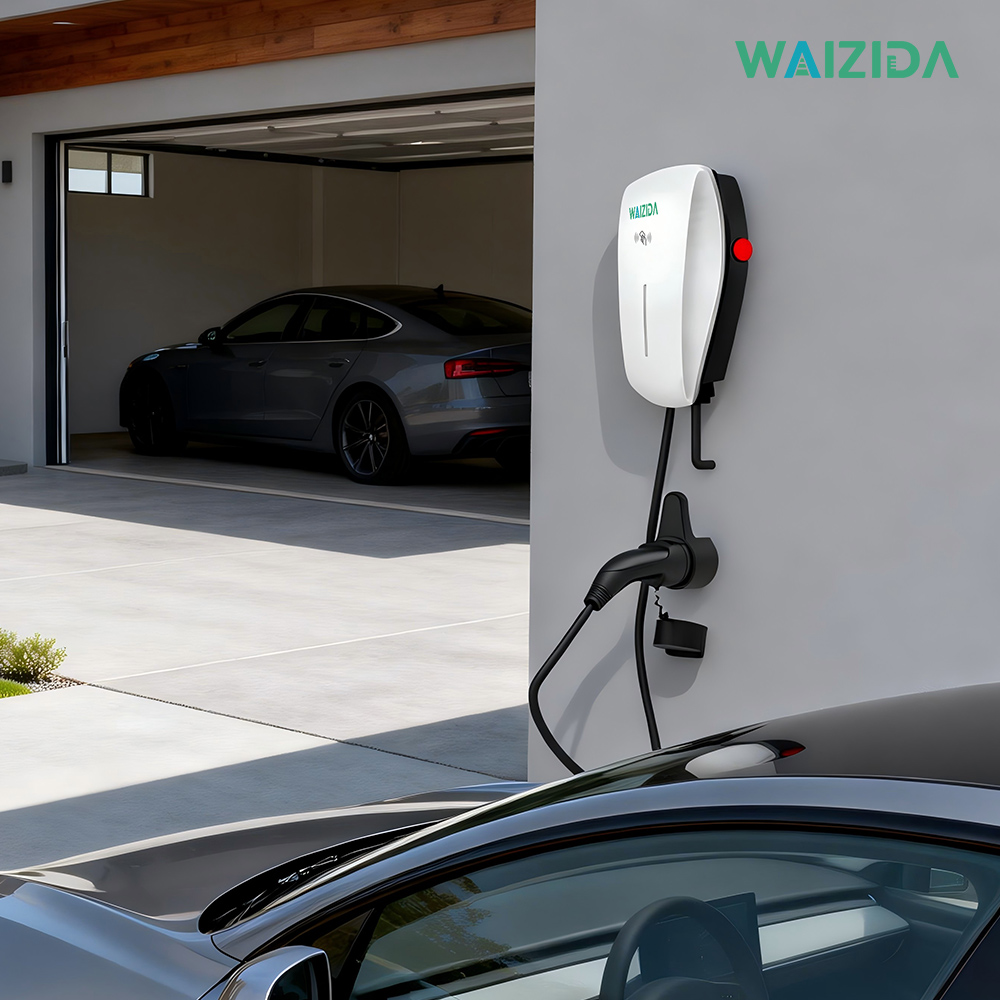

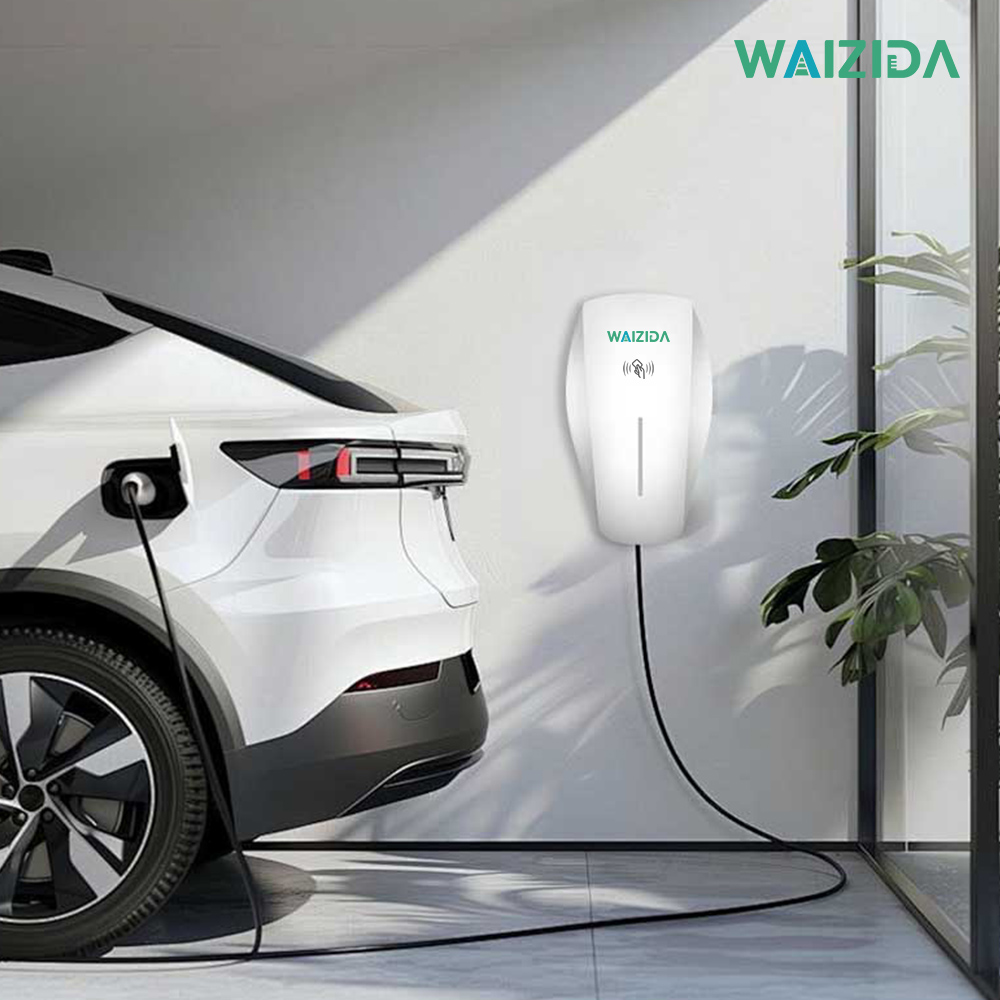

Enjoy effortless charging at home, wake up every morning to a full charge, without ever visiting a public station.
With Smart Charge Scheduling, you can effortlessly capitalize on lower off-peak rates. Just set it and forget it—your vehicle charges automatically at the most cost-effective times, optimizing your home power usage.
FAQs
What types of charging stations do you primarily produce?
We offer a full range of AC (Altemating Current) charging stations and DC (Direct Curent) charging stations
What types of charging plugs can you available?
Typel/Type2/GBT/Tesla
Is it possible to remotely control the start and stop of the charging station and check the charging progress via a mobile phone?
Support. Through the accompanying intelligent APP, functions such as remote start/stop, charging reservation,battery level statistics, and fault alerts can be achieved; at the same time, it supports near-field Bluetoothcontrol, and can be used normally even without an internet connection.
Can I use the EV charger to charge in rainy days?
OK. Our charging stations have all undergone professional testing and are equipped with water-proof anddust-proof functions. During charging, make sure that the charging gun plug is tightly connected to thevehicle interface to prevent water from seeping in. In case of thunderstorms, it is recommended to suspend outdoor charging
How is your after-sales service?
We offer a two-year warranty and online remote technical support
