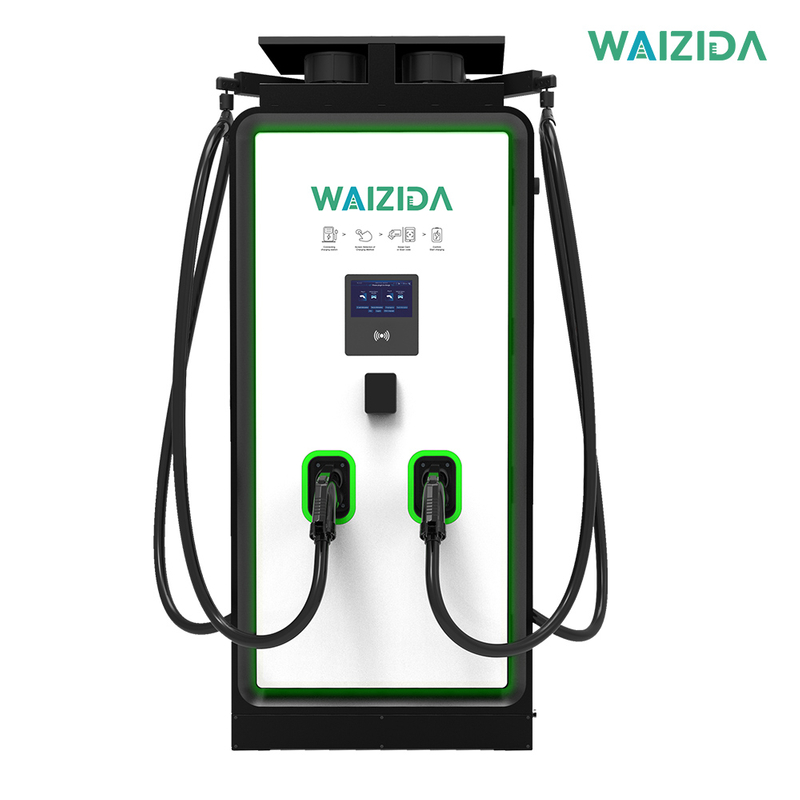

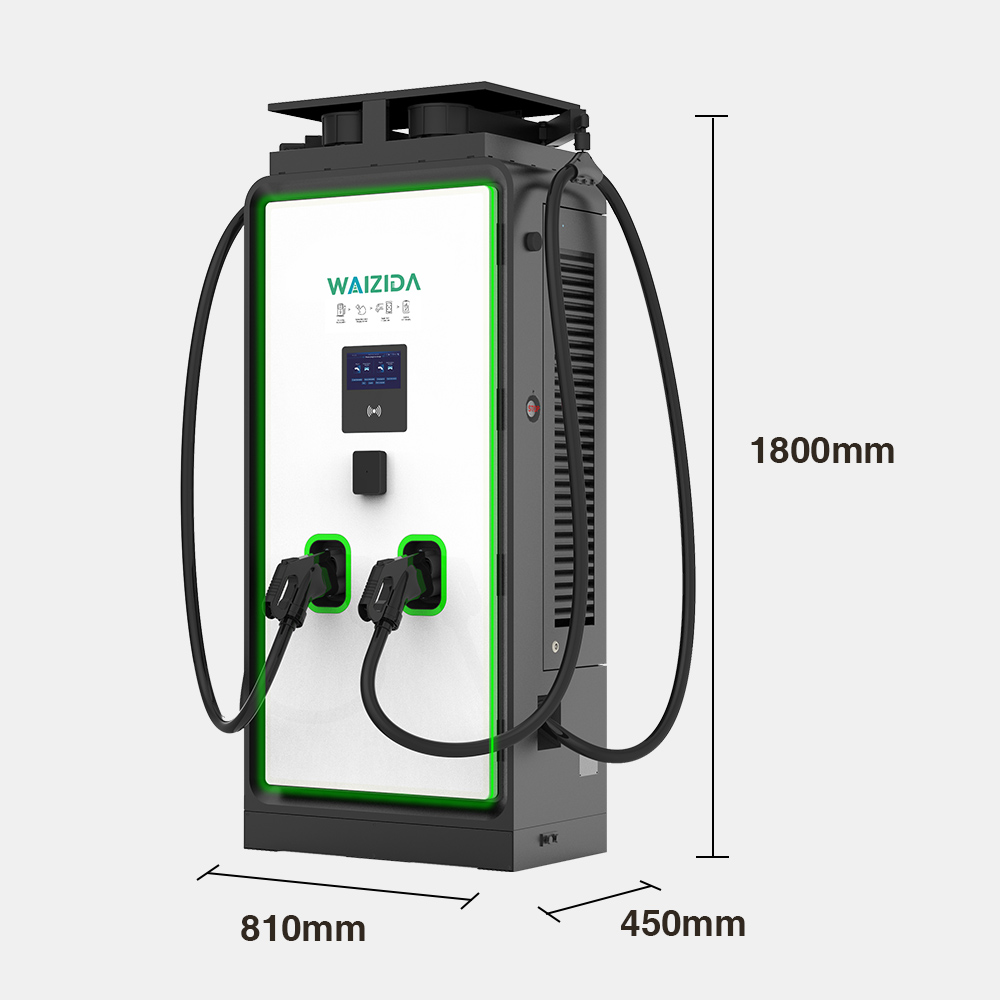

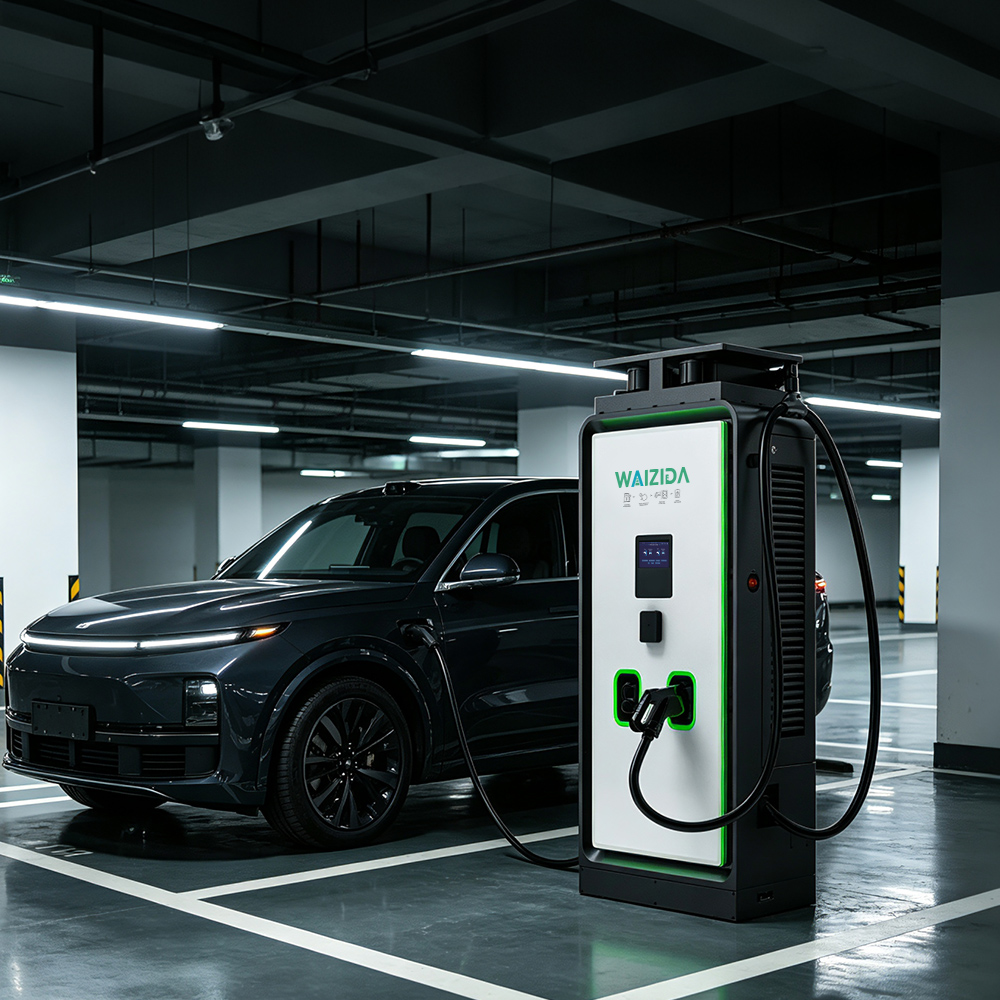

WAIZIDA Model D2A EV Charging Station

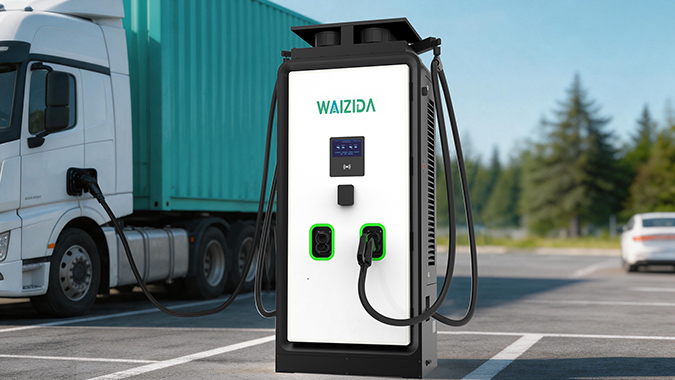

The WAIZIDA Model D6 EV Charging Station is a purpose-built, high-power floor-mounted DC fast EV charging solution engineered exclusively for commercial charging scenarios. Designed to meet the demands of high-traffic, high-utilization environments, this industry-leading charger delivers reliable, ultra-fast charging performance that minimizes driver wait times and maximizes revenue potential for business operators.

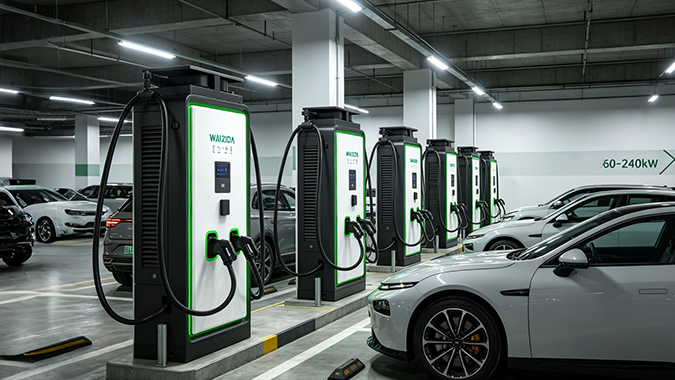

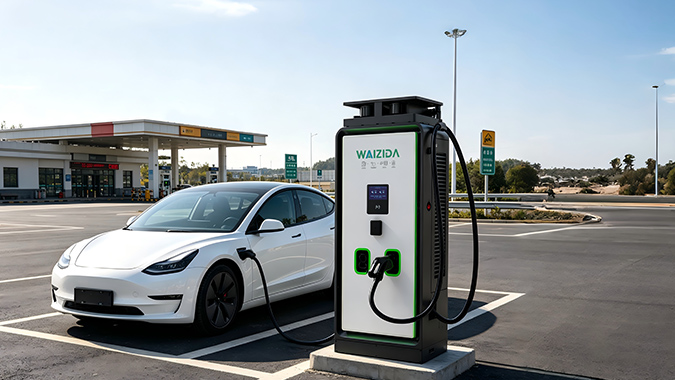

Available in configurable power levels ranging from 60kW to 240kW, the Model D3 aligns with both European and American electrical standards, making it a versatile choice for global deployment across urban charging networks, highway service hubs, logistics parks, and fleet operation centers. Built with industrial-grade durability and intelligent operational features, it addresses the core needs of commercial operators seeking scalable, low-maintenance EV charging infrastructure.

Core Technical Specifications & Global Compatibility

Robust Electrical Performance for Commercial Demands

2.1 Robust Electrical Performance for Commercial Demands Integrated Joystick Arm Cable Management for Effortless Charging

DC fast-charging cables are heavy, thick, and hard to handle — a real burden for drivers at busy public sites, and a constant source of cable wear, tripping hazards, and maintenance cost for operators. The WAIZIDA Model D2A solves this at the source with an integrated joystick arm cable management system, built directly into the charger as a standard feature.

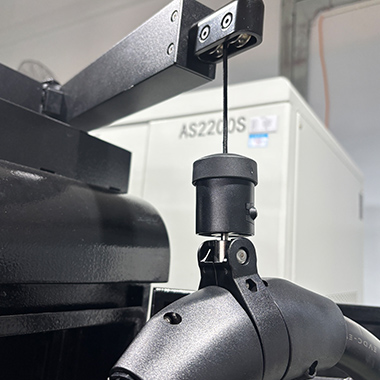

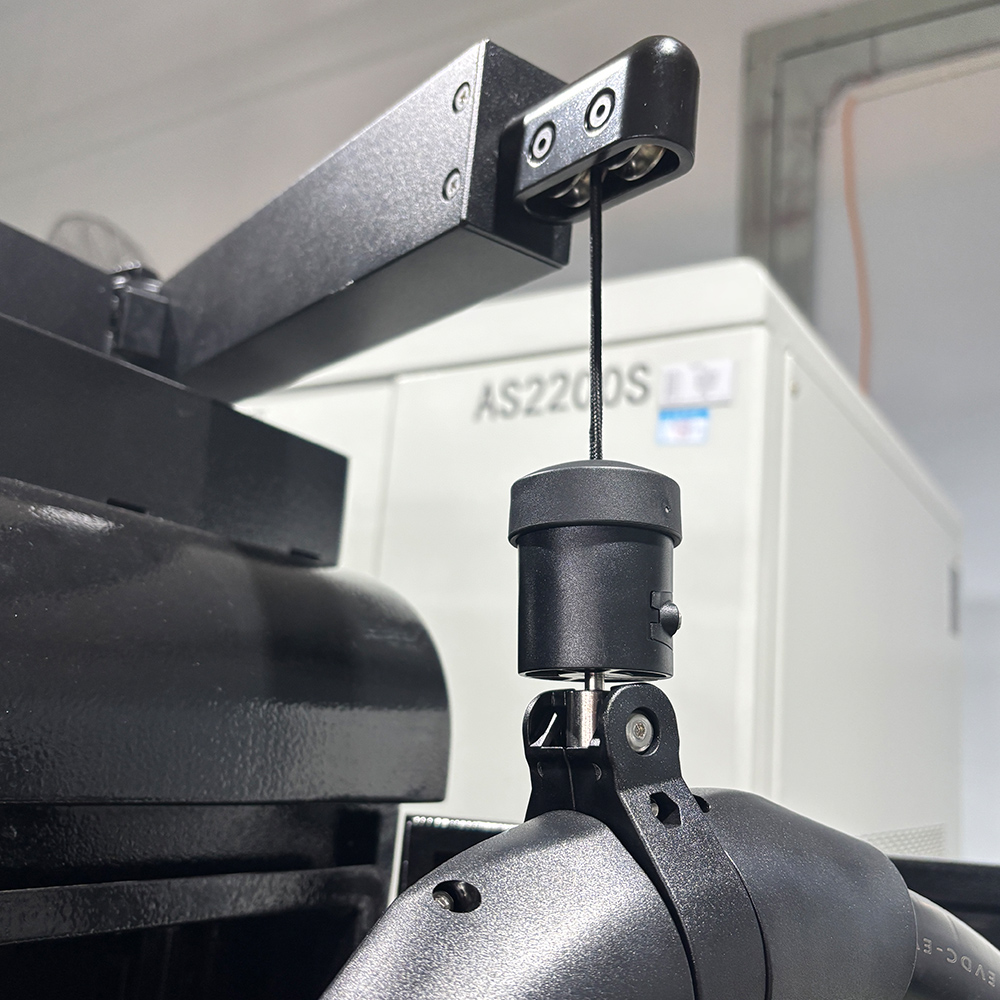

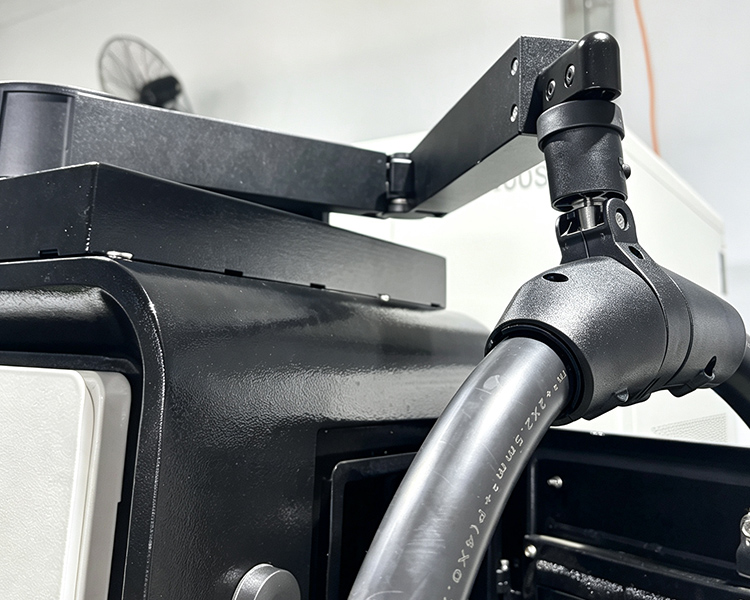

The articulated joystick arm supports the full weight of the charging cable and connector, keeping them suspended off the ground at all times. To charge, the driver simply guides the arm toward the vehicle — no heavy lifting required. The arm's wide, pivoting reach comfortably serves charging ports located at the front, side, or rear of the vehicle, while a gentle pull extends the cable and a slow, controlled release returns it smoothly to its holstered position when charging is complete.

Key benefits for your site:

Effortless handling & better accessibility— The arm carries the cable's weight, so every driver — regardless of age or physical ability — can plug in easily, improving user experience and station reputation.

Controlled, wide reach— The articulated design extends to front, side, and rear vehicle ports with minimal effort, accommodating more parking layouts and vehicle types.

Damage prevention & lower maintenance — By keeping the cable suspended, dragging, twisting, kinking, and connector strain are eliminated, extending cable life and reducing replacement and downtime costs.

Zero floor obstacles & safer sites— No cables lying across parking bays means no tripping hazards and no cables run over by vehicles — a cleaner, safer, more professional charging environment.

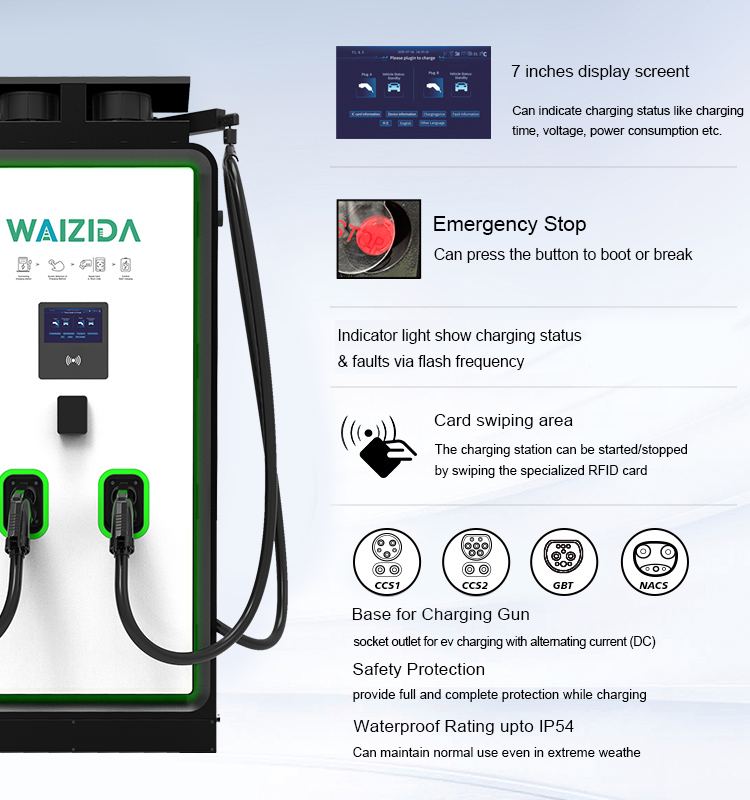

At the core of the WAIZIDA Model D2A EV Charging Station high-efficiency power system, delivering unwavering performance in even the most demanding conditions. It supports a wide output voltage range of 150V DC to 1000V DC, with standard output current up to 200A (250A optional) to match the charging requirements of modern electric passenger and commercial vehicles. The charger achieves a market-leading conversion efficiency of ≥94.5% and a power factor of ≥0.99 at over 50% load, minimizing energy waste and reducing grid impact for large-scale deployments. It operates reliably across an extreme temperature range of -40℃ to 70℃, with an IP54 waterproof and dustproof rating, ensuring uninterrupted service in harsh outdoor environments.

Global Standard Compliance & Universal Vehicle Compatibility

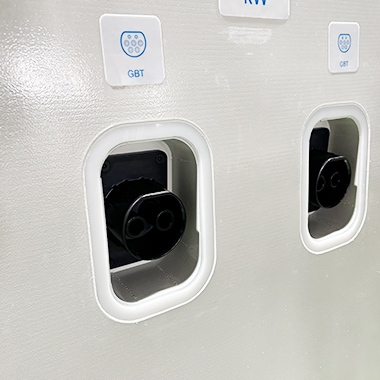

This OCPP 1.6J compliant EV charging station adheres to strict international safety and performance standards, including IEC/EN 61851-1, IEC/EN 61851-21-2, UL2202, and UL2231, with full CE and ECM certification for global market access. It supports all mainstream charging connectors, including CCS1, CCS2, GBT, and NACS, ensuring compatibility with over 99% of electric vehicle models sold in Europe, North America, and Asia-Pacific markets. This universal compatibility eliminates barriers for cross-regional deployment and ensures a seamless charging experience for all EV drivers.

Tailored Configurations for Commercial Use Cases

Basic Version for Large-Scale Charging Network Deployment

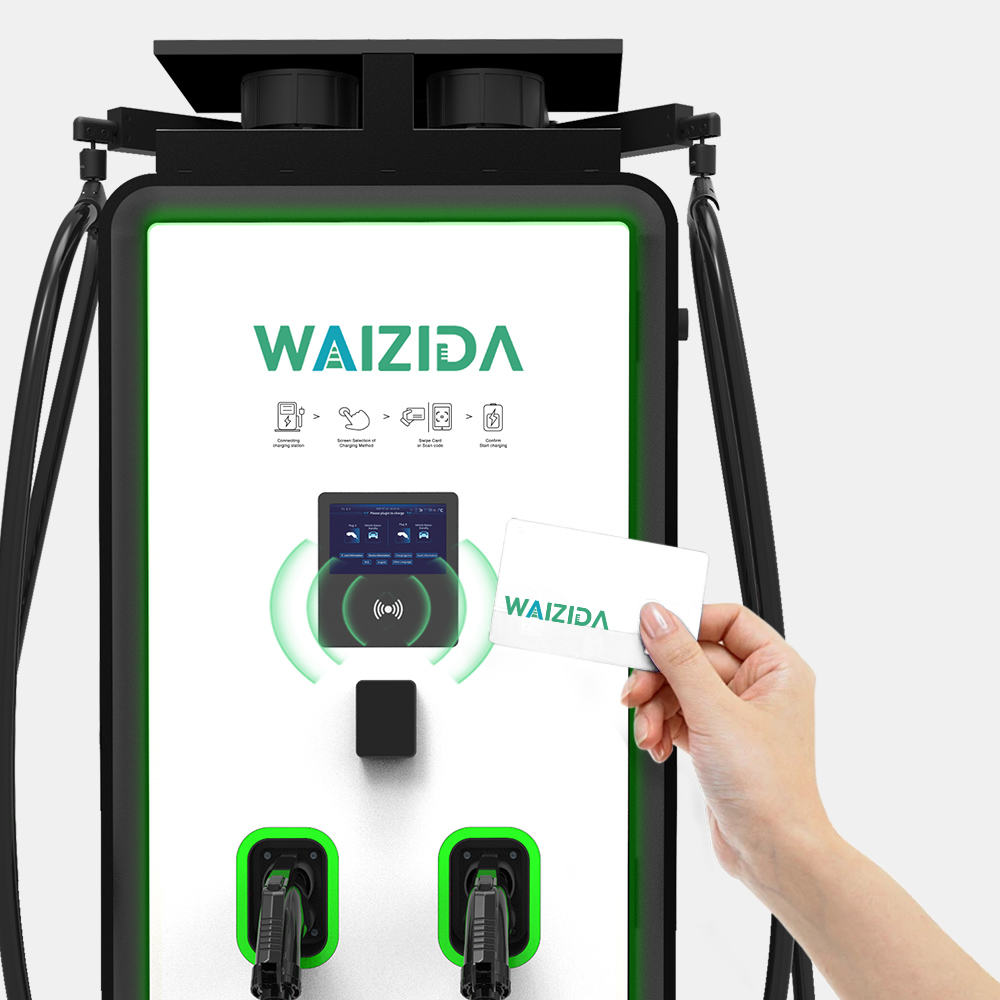

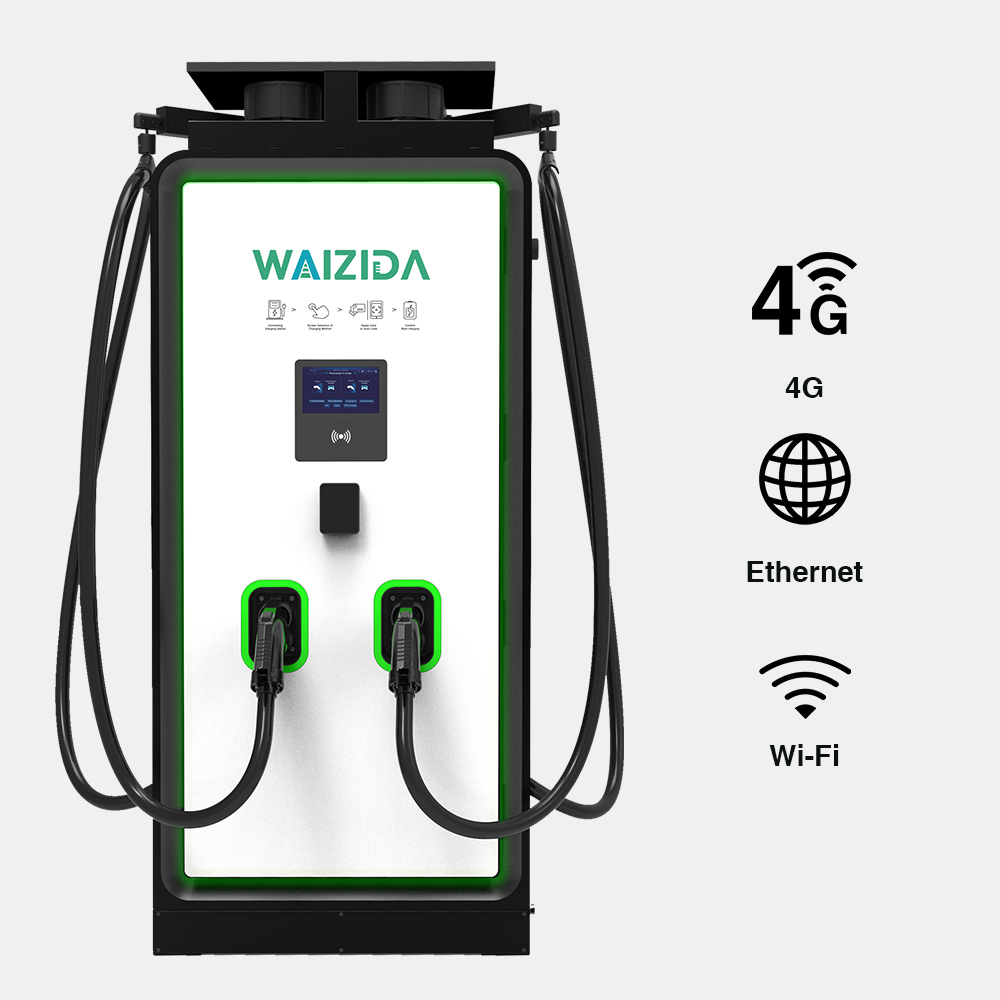

Ideal for national and regional charging network operators, this version features standard 4G and Ethernet connectivity, full OCPP 1.6J compliance, and RFID card authorization. It enables seamless remote monitoring, backend system integration, and centralized management, making it perfect for bulk deployment across urban public charging networks and highway service hubs.

POS Terminal Version for Destination Charging

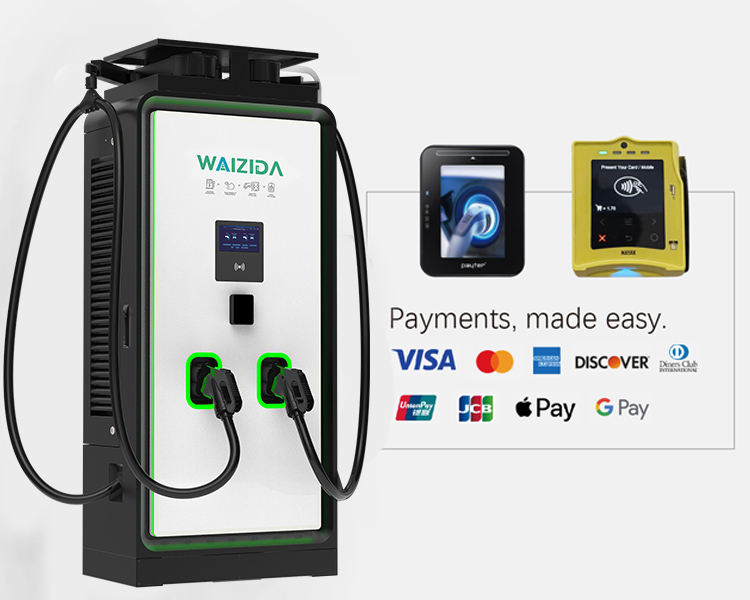

Designed for on-site payment scenarios including hotels, retail parks, and tourist destinations, this version integrates a commercial-grade POS terminal with online/offline dual-mode operation. It supports contactless NFC payments, chip card transactions, and QR code payments, with full OCPP integration for remote transaction monitoring, enabling instant, secure revenue collection for operators.
