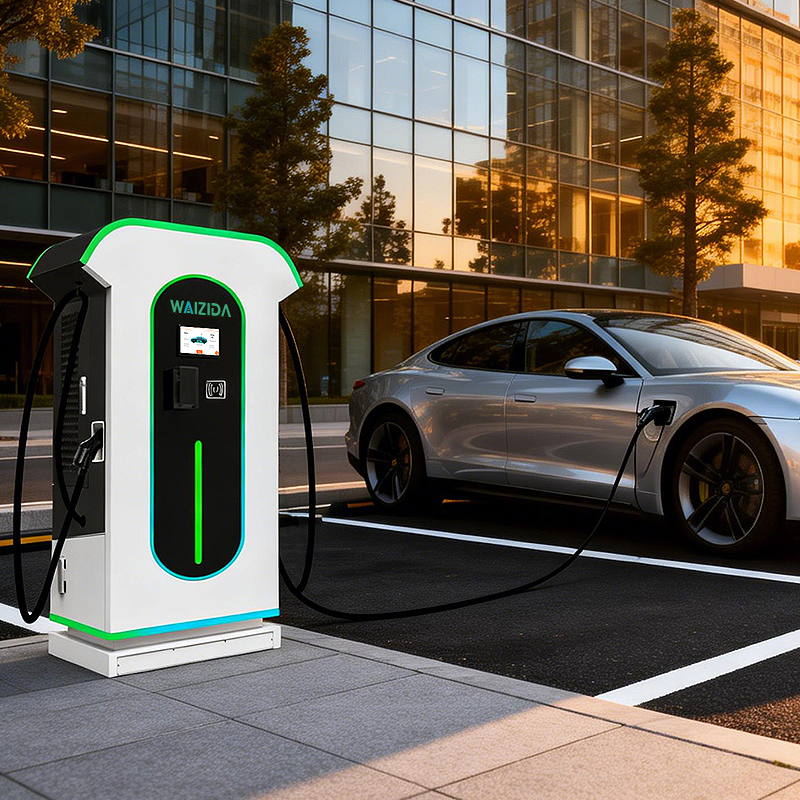

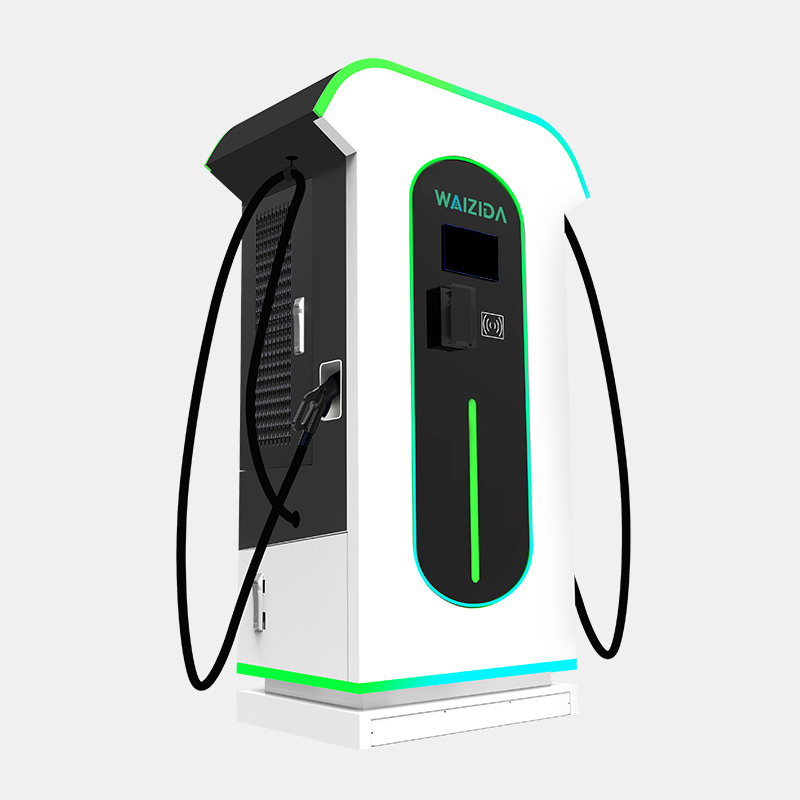

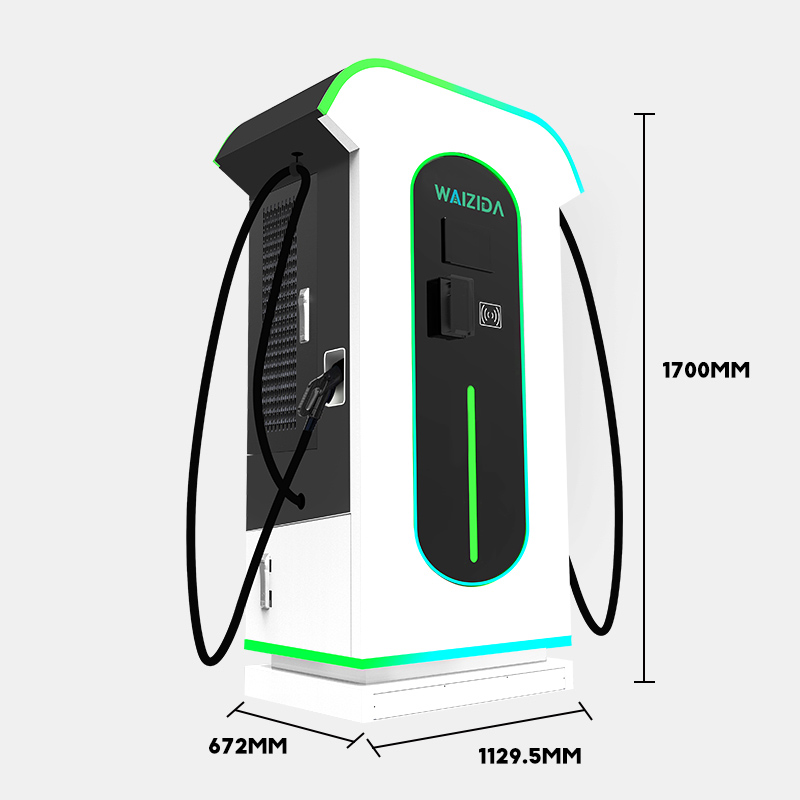

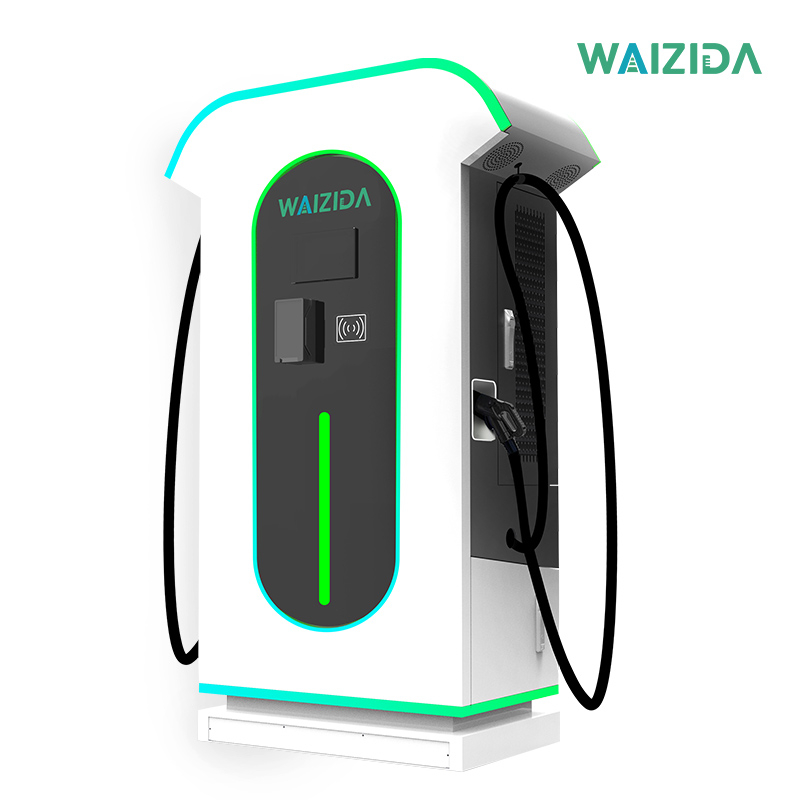

The Waizida Model D8 is a high-power, globally compatible Floor-Mounted DC fast charger designed for commercial EV charging scenarios,
available in both European and American standards.
Supports 60kW, 120kW, 180KW and 240kW power levels, suitable for highway hubs, logistics parks, and urban charging networks etc.
Scenario-adaptive configurations
Basic Version
Standard 4G + Ethernet connectivity, OCPP 1.6J compliance, and RFID authorization. Enables reliable remote monitoring and backend interoperability for commercial deployments.

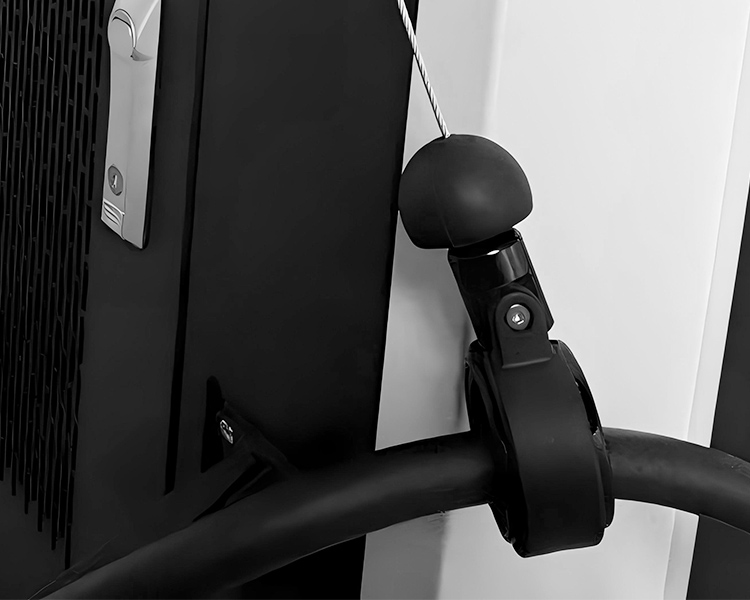

Cable Management Version
Easy operation; cables elevated to avoid trip hazards. Bend radius protection guards against insulation damage in daily use, ensuring safe routing and longer cable lifespan.

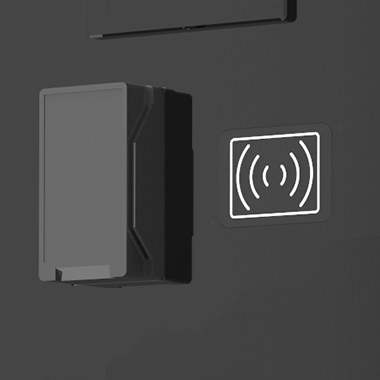

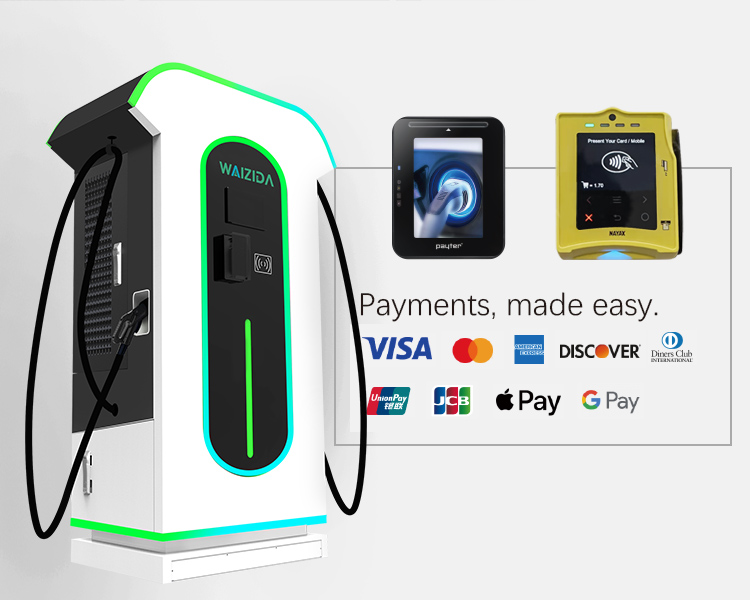

POS Version
POS terminal with online/offline dual modes; OCPP-integrated for remote transaction monitoring. Supports contactless (NFC) & chip card payments for uninterrupted service.

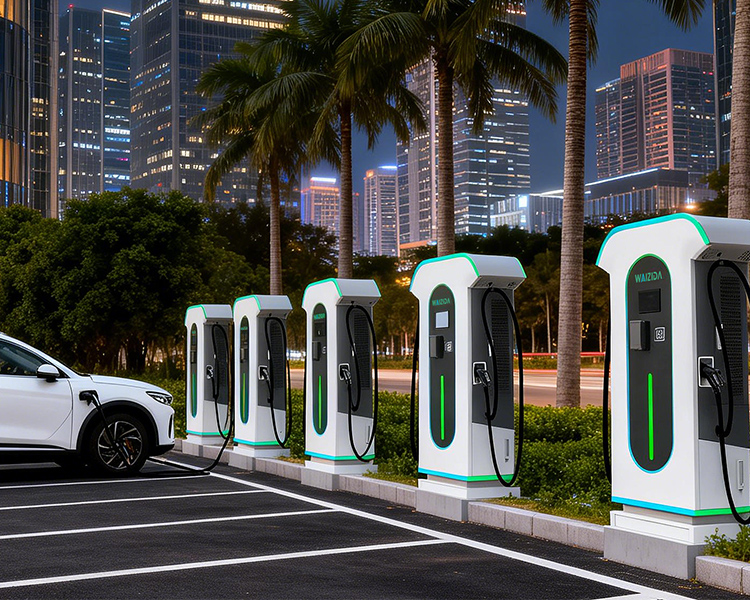

Global Charging Network Operators
Compliant with international safety standards and adaptable to urban public infrastructure construction, meeting the public's large-scale fast charging needs for new energy vehicles.
Fleet Hubs & Shared Mobility Service Centers
Dynamic power allocation and RFID authorization enable unified management of multi-vehicle simultaneous charging, improving the energy supplement efficiency of operating fleets and shared mobility vehicles.
Global Charging Network Operators
Ideal for large-scale deployment, with OCPP protocol compatibility and remote cloud management supporting efficient operation and maintenance of global charging networks.
Corporate Campuses & Fleet Operations
Dynamic power allocation supports multi-vehicle charging, with RFID and enterprise account authorization for unified fleet management.

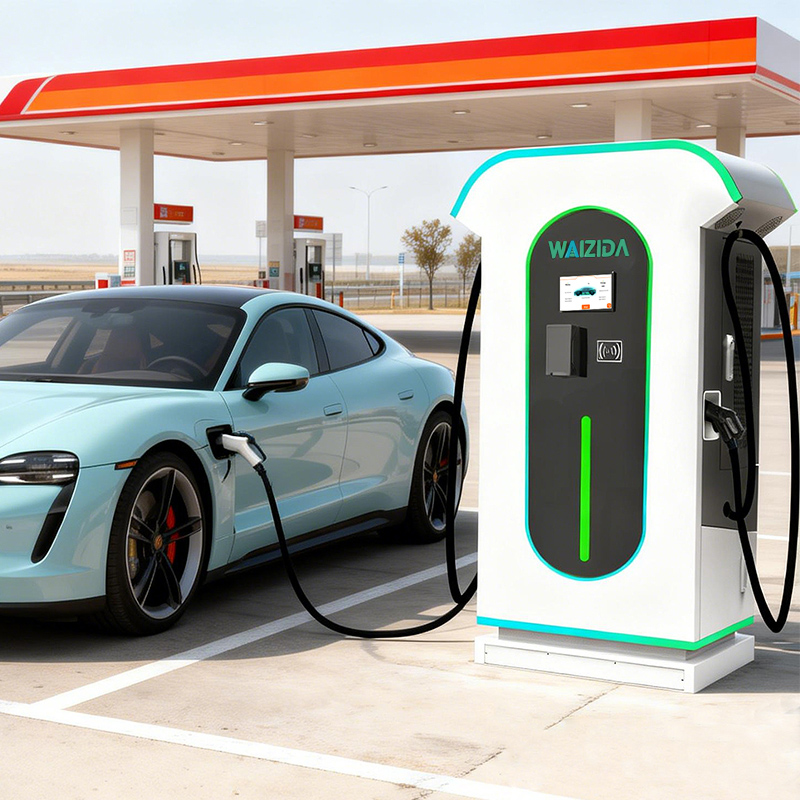

Destination Charging
Flexible charging modes (time/amount/kWh) and integrated POS terminal enable instant on-site payments, ideal for temporary top-ups.
Dynamic Load Balancing
Intelligently distributes power to optimize energy usage and adapt to site electrical infrastructure.
The WAIZIDA Model D8 is a high-performance, floor-mounted DC fast EV charger engineered exclusively for demanding commercial charging scenarios. Available in 60KW, 120KW, 180KW and 240KW power levels, this commercial DC EV charging station supports both European and American standards, making it the ideal fleet management EV charging solution for highway charging hubs, logistics parks, urban public charging networks, enterprise fleets and destination charging sites. With native support for the OCPP 1.6J compliant EV charger protocol, it delivers reliable, scalable performance for bulk deployment across global commercial charging infrastructure.
Core Technical Specifications & Global Compatibility
This 60KW to 240KW EV charger delivers stable, high-efficiency performance with a rated efficiency of ≥95%, power factor ≥0.99 at over 50% load, and total harmonic distortion ≤5% under the same load conditions. It supports a maximum output current of 250A, with input voltage options of 380V±20% (European standard) and 480V±20% (USA standard), adapting seamlessly to regional grid requirements.
Global Standard & Protocol Compliance
The Model D8 is a fully UL certified commercial EV charger, meeting international safety standards including IEC/EN 61851-1, IEC/EN 61851-21-2, UL 2202, UL 2231 and UL 2251, with ECM certification for European market access. It supports universal charging connectors including CCS2, CCS1, GBT and NACS, ensuring compatibility with most mainstream EV models across Europe and North America. The integrated OCPP 1.6J compliant EV charger protocol enables seamless integration with remote cloud management platforms, simplifying bulk operation and maintenance for charging network operators.
Tailored Configurations for Commercial Use Cases
To meet diverse operational needs, the Model D8 offers three scenario-adaptive configurations, designed to align with the unique requirements of commercial site operators and enterprise users:
Basic Version: Standard 4G + Ethernet connectivity, RFID authorization, and core remote monitoring functions, ideal for large-scale urban charging network deployment.
Cable Management Version: Industry-leading EV charger with cable management system, featuring an ergonomic retractable design that eliminates trip hazards, reduces insulation wear, and extends cable lifespan, perfect for high-traffic commercial sites.
POS Version: Integrated POS terminal with online/offline dual modes, supporting NFC, chip card and mobile payments, optimized for destination charging sites such as malls, hotels and gas stations.
Key Operational Advantages for Commercial Operators
Smart Power Management for Optimized Efficiency
The built-in dynamic load balancing EV charger system intelligently distributes power across dual charging connectors, enabling simultaneous multi-vehicle charging without performance loss. This feature adapts to existing site electrical infrastructure, reducing costly grid upgrades and lowering ongoing operational expenses for fleet managers and charging network operators.
Low-Maintenance, Durable Design
With an IP54 protection rating, wide operating temperature range of -20℃ to 55℃, and a mean time between failures (MTBF) of 100,000 hours, the Model D8 is built for 24/7 high-intensity commercial operation. It includes 13+ layers of safety protection, including over-voltage, over-temperature, short circuit and leakage protection, minimizing downtime and maintenance costs. Backed by a standard 2-year warranty and global technical support, it delivers long-term reliability for commercial charging projects of all scales.
Specification
Model
Model D8S
Electrical Properties
Output Power
60kw
90kw
120kw
Voltage（EU/ US Standard）
380V±20%(Eur. standard)
480V±20%(USA standard)
Output Current
MAX 250A
MAX 250A
MAX 250A
Frequency
50Hz±10%
50Hz±10%
50Hz±10%
Power Factor
≥0.99

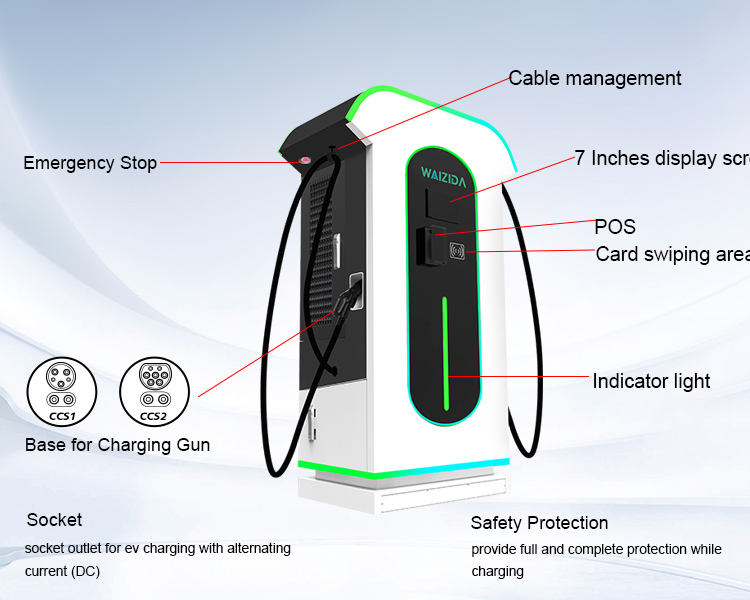

Design
Interface
7" LCD Touch Screen & LED Indicator Lamp
Charging Outlet
5M charging cable with CCS1/ CCS2/ GBT/ TESLA optional
Smooth, flexible cable movement to reduce strain on the connector and user. Lightweight design ensures easy lifting and plugging.
Retractable or Coil System
Automatic or manual retraction keeps cables off the ground, preventing wear and trip hazards. Maintains a clean, organized station appearance.
Durable Cable Support
High-quality materials resistant to bending, weather, and frequent use. Long-lasting insulation to protect against damage and short circuits.

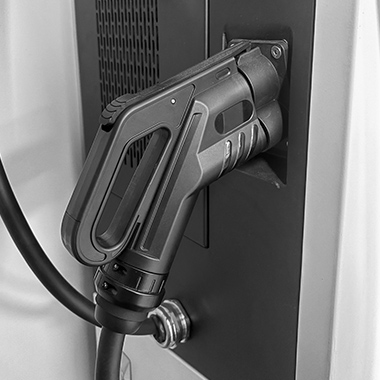

Secure Connector Holders
Designated holsters keep connectors in place when not in use. Prevents accidental falls or connector damage.
Optimized Cable Length
Enough reach for various vehicle types without excessive slack. Ensures convenience for drivers while avoiding clutter.

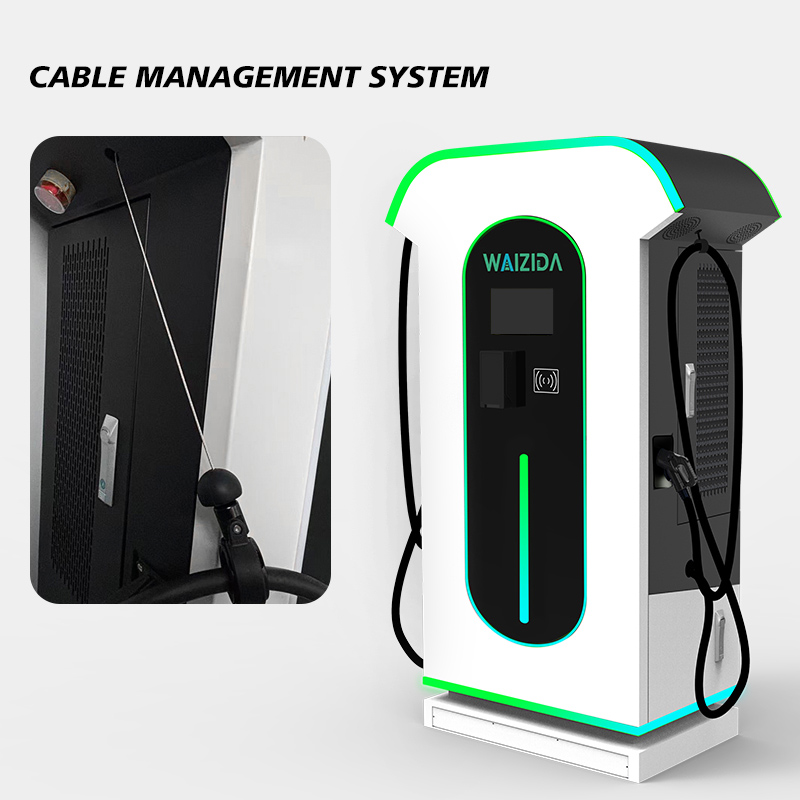

Smart
Cable Management System
View more...
Ergonomic Cable Handling
Smooth, flexible cable movement to reduce strain on the connector and user. Lightweight design ensures easy lifting and plugging.
Retractable or Coil System
Automatic or manual retraction keeps cables off the ground, preventing wear and trip hazards. Maintains a clean, organized station appearance.
Durable Cable Support
High-quality materials resistant to bending, weather, and frequent use. Long-lasting insulation to protect against damage and short circuits.
Secure Connector Holders
Designated holsters keep connectors in place when not in use. Prevents accidental falls or connector damage.
Optimized Cable Length
Enough reach for various vehicle types without excessive slack. Ensures convenience for drivers while avoiding clutter.
Smart
Cable Management System
View more...
Fast Transaction Processing
Supports quick card swipe, QR code scanning, and NFC payments. Ideal for high-traffic merchants, reducing customer wait times.
Multiple Payment Methods
Compatible with bank cards, mobile payments (WeChat, Alipay, Apple Pay), and QR code payments. Meets diverse customer payment needs.
Stable DC Power Supply
Direct DC power operation ensures consistent performance. Minimizes risk of shutdowns or reboots.
High Security
Built-in encryption chip and compliance with payment security standards Protects transaction data and prevents fraud.
Durable Design
Industrial-grade materials with water, dust, and drop resistance. Suitable for malls, gas stations, and other high-intensity usage environments.
Support
NAYAX/ PAYTER/ PAX Optional
View more...
Fast Transaction Processing
Supports quick card swipe, QR code scanning, and NFC payments. Ideal for high-traffic merchants, reducing customer wait times.
Multiple Payment Methods
Compatible with bank cards, mobile payments (WeChat, Alipay, Apple Pay), and QR code payments. Meets diverse customer payment needs.
Stable DC Power Supply
Direct DC power operation ensures consistent performance. Minimizes risk of shutdowns or reboots.
High Security
Built-in encryption chip and compliance with payment security standards Protects transaction data and prevents fraud.
Durable Design
Industrial-grade materials with water, dust, and drop resistance. Suitable for malls, gas stations, and other high-intensity usage environments.
Support
NAYAX/ PAYTER/ PAX Optional
View more...
FAQs
Is the Model D8 EV Charger compatible with all-electric vehicle models?
Yes, the Model D8 EV Charger is compatible with most mainstream models in Europe and America, including Tesla, BMW, Audi, Mercedes, Hyundai, Kia and more, meeting all types of EV charging needs.
Can the charger handle peak-hour power distribution?
Yes. It features smart dynamic power distribution, supporting simultaneous charging of multiple EVs without power loss.
Why does charging stop abruptly during use?
May be caused by full battery, overheating protection or grid fluctuation. Wait 5 mins and retry; avoid repeated plugging/unplugging.
How to resolve a stuck charging connector?
AC mode: Lock and unlock your vehicle 1-2 times; DC mode: Press the E-stop button and unlock with the dedicated key.
