Residential Wallbox EV Charger: What Homeowners Should Consider Before Installation

Transitioning to an electric vehicle fundamentally changes your daily routine. Forget gas stations. The real luxury of driving electric is waking up to a fully replenished battery every single morning. However, many new drivers quickly realize that setting up a reliable home solution involves far more than simply plugging a standard cable into a nearby wall outlet.

To maximize charging efficiency, protect long-term battery health, and ensure household electrical safety, installing a dedicated high-voltage unit is the ultimate residential solution. This comprehensive guide explores everything you must critically evaluate before calling a licensed electrician. We will cover everything from assessing existing electrical panel capacity to selecting advanced software features.

Looking at the broader energy landscape, the residential charging market is undergoing a massive transformation. We are moving rapidly away from basic power delivery toward intelligent, grid-integrated energy hubs. As utility companies roll out complex Time-of-Use rates, homeowners are increasingly adopting smart systems capable of dynamic load management and future bidirectional energy flow. This industry shift means your installation must be future-proofed to handle dynamic grid pricing and advanced energy ecosystems.

Why Upgrade to a Level 2 Residential Charging Station?

Relying on the basic trickle cable provided with most cars simply does not cut it for daily commuting. Understanding the mathematical and practical differences in power delivery is the foundational step in planning your home setup.

Level 1 vs. Level 2 Charging Explained

Level 1 utilizes a standard 120-volt household outlet. While incredibly convenient because it requires zero upfront installation, this method is agonizingly slow. It typically yields only about 3 to 5 miles of range per hour. Charging a modern 250-mile battery from near empty could take well over 40 hours. Can you wait that long? Probably not. This pace is unworkable for drivers with moderate daily commutes.

In contrast, Level 2 operates on a robust 240-volt circuit. This is similar to the power demand of a heavy-duty electric dryer. Installing a dedicated AC EV charger changes the game completely. It dramatically accelerates the process, yielding between 15 and 40 miles of range per hour. You drive all day, plug in at night, and hit the road with full power by dawn.

The Long-Term Benefits of a Private Setup

Beyond raw speed, a permanent setup provides measurable long-term advantages. Consistent Level 2 power allows for optimal battery thermal management. When plugged into a high-capacity source, the vehicle draws wall power to heat or cool the battery pack in extreme temperatures. It does not drain its own internal reserves. Furthermore, real estate market data increasingly indicates that homes equipped with modern EV infrastructure hold higher appeal to prospective buyers.

Evaluating Your Home’s Electrical Panel Capacity

From an engineering perspective, the most common obstacle new owners face is discovering their home’s electrical infrastructure cannot support a continuous high-powered draw. Addressing this technical requirement early prevents unexpected budget overruns.

Do You Need a Panel Upgrade?

Before looking at hardware, look at your breaker box. An electric vehicle is classified as a continuous load device. It pulls maximum current for hours. The National Electrical Code strictly dictates that continuous loads cannot exceed 80 percent of the circuit breaker rating. Therefore, a 40-amp unit requires a dedicated 50-amp breaker. Older homes typically feature 100-amp panels, which may already be operating near maximum capacity. If adding this breaker overloads your system, an electrician will recommend a full panel upgrade.

Dynamic Load Balancing as a Smart Alternative

What if a comprehensive panel upgrade is too expensive? Dynamic Load Balancing offers a brilliant engineering workaround. A smart management module is installed inside your existing electrical panel. It utilizes current transformers to monitor the house's total energy consumption in real-time.

If the system detects high-draw appliances running simultaneously, it automatically dials down the power going to the car. Once the electric oven or HVAC cycles off, full power is restored to the vehicle. This objective technology ensures the main breaker never trips. It allows you to safely install high-speed equipment on an older 100-amp panel.

Hardwired vs. Plug-In Home EV Chargers: Which is Better?

Once your electrical capacity is verified, the next critical decision involves the physical connection method. Homeowners must choose between a unit that plugs into a heavy-duty receptacle and one that is permanently wired into the home's electrical system.

Comparison Factor	Hardwired Installation	Plug-In Receptacle
Maximum Charging Speed	Up to 48 Amps or higher	Capped at 40 Amps
Reliability & Heat Dissipation	Excellent. Eliminates a common point of failure.	Moderate. Receptacles can degrade and overheat.
Weather Resistance	Superior. Completely sealed for outdoor use.	Poor. Exposed plugs are vulnerable to rain.
Breaker Requirements	Standard breaker. Avoids nuisance tripping.	Requires an expensive Ground Fault breaker.

The Limitations of Plug-In Models

Plug-in models typically utilize a NEMA 14-50 receptacle. The primary advantage is portability. If you relocate, taking the unit with you is effortless. However, plug-in models have distinct limitations. Current electrical codes require 240-volt receptacles in garages to be protected by a Ground Fault Circuit Interrupter breaker. Because a reliable home EV charger already features built-in ground fault protection, pairing it with another sensitive breaker often causes nuisance tripping. You might wake up to an uncharged car.

Why Hardwiring is the Professional Standard

Hardwiring involves an electrician running conduit directly into the internal terminals of the unit. From a reliability standpoint, bypassing the traditional wall receptacle entirely eliminates a notorious point of failure and heat generation. It bypasses the requirement for an extra ground fault breaker, completely resolving the nuisance tripping issue. Finally, hardwiring is the superior choice for outdoor installations, offering completely sealed weather resistance.

Must-Have Features to Look for in Modern Hardware

Stop looking at basic dumb chargers. Investing in intelligent hardware provides significant data visibility and financial control over your vehicle's energy consumption. When evaluating options, match these industrial-grade specifications against your daily needs to ensure you select a truly smart wallbox charger.

Power Output and Protocol Standards

Match the hardware output to your car's onboard converter. For most single-family homes, a 7KW unit provides perfect overnight replenishment. For dual-EV households or vehicles with massive battery packs, upgrading to an 11KW or even a 22KW three-phase unit ensures rapid turnaround times. Additionally, look for hardware that supports the OCPP 1.6J protocol. This open communication standard ensures your equipment can seamlessly integrate with third-party energy management apps and future smart grid technologies.

Wi-Fi Connectivity and Off-Peak Scheduling

A connected unit interfaces directly with a smartphone application. This connectivity provides real-time monitoring of current delivery rates and historical energy usage data. Most importantly, it enables charge scheduling. Many utility companies offer Time-of-Use rate plans, where electricity is significantly cheaper during the middle of the night. You can plug your vehicle in at 5:00 PM, but program the app to delay the actual flow of electricity until midnight. Over the lifespan of the vehicle, automating this process saves thousands of dollars.

Advanced Safety and Access Control

Standard safety features are no longer enough. Ensure the unit features built-in Type A plus 6mA DC leakage protection, or integrated PEN fault protection. This advanced engineering eliminates the need for expensive external earth rods, saving significant installation costs. Furthermore, if your equipment is mounted outdoors, look for RFID card functionality. A quick swipe of an authorized RFID card prevents neighbors or strangers from stealing your electricity.

Choosing the Perfect Location for Your Setup

The physical placement of the unit requires careful logistical planning. A poorly placed charger leads to daily frustration, tripping hazards, and potential damage to expensive components.

Indoor vs. Outdoor Installations

If you have a garage, indoor installation is generally preferred. It protects the hardware from extreme temperature fluctuations and direct sunlight. Conversely, if you must mount your private charging station outdoors on a driveway pedestal, verifying the hardware's ingress protection rating is non-negotiable. Demand an IP65 rating. This industrial standard certifies that the enclosure is completely sealed against blowing rain, snow, and fine dust. Lower ratings provide only basic resistance and will fail under severe weather.

Cable Length and Management Solutions

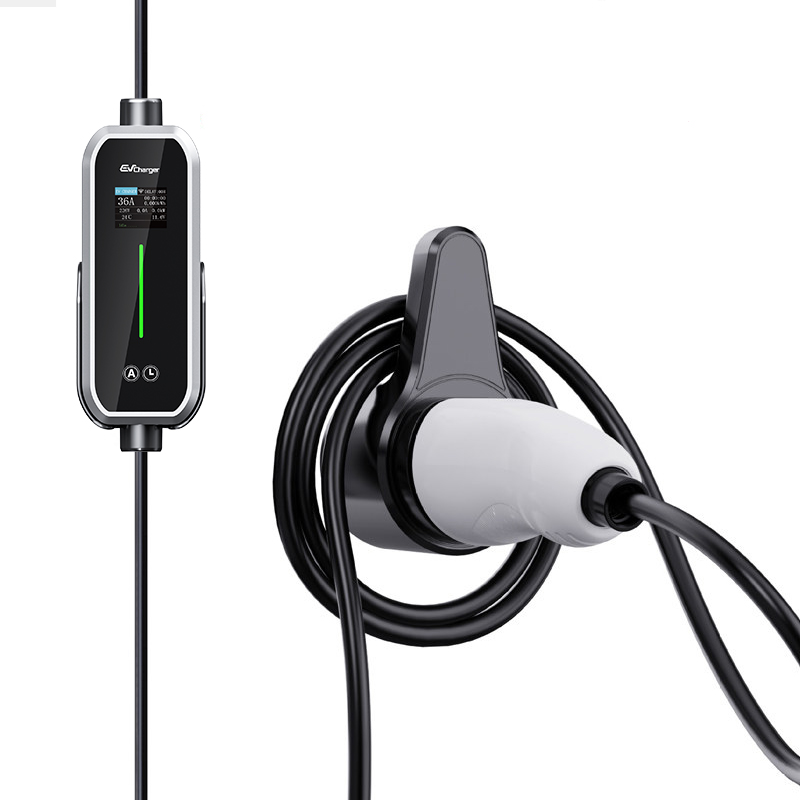

Physically measure the distance from the proposed wall site to your vehicle's charging port. Industry standards recommend selecting a unit with a cable length around 20 feet. This provides ample flexibility, allowing you to park nose-in or back-in without stretching the cord.

Proper cable management is essential for longevity. Do not leave a heavy 240-volt cable coiled loosely on the dark garage floor. Vehicle tires will crush the internal copper wiring and create a severe fire hazard. Utilize built-in cable holsters or overhead retractors to keep the cord neatly looped on the wall.

Navigating Permits, Safety Standards, and Costs

Installing high-voltage electrical equipment carries inherent physical and legal risks. Navigating the regulatory landscape ensures your installation is safe and compliant.

Why You Should Never DIY the Installation

Installing a continuous-load circuit is absolutely not a weekend DIY project. The voltage and continuous amperage required are lethal. Improperly torqued wires or using the incorrect wire gauge can easily result in thermal runaway, melting components, and catastrophic electrical fires. Always hire a licensed, bonded, and certified electrician. Failing to pull the proper local permits can completely void your homeowner's insurance policy.

Estimating the Total Cost

The total cost is divided into hardware and professional labor. A reliable smart unit equipped with Wi-Fi, load balancing capabilities, and robust safety features generally costs between $400 and $800. Labor costs are highly variable. If your electrical panel is inside the garage and has ample capacity, a simple installation might only require a few feet of conduit, costing around $300 to $600 in labor.

However, complex installations drive costs up significantly. If the electrician must run heavy-gauge copper wiring through finished basement walls or underground trenches to reach the driveway, labor and materials can easily range from $1,000 to $2,500. This is exclusive of a panel upgrade.

Investing in high-quality infrastructure transforms your driving experience. By evaluating your electrical panel, prioritizing smart features, and insisting on professional installation, you ensure a seamless daily routine. Ready to upgrade your home energy ecosystem? Explore advanced, IP65-rated smart solutions tailored for modern households at Regital New Energy, and find the perfect match for your vehicle's power demands today.

Can I use any charging unit with my specific electric vehicle?

Yes, most AC units utilize standard universal connectors. In North America, the J1772 connector is universally compatible with almost all models on the market. Owners of specific brands utilizing the NACS standard can simply use the small adapter provided with their vehicle, or opt to purchase a unit natively equipped with a NACS plug. In Europe, the Type 2 tethered or untethered connection is the absolute standard.

How much will a home setup add to my monthly electricity bill?

This depends entirely on your local utility rates and how many miles you drive each month. On average, replenishing your battery at home costs a fraction of what you would pay for traditional gasoline. Utilizing smart scheduling features to draw power exclusively during off-peak hours reduces this monthly cost even further.

How long does it take for a professional to install the equipment?

If your electrical panel has enough existing capacity and the installation location is relatively close to the breaker box, a professional electrician usually completes a standard installation in two to four hours. Complex installations requiring underground trenching or full panel upgrades will typically take a full working day.

What wire size is required for a 7KW or 11KW home installation?

Wire sizing is critical for preventing overheating. For a standard 7KW single-phase unit operating on a 32-amp continuous load, electricians typically use 8 AWG copper wire paired with a 40-amp breaker. For an 11KW three-phase unit, the current per phase is lower, often allowing for specific multi-core cables depending on local building codes. Always rely on your licensed electrician to calculate voltage drop and select the exact wire gauge.

Does Level 2 home charging degrade my EV battery faster?

No. In fact, relying on Level 2 AC power for your daily needs is the healthiest way to maintain your battery. Unlike commercial DC fast chargers, which generate massive amounts of heat and can accelerate cell degradation if used excessively, AC home charging delivers power at a steady, manageable rate. It allows the vehicle's onboard management system to perfectly balance the cells and regulate temperatures.

Do I absolutely need a Wi-Fi connection to use a smart charger?

While the hardware will still deliver continuous power to your vehicle without an active internet connection, you need Wi-Fi access to utilize its advanced digital features. A local network connection is required for setting schedules, tracking kilowatt-hour consumption, and receiving firmware updates from the manufacturer.

Is it safe to charge my EV in the rain if the unit is installed outside?

Yes, provided you purchase equipment with a high weather-resistance rating like IP65 and have it professionally hardwired. These units are specifically engineered with sealed enclosures and advanced leakage protection, making them completely safe to operate during heavy rain, sleet, or snowstorms.
