The Critical Role of Cable Management for Public and Community DC Fast Chargers

As the adoption of electric vehicles accelerates, the demand for reliable and accessible DC fast charging infrastructure in public parking lots and community garages is skyrocketing. Installing a high-power charger, however, is only half the battle. The real test of a successful installation lies in the details—specifically, how the charging cable is managed.

For operators of public hubs and residential community parking, a heavy, unwieldy DC charging cable left to drag on the ground is more than an eyesore. It presents significant safety hazards, accelerates equipment wear, and creates a frustrating user experience. Implementing a robust cable management system is no longer a luxury; it is an operational necessity.

1. The Core Challenges: Why DC Cables Need Special Attention

Unlike the lighter cables used for Level 2 (AC) charging, DC fast-charging cables are heavy, thick, and less flexible. In some ultra-fast charging applications, these cables can weigh up to 60 pounds or more . This weight creates specific challenges in public and community settings:

Physical Strain on Users: Lifting and maneuvering a heavy cable can be difficult for many drivers, particularly older adults or those with limited mobility. This can make the charging process a deterrent rather than a convenience .

Increased Risk of Damage: When dropped or dragged across pavement, these expensive cables are prone to abrasion, kinking, and internal damage. A single compromised cable can take a charging station offline for days or even weeks, leading to costly repairs and lost revenue .

Safety Hazards: Cables lying across parking bays are a significant tripping hazard for pedestrians and can be run over by vehicles, causing damage to both the cable and the vehicle .

2. Tailored Solutions for Parking Garages and Public Hubs

To address these challenges, several advanced cable management solutions are available, designed to handle the weight and high-utilization rates of DC chargers.

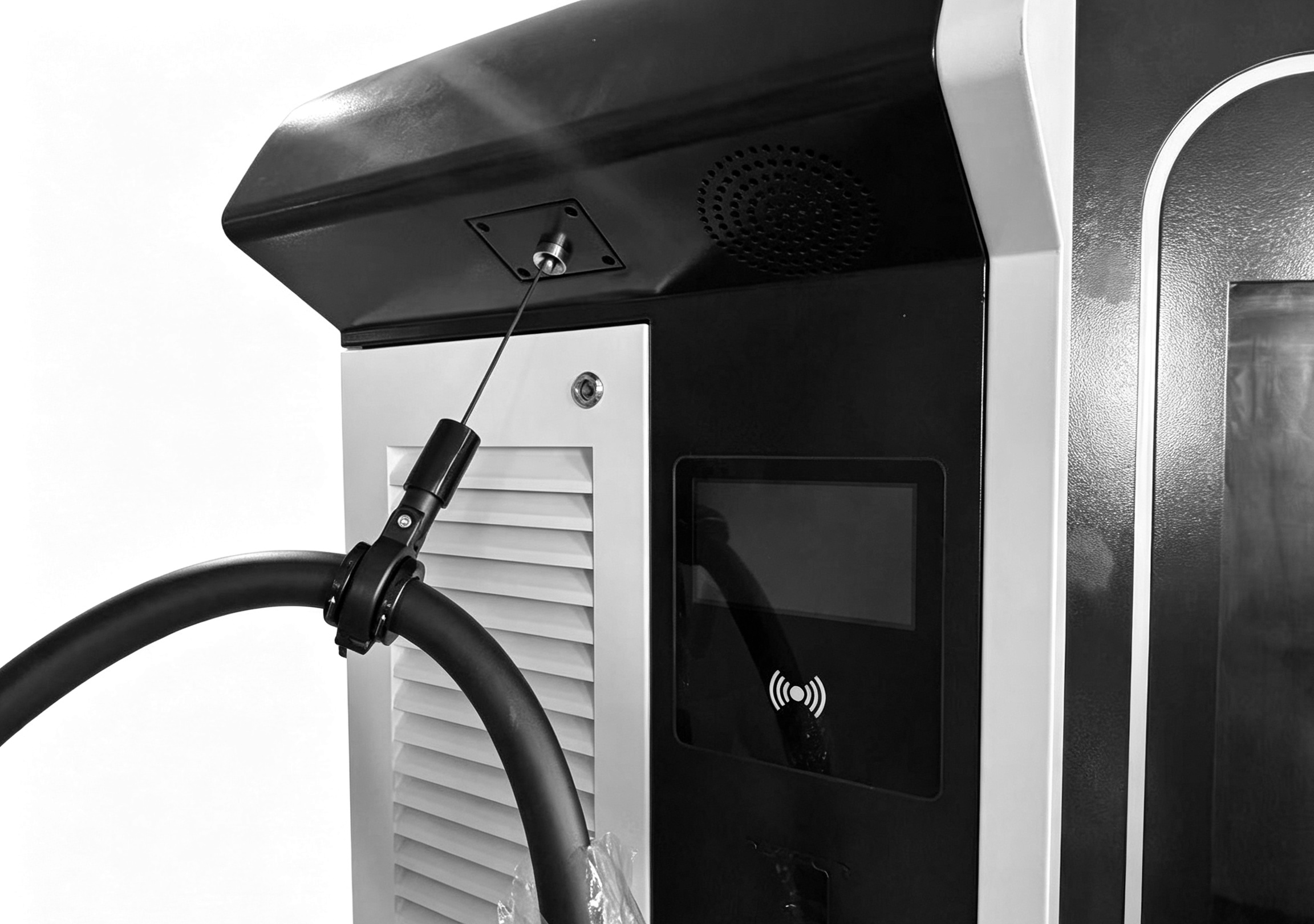

Integrated Retractable Systems
Modern DC fast chargers are increasingly incorporating advanced cable management directly into the charger unit itself. These integrated retractable systems offer a sleek,

 space-saving solution for public and community parking environments. Users simply give the cable a gentle tug to release and extend it to their vehicle's charging port. When charging is complete, another quick pull—followed by a slow, controlled release—triggers the automatic retraction mechanism, smoothly drawing the cable back into the charger housing at a safe, steady speed. This eliminates the need for external hanging hardware or ceiling-mounted equipment, while providing all the benefits of a tangle-free, off-the-ground cable—reducing wear, preventing tripping hazards, and delivering a seamless, user-friendly experience with minimal effort.

Key Benefits:

Zero Floor Obstacles: Eliminates tripping hazards and prevents vehicles from running over cables .

Optimal Space Usage: Maximizes the available parking and driving space in crowded garages .

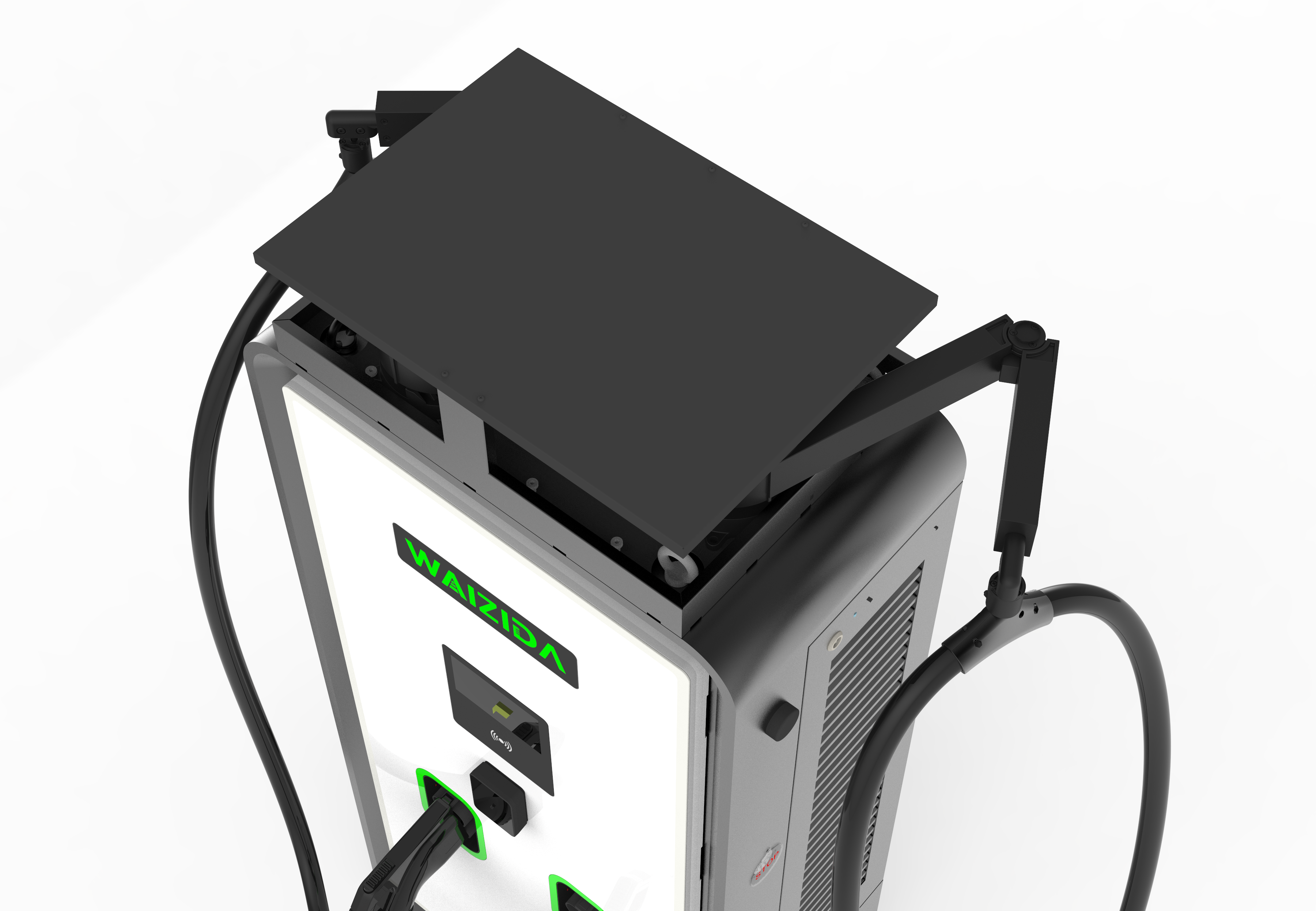

Swing Arm and Articulated Arms

For areas where ceiling mounting isn't possible, heavy-duty swing arms are a popular alternative. These mechanical arms are mounted to the charging station or a nearby structure and support the cable's weight through a system of pivots and counterbalances . Some of the latest DC chargers are even coming with these systems integrated as a standard feature .

Key Benefits:

Effortless Handling: The arm supports most of the cable's weight, allowing users to guide it smoothly to their vehicle's port without heavy lifting .

Controlled Reach: The articulated design enables the cable to reach different vehicle charging port locations (front, side, or rear) with minimal effort .

Damage Prevention: By keeping the cable suspended, it prevents dragging, twisting, and strain on the connector, extending its lifespan .

3. A Strategic Investment for Operators and Communities

Investing in a professional cable management system for your DC charging stations yields tangible returns for both operators and the communities they serve.

1. Enhanced User Experience and Accessibility
Making the charging process easy and accessible is crucial for customer satisfaction and retention. A system that removes the physical burden of handling a heavy cable ensures that all users, regardless of age or physical ability, can charge their vehicles independently and comfortably . In residential communities, this convenience is a significant amenity for residents.

2. Reduced Operational Costs and Downtime
Replacing a damaged DC charging cable is a significant expense. By protecting cables from physical wear and tear, a management system dramatically reduces maintenance frequency and replacement costs . For public stations, minimizing downtime is key to maintaining profitability and a reliable reputation.

3. Improved Site Safety and Aesthetics
A tidy, cable-free parking bay is inherently safer and projects a professional, well-maintained image . This is particularly important in residential communities where the garage is a shared living space. By containing the cable, you create a cleaner, more organized environment for everyone .

4. Future-Proofing the Installation
As technology advances, charging power and cable sizes may increase. Flexible management systems, like scalable overhead tracks or adaptable arms, can be integrated into new or existing setups, accommodating future upgrades without requiring a complete overhaul .

For public and community DC fast-charging infrastructure, success is measured by reliability and user satisfaction. A high-power charger is only as good as its usability and uptime. By integrating a purpose-built cable management system—whether a sophisticated overhead retractor or a robust swing arm—operators can protect their investment, enhance the user experience, and build a safer, more efficient charging ecosystem. This critical detail transforms a functional charging point into a truly accessible and dependable community asset.
