Views: 0 Author: Site Editor Publish Time: 2026-06-15 Origin: Site
Dual live wire technology. Single gun. Compact design. Finally, DC fast charging that works where 380V isn't available.
For most EV owners, home charging today means one of two things:
l 7kW AC charging – reliable, but painfully slow (8+ hours for a full charge)
l Public DC fast charging – fast, but requires driving out, waiting in line, and paying high rates
What if there was a third option?
A charger that is:
ü faster than AC
ü installable in standard homesü compact like a wall box
ü powerful enough for daily rapid top ups

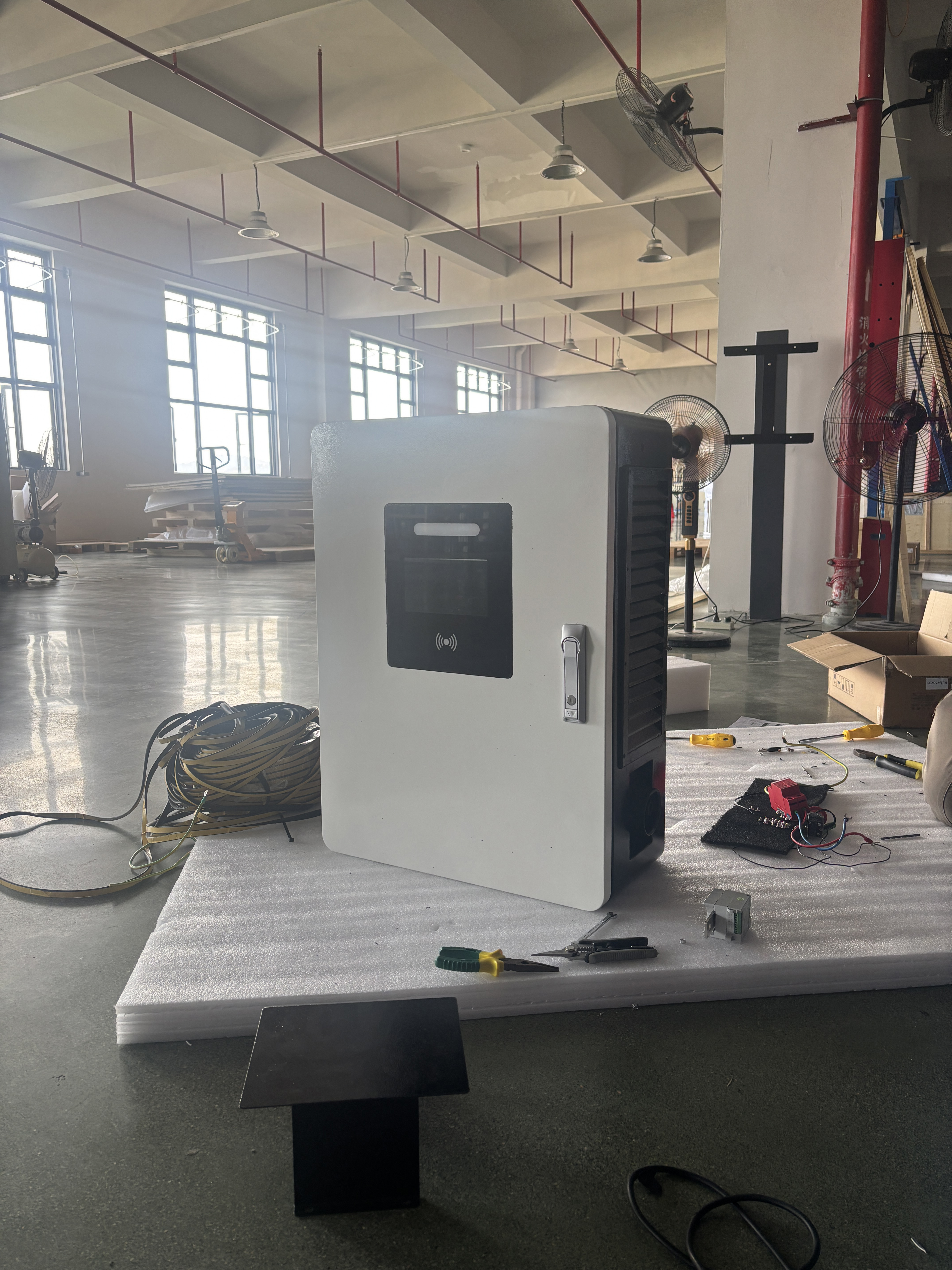

Meet the D1W 28kW Wall Mount DC Charger.
The biggest obstacle to home DC fast charging is power availability.
Most homes and apartments have 220V-240V single phase power – not the 380V three-phase required by traditional DC chargers.
D1W solves this with dual live wire architecture:
Works on standard 220V-240V single phase electricity
Delivers a full 28kW DC output
No three-phase connection needed
No expensive grid upgrades
² Ideal for houses, townhouses, older buildings, and even off grid properties with stable 220V -240V supply.
Parameter | 7kW AC (typical) | D1W 28kW DC |
Time for 60kWh battery | ~8.5 hours | ~2 hours |
Overnight charging | ✅ perfect | ✅ still works |
Daytime charging | ❌ slow | ✅ practical |
Home 220V-240V compatible | ✅ yes | ✅ yes (dual live wire) |
Unlike industrial 60kW+ chargers, D1W is purpose built for residential and small scale commercial environments.
~30% smaller than traditional DC chargers
Wall-hung, not floor standing
Thickness: ~27.5cm
IP54 rated (dust and rain resistant)
Perfect for one car households or shared family EVs
Plug & charge, RFID, or App start (optional 4G / Bluetooth)
Optimized thermal management for residential noise sensitivity
As a customization-oriented product, D1W is not a one-size-fits all charger.
We offer flexible options to match your home, fleet, or business requirements.
Customization Area | Options |
Cable length | 3m / 5m / 7m (up to 10m on request) |
Communication | 4G (cloud + OCPP), Bluetooth |
Plug standard | CCS2, CCS1, or GB/T |
Authentication | Plug & charge, RFID, App |
Color / branding | White, black+ custom logo(as option) |
Vehicle protocol | Tesla, BYD, VW, BMW, Mercedes, Hyundai, Kia, etc. |
User Type | Why D1W Makes Sense |
Homeowner with 220V power | Get DC fast charging without upgrading to 380V |
Two-EV household | One fast DC charger serves both cars efficiently |
Small business / office | Fast charging for employees or guests |
Rental property owner | Attract EV driving tenants with real fast charging |
RV / campervan owner | Rapid top ups at your home base or campsite |
Light commercial fleet (4–6 EVs) | Internal fast charging without expensive infrastructure |
Just because D1W is compact and home friendly doesn't mean we cut corners on safety.
✅ Overcurrent, overvoltage, undervoltage protection
✅ Over temperature protection
✅ Leakage protection (Type A + 6mA DC)
✅ Emergency stop button
✅ Surge protection
✅ Plug locking detection
✅ Operating temperature: -20°C to +50°C
Before D1W:
Arrive home at 6 PM with 15% battery. Plug into 7kW AC charger. Car won’t be ready until 2 AM – no flexibility for an evening trip.
With D1W:
Arrive at 6 PM with 15% battery. Plug into 28kW DC charger. By 8 PM, you’re at 80% – ready for dinner out, an emergency trip, or an early morning departure.
We support:
² OEM / ODM customization
² Private labeling
² Localization of App and cloud platform
-------------------------------------------------------------------------------------------------------------------------------------------------
Is D1W Right for Your Home or Business?
We don’t believe in selling a charger without understanding your power situation.
Visit our product page for full specifications and installation guides.
Use our compatibility check tool – tell us your electrical panel type, car model, and daily driving distance.
Request a quote – volume discounts available for property developers and fleet operators.
Contact us for technical datasheet, installation case studies, or to discuss your custom D1W project.
